3-Point Hitch Implements
Put your tractor to work with Bad Boy’s 3-point hitch and front loader quick-attach implements. Built from heavy-gauge, welded and fabricated steel, they’ll pull more than their weight on your property.
Choose from the menu of implements below to learn more.
Cutters
Available in 4, 5, 6, 7 & 10 Foot Widths
- Cutter Warranty:
-
Heavy-Duty Models:
TWO YEAR Warranty against manufacturer defects. FIVE YEAR Limited Warranty on Gear Boxes. -
Standard-Duty Models:
ONE YEAR Warranty against manufacturer defects. FIVE YEAR Limited Warranty on Gear Boxes.

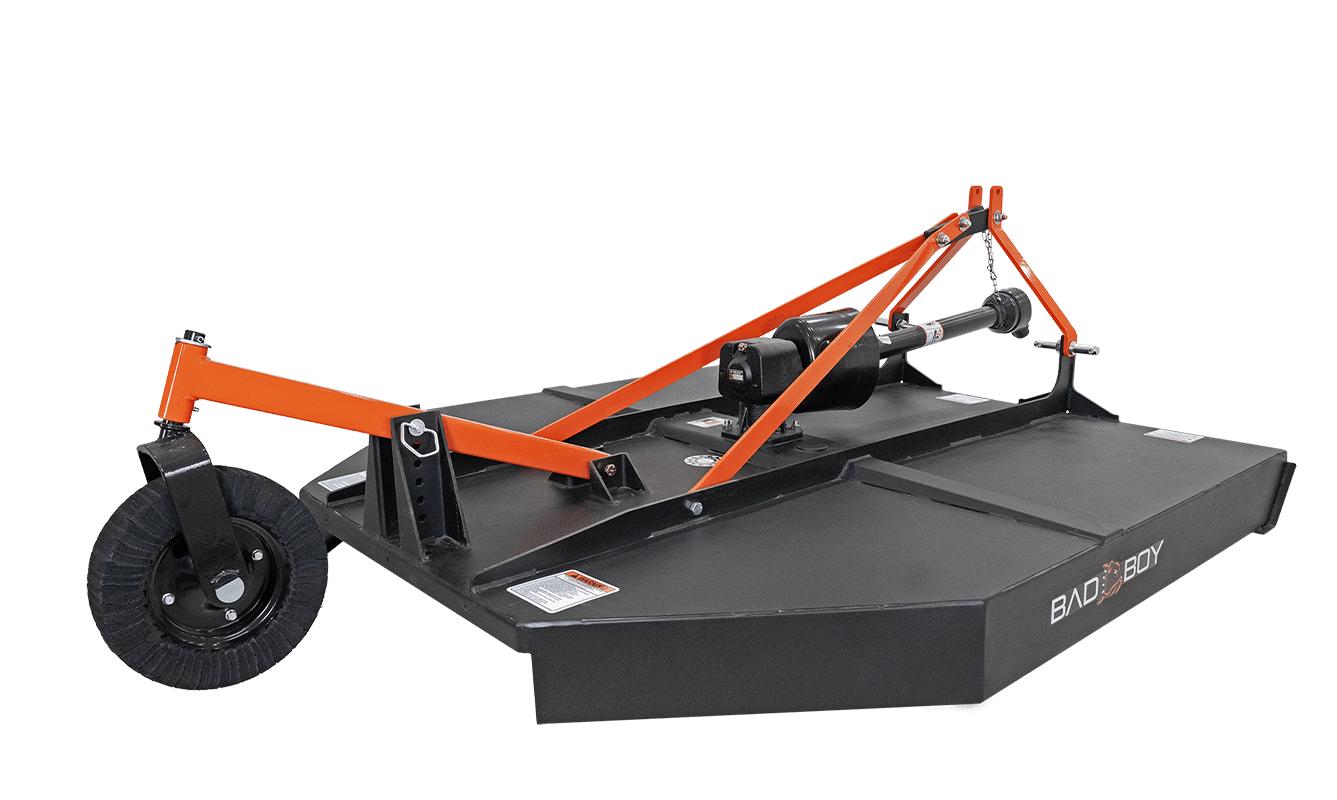

4, 5 & 6 Foot
Standard-Duty Cutter
5 & 6 Foot
Heavy-Duty Cutter
7 Foot
Heavy-Duty Cutter
10 Foot
Heavy-Duty Cutter
Engineered To Be Stronger At Every Point
Designed to shed water and built-up clippings, our heavy 10-gauge steel decks feature tail wheels that adjust with a single pin (7' has 2 pins) and provide easy tail wheel storage. Tail wheels are 4" x 15" puncture resistance and the gearbox mount features a 15 spline stump jumper.
Rotary Cutter Specifications
4' SD Cutter
- Width
- 48"
- HP Rating
- 24-40
- Side Skirt Depth
- 7"
- Blades (Thickness & Width)
- 1/2" x 3"
- Weight
- 425 lbs.
- Gear Box
- 40 HP
- Hitch
- CAT 1
- Construction/Clutch
- 11 ga deck, slip clutch or shear pin: CAT 4 Driveline
5' SD Cutter
- Width
- 60"
- HP Rating
- 24-55
- Side Skirt Depth
- 7"
- Blades (Thickness & Width)
- 1/2" x 3"
- Weight
- 500 lbs.
- Gear Box
- 50 HP
- Hitch
- CAT 1
- Construction/Clutch
- 11 ga deck, slip clutch or shear pin: CAT 4 Driveline
6' SD Cutter
- Width
- 72"
- HP Rating
- 24-55
- Side Skirt Depth
- 7"
- Blades (Thickness & Width)
- 1/2" x 3"
- Weight
- 892 lbs.
- Gear Box
- 50 HP
- Hitch
- CAT 1
- Construction/Clutch
- 11 ga deck, slip clutch or shear pin: CAT 4 Driveline
4' Cutter
- Width
- 48"
- HP Rating
- 24-40
- Side Skirt Depth
- 7"
- Blades (Thickness & Width)
- 1/2" x 3"
- Weight
- 600 lbs.
- Gear Box
- 40 HP
- Hitch
- CAT 1 or Quick Hitch
- Construction/Clutch
- 10 ga deck, slip clutch or shear pin: CAT 4 Driveline
5' Cutter
- Width
- 60"
- HP Rating
- 24-55
- Side Skirt Depth
- 7"
- Blades (Thickness & Width)
- 1/2" x 3"
- Weight
- 718 lbs.
- Gear Box
- 50 HP
- Hitch
- CAT 1 or Quick Hitch
- Construction/Clutch
- 10 ga deck, slip clutch or shear pin: CAT 4 Driveline
6' Cutter
- Width
- 72"
- HP Rating
- 35-72
- Side Skirt Depth
- 8.25"
- Blades (Thickness & Width)
- 1/2" x 3.5"
- Weight
- 880 lbs.
- Gear Box
- 75 HP
- Hitch
- CAT 1 or Quick Hitch
- Construction/Clutch
- 10 ga deck, slip clutch or shear pin: CAT 6 Driveline
7' Cutter
- Width
- 84"
- HP Rating
- 35-83
- Side Skirt Depth
- 9"
- Blades (Thickness & Width)
- 1/2" x 3.5"
- Weight
- 1,187 lbs.
- Gear Box
- 85 HP
- Hitch
- CAT 2 or Quick Hitch
- Construction/Clutch
- 10 ga and 7 ga, slip clutch: CAT 6 Driveline
10' Cutter
- Width
- 130"
- HP Rating
- 60-120
- Side Skirt Depth
- 12"
- Blades (Thickness & Width)
- 1/2" x 4"
- Weight
- 2,050 lbs.
- Gear Box
- 100 HP Center 2-75 HP Outer
- Hitch
- CAT 3 Pull Type
- Construction/Clutch
- 10 ga, slip clutch: Cat 6 Driveline: Tail Wheels Hydraulic Height Adjust

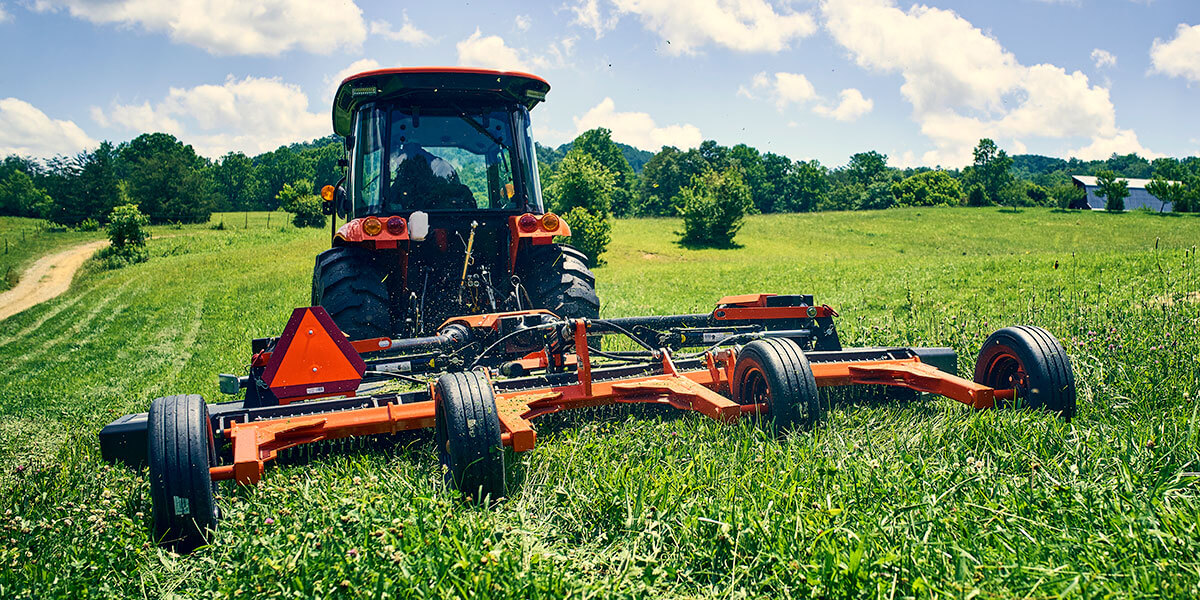

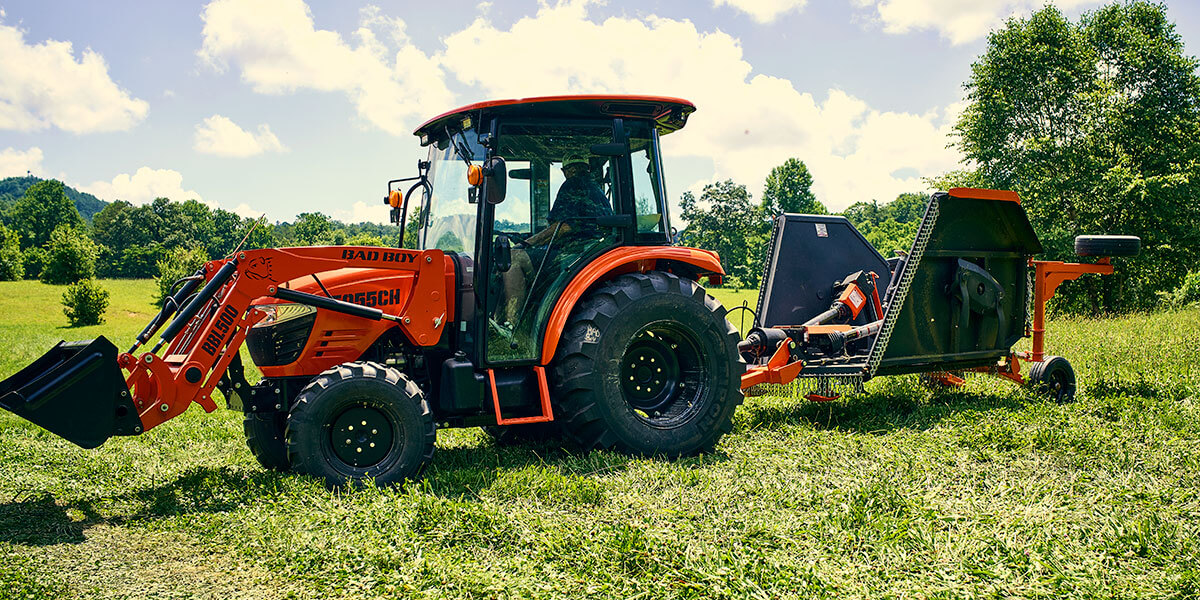

Flex Wing Cutter
Available in 12 Foot Width
12' Flex Wing Cutter
- Width
- 154"
- PTO HP Rating
- 35-60
- Deck Height
- 9.5"
- Blades
(Length x Thickness x Width) - 17.6" x ½" x 2"
- Weight
- 2,994 lbs.
- Gear Box
- Omni RCD-90, (2) Omni RC-71, Omni RC-71R
- Category
- Pull
- Construction/Clutch
- 10 ga. Deck, Slip Clutch with CV U-Joint

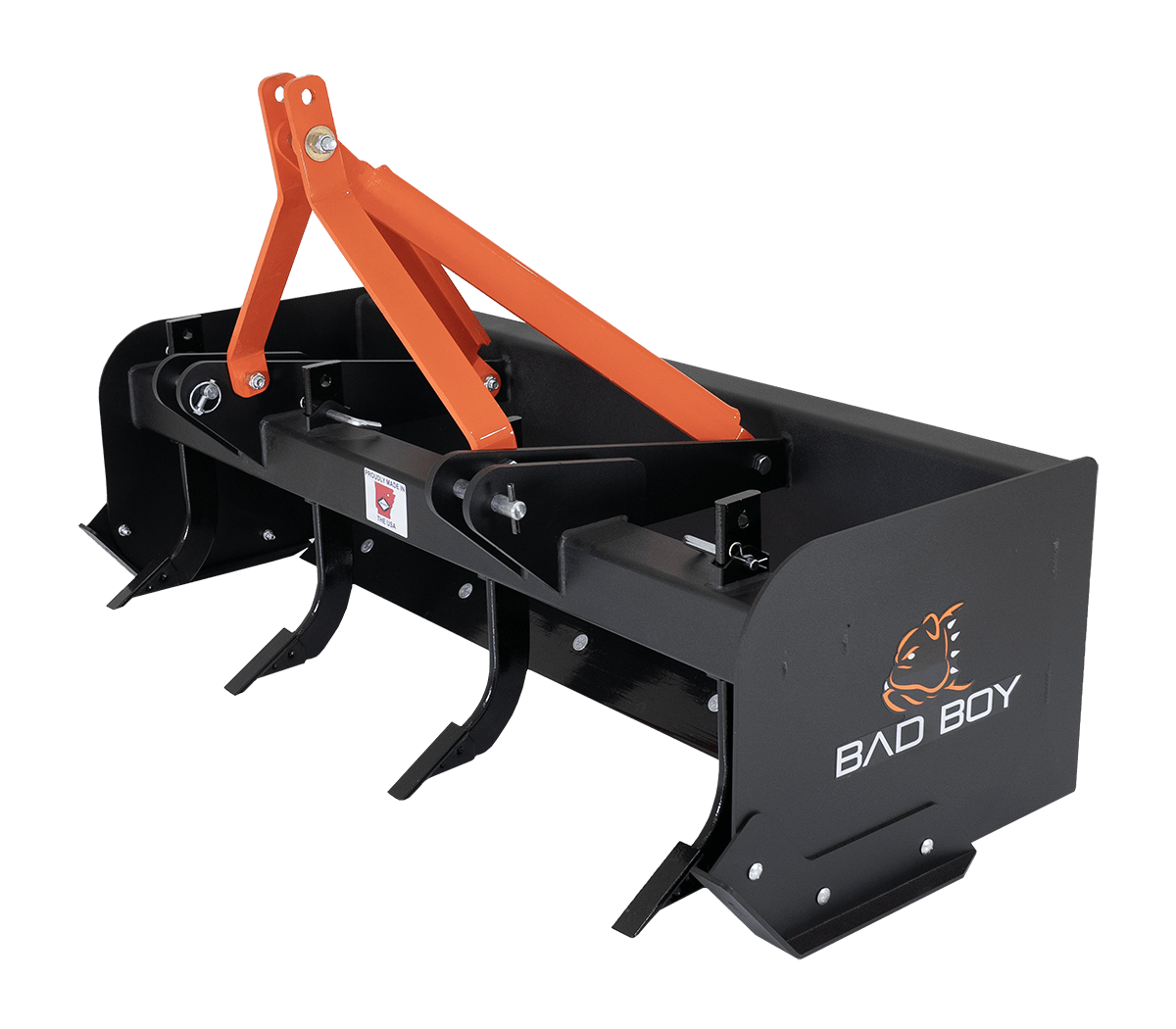

Box Blades
Available in 4, 5, 6 & 7 Foot Widths
Optional Skid Plates Available
Box Blade Specifications
4' Box Blade
- Width
- 48"
- HP Rating
- 20-55
- Moldboard Depth
- 18
- Shanks
- 4 Adjustable
- Blades (Scalping or Cutting)
- 2
- Weight
- 389 lbs.
- Hitch
- CAT 1 or Quick Hitch
- Construction Features
- 1/4" sides and 3/16" moldboard; Optional replaceable skids; 4" x 1/4" wall square tubing main frame
5' Box Blade
- Width
- 60"
- HP Rating
- 25-55
- Moldboard Depth
- 18
- Shanks
- 4 Adjustable
- Blades (Scalping or Cutting)
- 2
- Weight
- 436 lbs.
- Hitch
- CAT 1 or Quick Hitch
- Construction Features
- 1/4" sides and 3/16" moldboard; Optional replaceable skids; 4" x 1/4" wall square tubing main frame
6' Box Blade
- Width
- 72"
- HP Rating
- 25-55
- Moldboard Depth
- 18
- Shanks
- 6 Adjustable
- Blades (Scalping or Cutting)
- 2
- Weight
- 510 lbs.
- Hitch
- CAT 1 or Quick Hitch
- Construction Features
- 1/4" sides and 3/16" moldboard; Optional replaceable skids; 4" x 1/4" wall square tubing main frame
7' Box Blade
- Width
- 84"
- HP Rating
- 80 Max
- Moldboard Depth
- 18
- Shanks
- 7 Adjustable
- Blades (Scalping or Cutting)
- 2
- Weight
- 568 lbs.
- Hitch
- CAT 2 or Quick Hitch
- Construction Features
- 1/4" sides and 3/16" moldboard; Optional replaceable skids; 4" x 1/4" wall square tubing main frame

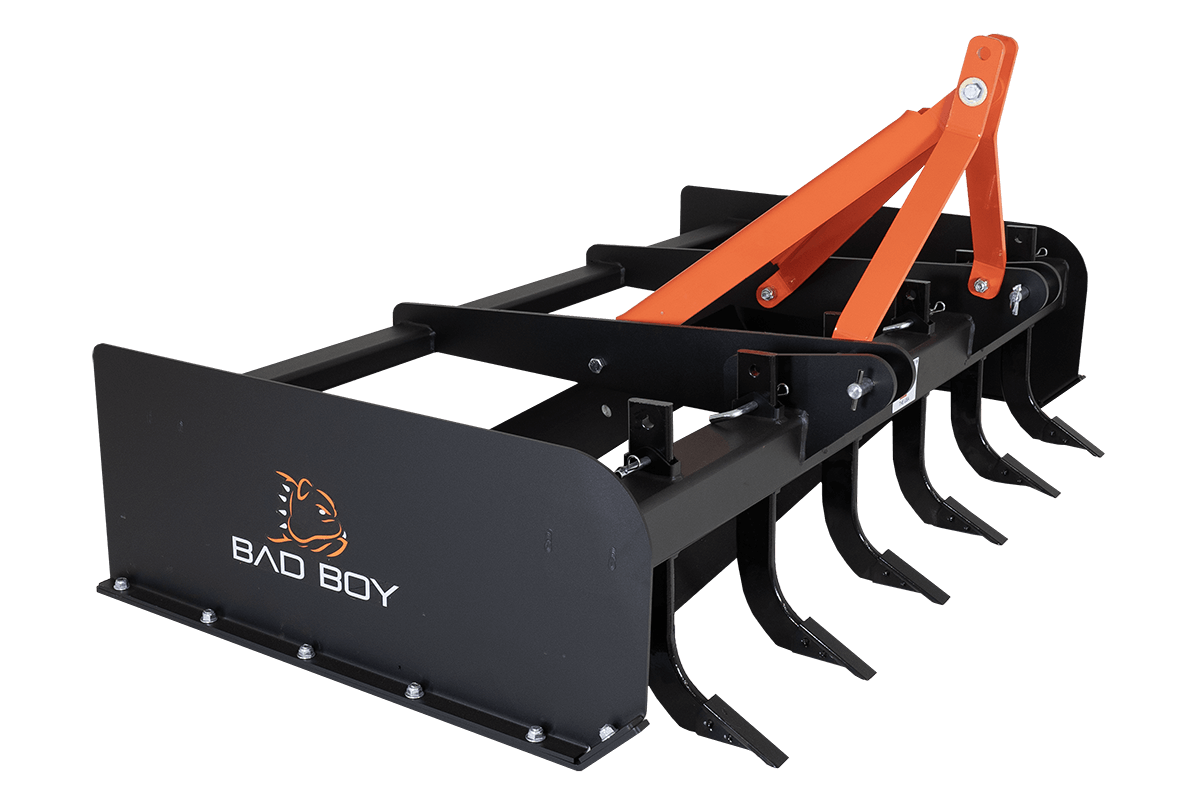

Graders
Available in 5, 6 & 7 Foot Widths
Grader Specifications
5' Land Grader
- Width
- 60"
- HP Rating
- 18-55
- Moldboard Depth
- 16.5
- Shanks
- 4 Adjustable (optional)
- Blades (Scalping or Cutting)
- 2
- Weight
- 463 lbs.
- Hitch
- CAT 1 or Quick Hitch
- Construction Features
- 1/4" sides; 4" x 1/4" wall square tubing main frame; Replaceable skids; Fully adjustable blades
6' Land Grader
- Width
- 72"
- HP Rating
- 18-55
- Moldboard Depth
- 16.5
- Shanks
- 6 Adjustable (optional)
- Blades (Scalping or Cutting)
- 2
- Weight
- 499 lbs.
- Hitch
- CAT 1 or Quick Hitch
- Construction Features
- 1/4" sides; 4" x 1/4" wall square tubing main frame; Replaceable skids; Fully adjustable blades
7' Land Grader
- Width
- 84"
- HP Rating
- 80 Max
- Moldboard Depth
- 16.5
- Shanks
- 7 Adjustable (optional)
- Blades (Scalping or Cutting)
- 2
- Weight
- 570 lbs.
- Hitch
- CAT 2 or Quick Hitch
- Construction Features
- 1/4" sides; 4" x 1/4" wall square tubing main frame; Replaceable skids; Fully adjustable blades

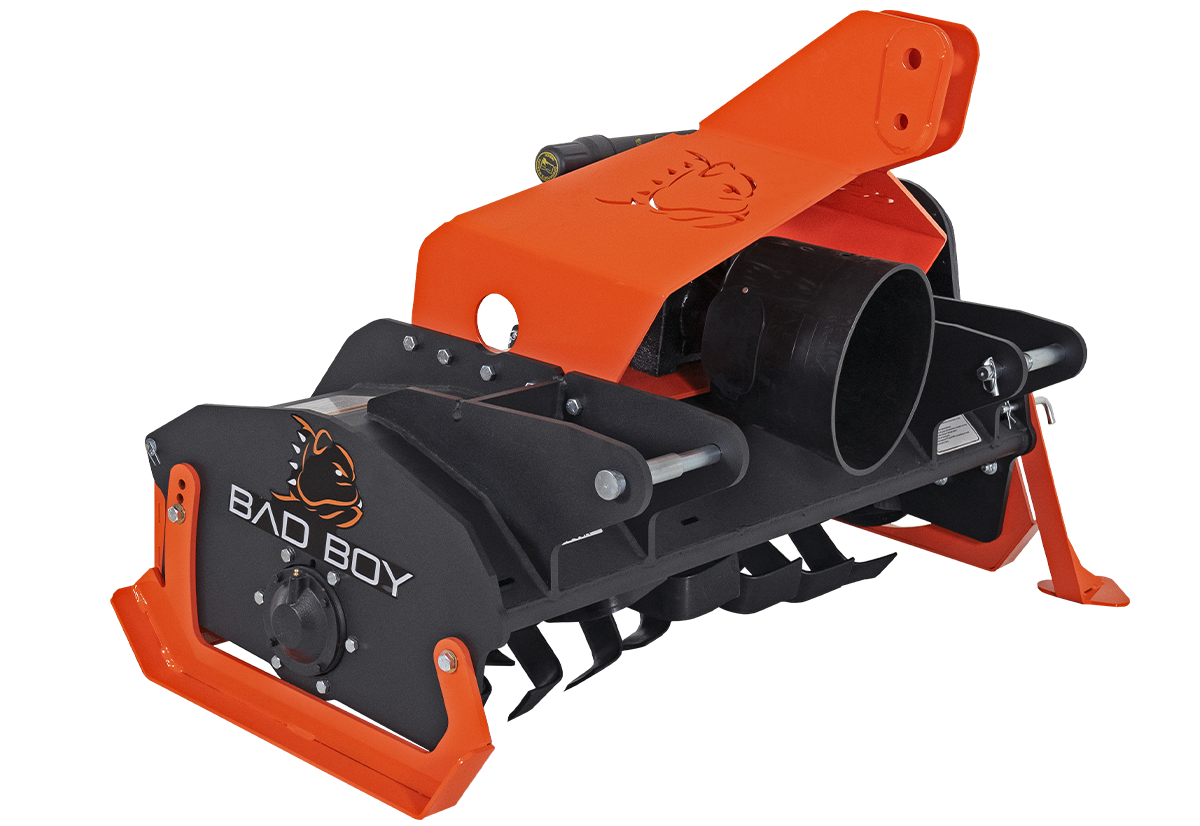

Rotary Tillers
Available in 4, 5, 6 & 7 Foot Widths
Rotary Tiller Specifications
Rotary Tiller - BBRT48
- Tractor HP Range
- 25 to 45
- Tractor Hitch
- CAT 1 & 2 and Quick Hitch
- Working Width
- 42 3/4"
- Overall Width
- 51 3/4"
- Weight
- 658 lbs.
- Max Tilling Depth
- 6.5"
- Drive Type
- Gearbox
- Number Of Tines/Flanges
- 36/6
- Tines Per Flange
- 6
- PTO Speed
- 540
- PTO Driveline Protection
- Slip Clutch
- Till Direction
- Forward & Reverse
- Adjustable Skids
- Yes
- Quick Hitch Compatible
- Yes
- Gearbox Warranty
- 5 Year Limited Warranty
Rotary Tiller - BBRT60
- Tractor HP Range
- 25 to 45
- Tractor Hitch
- CAT 1 & 2 and Quick Hitch
- Working Width
- 54 1/2"
- Overall Width
- 63 1/2"
- Weight
- 698 lbs.
- Max Tilling Depth
- 6.5"
- Drive Type
- Gearbox
- Number Of Tines/Flanges
- 42/7
- Tines Per Flange
- 6
- PTO Speed
- 540
- PTO Driveline Protection
- Slip Clutch
- Till Direction
- Forward & Reverse
- Adjustable Skids
- Yes
- Quick Hitch Compatible
- Yes
- Gearbox Warranty
- 5 Year Limited Warranty
Rotary Tiller - BBRT72
- Tractor HP Range
- 25 to 45
- Tractor Hitch
- CAT 1 & 2 and Quick Hitch
- Working Width
- 64 3/4"
- Overall Width
- 77 1/2"
- Weight
- 738 lbs.
- Max Tilling Depth
- 6.5"
- Drive Type
- Gearbox
- Number Of Tines/Flanges
- 54/9
- Tines Per Flange
- 6
- PTO Speed
- 540
- PTO Driveline Protection
- Slip Clutch
- Till Direction
- Forward & Reverse
- Adjustable Skids
- Yes
- Quick Hitch Compatible
- Yes
- Gearbox Warranty
- 5 Year Limited Warranty
Rotary Tiller - BBRT84
- Tractor HP Range
- 50 to 65
- Tractor Hitch
- CAT 1 & 2 and Quick Hitch
- Working Width
- 82"
- Overall Width
- 89"
- Weight
- 810 lbs.
- Max Tilling Depth
- 6.5"
- Drive Type
- Gearbox
- Number Of Tines/Flanges
- 66/11
- Tines Per Flange
- 6
- PTO Speed
- 540
- PTO Driveline Protection
- Slip Clutch
- Till Direction
- Forward & Reverse
- Adjustable Skids
- Yes
- Quick Hitch Compatible
- Yes
- Gearbox Warranty
- 5 Year Limited Warranty
Disc Harrow
Available in 4, 5, 6 & 7 Foot Widths
5 Foot
6 Foot
Disc Harrow Specifications
4' Disc Harrow
- Hitch
- CAT 1
- Disc Blade Size
- 16"
- Number of Disc/Gang
- 3
- Disc Spacing
- 7 1/2"
- Main Frame
- 2" x 2" x .180" Carbon Steel Tube
- Disc Gang Tube
- 2" x 2" x .180" Carbon Steel Tube
- Disc Gang Axel
- 1" Carbon Steel
- Angle - Front Gang
- 0°, 7° & 14° to the Front
- Angle - Rear Gang
- 0°, 7° & 14° to the Rear
- Weight
- 402 lbs.
5' Disc Harrow
- Hitch
- CAT 1
- Disc Blade Size
- 16"
- Number of Disc/Gang
- 4
- Disc Spacing
- 7 1/2"
- Main Frame
- 2" x 2" x .180" Carbon Steel Tube
- Disc Gang Tube
- 2" x 2" x .180" Carbon Steel Tube
- Disc Gang Axel
- 1" Carbon Steel
- Angle - Front Gang
- 0°, 7° & 14° to the Front
- Angle - Rear Gang
- 0°, 7°, & 14° to the Rear
- Weight
- 449 lbs.
6' Disc Harrow
- Hitch
- CAT 1, CAT 2
- Disc Blade Size
- 18"
- Number of Disc/Gang
- 5
- Disc Spacing
- 7 1/2"
- Main Frame
- 2.5" x 2.5" x 0.25" Carbon Steel Tube
- Disc Gang Tube
- 2" x 3" x 0.25" Carbon Steel Tube
- Disc Gang Axel
- 1" Carbon Steel
- Angle - Front Gang
- 0°, 7°, 14°, 21°
- Angle - Rear Gang
- 0°, 7°, 14°, 21°
- Weight
- 702 lbs.
7' Disc Harrow
- Hitch
- CAT 1, CAT 2
- Disc Blade Size
- 18"
- Number of Disc/Gang
- 6
- Disc Spacing
- 7 1/2"
- Main Frame
- 2.5" x 2.5" x 0.25" Carbon Steel Tube
- Disc Gang Tube
- 2" x 3" x 0.25" Carbon Steel Tube
- Disc Gang Axel
- 1" Carbon Steel
- Angle - Front Gang
- 0°, 7°, 14°, 21°
- Angle - Rear Gang
- 0°, 7°, 14°, 21°
- Weight
- 770 lbs.
Forks & Hitches
QA Front Hay Spear Specs
- Spear Length
- Top: 49"; Bottom: 17"
- Weight
- 150 lbs.
- Hitch
- Skid Steer Quick Attach
- Features
- 3" 1/4" wall tubing frame: Mounts to Front Loader 2-17" stabilizer bars. Spears rated at 1,800 lbs.
3 Prong-3PT Hay Fork Specs
- Width
- 26.5"
- Weight
- 79 lbs.
- Hitch
- CAT 1
- Features
- 49˝ Main Spear; 3˝ x 1/4˝ wall tubing frame; 2 17˝ stabilizer bars; Spears rated at 1,800 lbs.

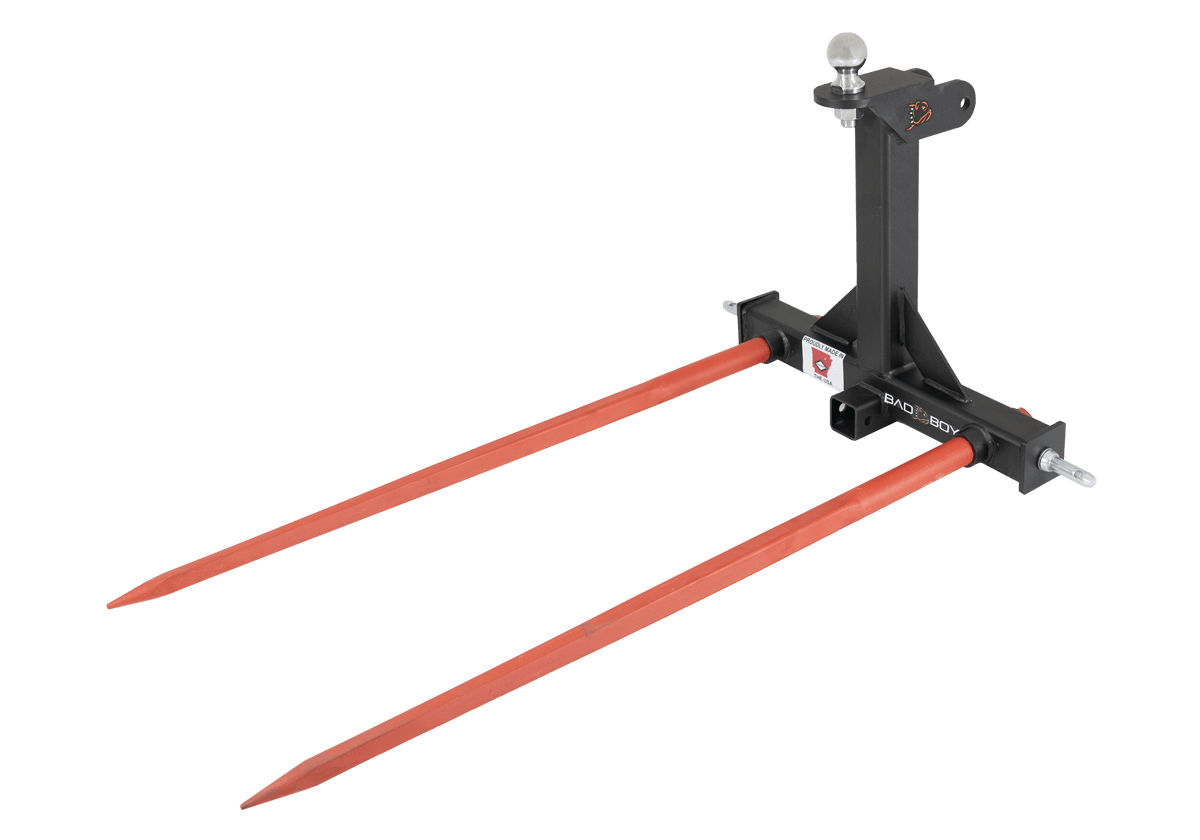

2 Prong-3PT Hay Fork & Trailer Mover Combo Specs
- Width
- 26.5"
- Weight
- 107 lbs.
- Hitch
- CAT 1
- Features
- 3˝ x 1/4˝ wall tubing frame; 2@ 49˝ spears rated at 1,800 lbs.; Receiver hitch and 2 5/16˝ ball mount

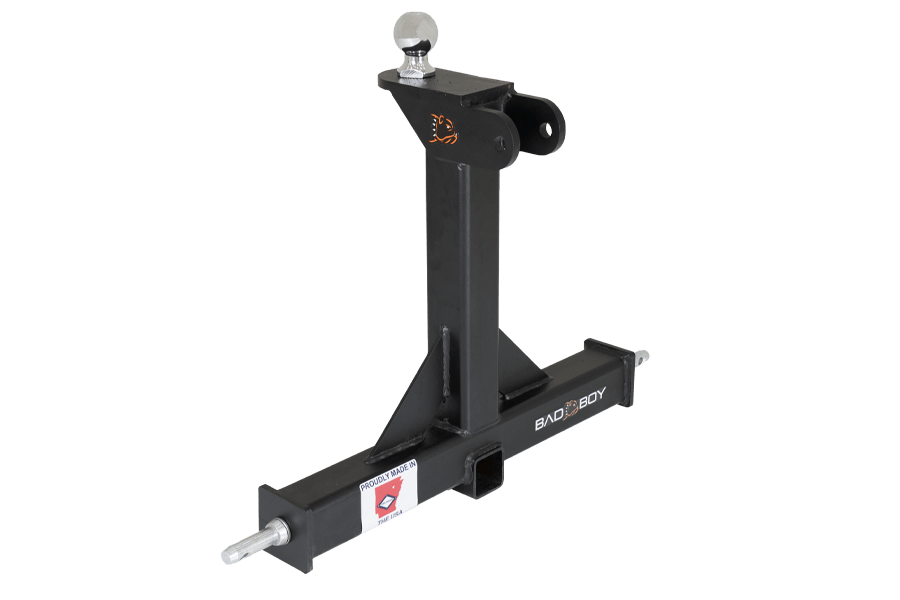

3 PT Trailer Mover Specs
- Width
- 26.5"
- Weight
- 43 lbs.
- Hitch
- CAT 1
- Features
- 3" x 1/4" wall tubing frame; Receiver hitch and ball mount
Heavy-Duty Pallet Forks Specs
- Width
- 47"
- Weight
- 350 lbs.
- Hitch
- Quick Attach
- Features
- Class 2 3,500 lb capacity, 4 x 48" fork, D-Ring
Standard Pallet Forks Specs
- Width
- 47"
- Weight
- 43 lbs.
- Hitch
- Quick Attach
- Features
- Class 2 2,200 lb capacity, 3” x 42” forks

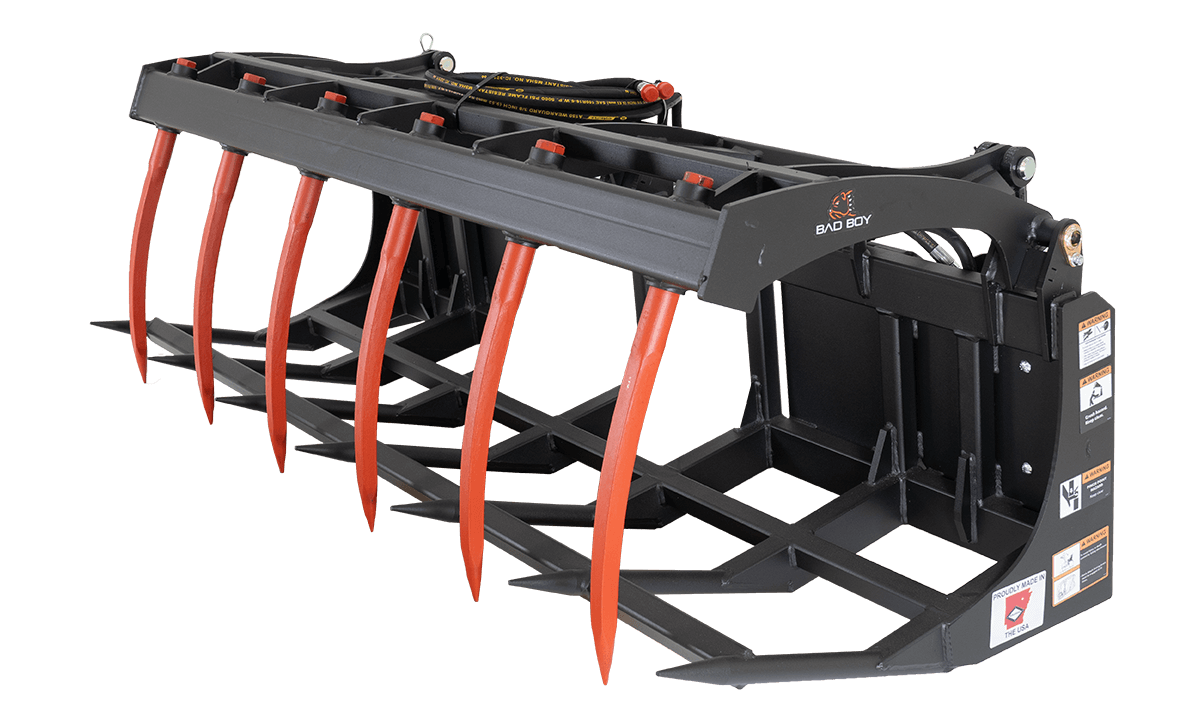

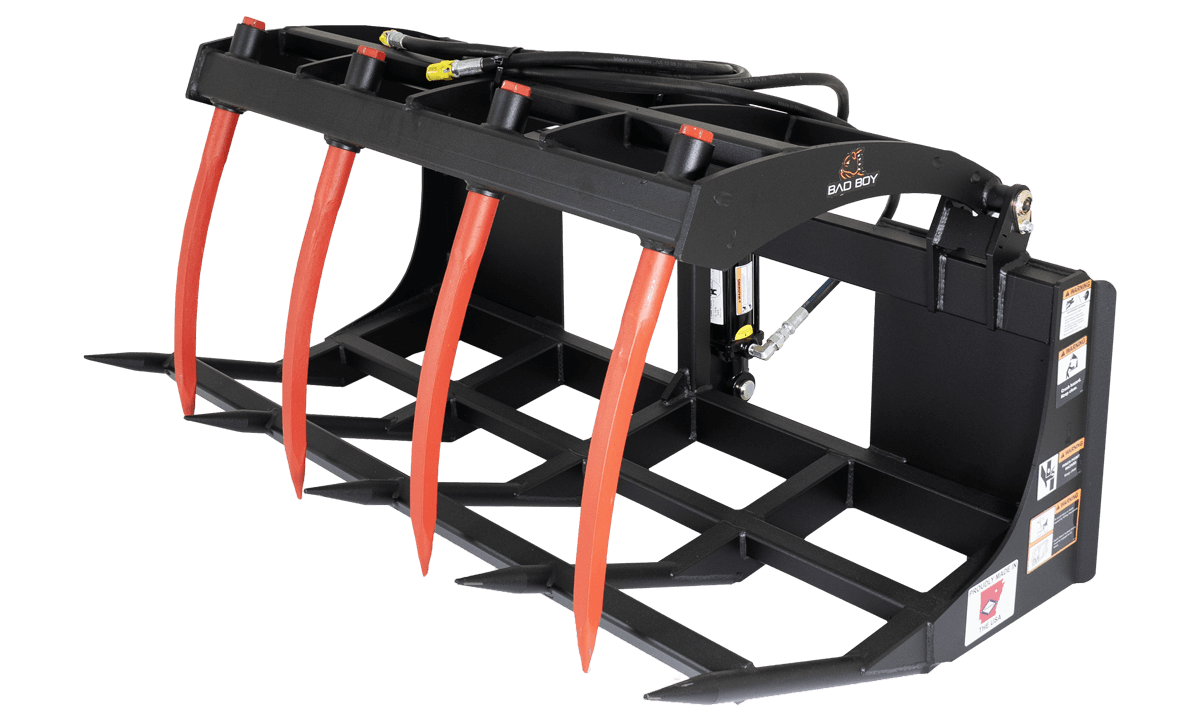

Front Grapple Attachments
Available in 70" Large & 48" Small
Front Grapple Specifications
Large Grapples
- Width
- 70"
- Shanks
- 6
- Weight
- 375 lbs.
- Hitch
- Quick Attach
- Features
- (2) 2,500psi cylinders, Comes with hose kit, HP Rating 17-40, Quick Attach
Small Grapples
- Width
- 48"
- Shanks
- 4
- Weight
- 255 lbs.
- Hitch
- Quick Attach
- Features
- 2,500psi cylinder, Comes with hose kit, HP Rating 17-25
Grader Blade
Available in 4, 5, 6 & 7 Foot Widths
All Grader Blade Models feature 5 Forward and 5 Reverse blade positions, Tilt clockwise and counterclockwise, 1/4˝ moldboard, frame tubing, 1/4˝ wall and 3/8˝ pivot plates.
Grader Blade Specifications
4' Grader Blade
- Width
- 48"
- HP Rating
- 17-25
- Blades (Scraping or Cutting)
- 1
- Weight
- 220 lbs.
- Hitch
- Quick Hitch
5' Grader Blade
- Width
- 60"
- HP Rating
- 17-40
- Blades (Scraping or Cutting)
- 1
- Weight
- 263 lbs.
- Hitch
- Quick Hitch
6' Grader Blade
- Width
- 72"
- HP Rating
- 20-40
- Blades (Scraping or Cutting)
- 1
- Weight
- 306 lbs.
- Hitch
- Quick Hitch
7' Grader Blade
- Width
- 84"
- HP Rating
- 20-40
- Blades (Scraping or Cutting)
- 1
- Weight
- 350 lbs.
- Hitch
- Quick Hitch
Landscape Rake
Available in 4, 5, 6 & 7 Foot Widths
All Landscape Rake Models feature 5 Forward and 5 Reverse blade positions with 1/4˝ frame tubing, 3/8˝ swivel plates and individually mounted Tines.
Landscape Rake Specifications
4' Landscape Rake
- Width
- 48"
- HP Rating
- 17-25
- Weight
- 175 lbs.
- Hitch
- Quick Hitch
5' Landscape Rake
- Width
- 60"
- HP Rating
- 17-40
- Weight
- 201 lbs.
- Hitch
- Quick Hitch
6' Landscape Rake
- Width
- 72"
- HP Rating
- 20-40
- Weight
- 227 lbs.
- Hitch
- Quick Hitch
7' Landscape Rake
- Width
- 84"
- HP Rating
- 20-40
- Weight
- 254 lbs.
- Hitch
- Quick Hitch
Mid-Mount Mower Deck
Available for Bad Boy Series 1025H Tractor
The Legendary Mower Deck strength and build quality found on our Commercial-Build Zero Turn Mowers in an easy to mount, drive over cutting deck for our Bad Boy 1025H Tractor. Features a cutting height adjustment from 1˝ to 5,˝ and comes with a two year warranty on the deck and one year warranty on the gearbox.
Mid-Mount Mower Deck Specifications
1025H 60" Mid-Mount Mower Deck
- Gearbox
- BB_GB_03642
- Warranty
- 24 Months on Deck / 12 Months on Gearbox
- Weight
- 350 lbs.
- Total Width (With Chute)
- 73.5"
- Cut Range
- 1"–5" (Based on Factory Tires and Settings)
- Tractor Mid-PTO RPM
- 2,000 RPM
- Oil and Fluid
- EP 80W-90 500ml / 16.9 oz.
- Drive Type
- Gearbox Over Belt
- PTO Driveline Protection
- Shear Pin
How To Buy Implements
It’s easy to buy Bad Boy tractor implements through our dealer network and the best financing deals around.
