1022
- Featuring:
- 22 Horsepower
- 617 lbs. Loader Lift Capacity At Pins
- Hydro Max Transmission
- Treadle Style HST Pedals
- Reverse Mount Engine Additional Features
- 2 Range Transmission
- Independent PTO
- Power Steering
- Selectable 4wd
- Diffirential lock
- 7 Year Powertrain Warranty
1022 Tractor Specs
Download Manual1022 Engine
- Engine
- 3 Cylinder, Water-Cooled, Diesel
- Engine HP @ RPM
- 21.5
- Displacement (in.)
- 60.6
- Number Of Cylinders
- 3
- Fuel Tank (gal.)
- 6.6
1022 Drivetrain
- Transmission
- HST
- Number Of Speeds
- 2 Range
- Clutch
- Dry Single Plate
- Brakes
- Wet, Multi-Disc
1022 Hydraulics
- Type
- Power Assisted Hydro-Static
- Total Hydraulic Flow (Power Steering + Implement)
- 6.3 (2.1+4.2) / 23.8 (8+15.8)
- 3-Point Hitch
- Cat 1
- Rear Remote Valve
- Optional (Up To 1)
- 3-Point Hitch Lift Capacity @ 24" Behind Lift Point @ Ball Ends (lbs.)
- 499
1022 Dimensions
- Overall Length
- 94.2"
- Overall Width
- 44.5"
- Overall Height
- 86.6"
- Wheelbase
- 53.1"
- Minimum Ground Clearance
- 8.3"
- Weight
- 1,433 lbs.
1022 PTO
- Type
- Independent
- Rear (Mid) PTO Speed
- 540
- PTO HP
- 15.4
1022 Electrical
- Battery
- 12 V, 500 CCA
- Alternator
- 12 V, 40 A
1022 Wheels & Tires
- IND (Front)
- 18X8.50-10
- IND (Rear)
- 26X12-12
1022 Loader - Model BBL100
- Standard Bucket Size (in.)
- 48
- Maximum Lift Height (in.)
- 72.7
- Dig Depth (in.)
- 4.0
- Lift Capacity To Full Height At Pivot Pin (lbs.)
- 617
- Breakout Force (lbs.)
- 1,253
- Shipping Weight (lbs.)
- 438
1022 Backhoe - Model BBH100
- Standard Bucket Size (in.)
- 12
- Type
- Subframe-Mounted, Quick Attach
- Maximum Dig Depth (in.)
- 66
- Dig Force Bucket (lbs.)
- 1,975
- Shipping Weight (lbs.)
- 747
The Perfect Fit
The 1022 can get down and dirty with the best of them. This entry to our subcompact tractor lineup is perfect for small property owners. Get where other tractors can't and help you work with an attitude.
Power and Performance
The clean, Tier 4 Certified quiet and powerful diesel engine boasts 22 horsepower. This tractor offers over 600 pounds of lift capacity, while the hydrostatic power steering makes getting around easy and effortless.

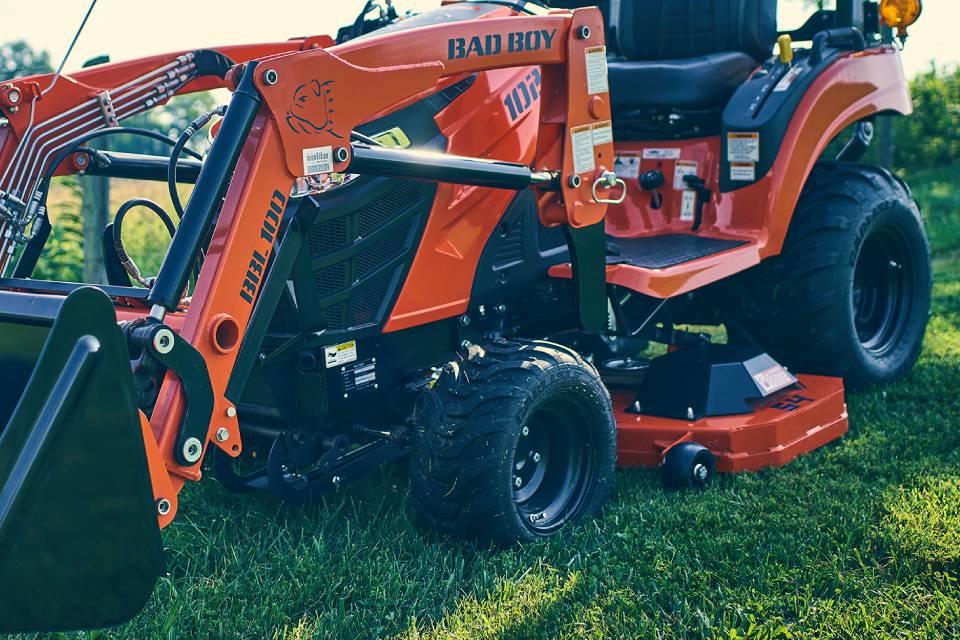

Get Right to Work
Our automatic hydro-static transmission allows even the novice tractor user to feel comfortable behind the controls. Put this tractor to the test because it's loaded with features to handle almost anything you can throw at it.
Implements And Cutters
Get the job done with our lineup of implements and cutters. Every Bad Boy Tractor features a tough 3-point hitch and front loader quick attach built for a lifetime of work around the field and farm.
Learn More

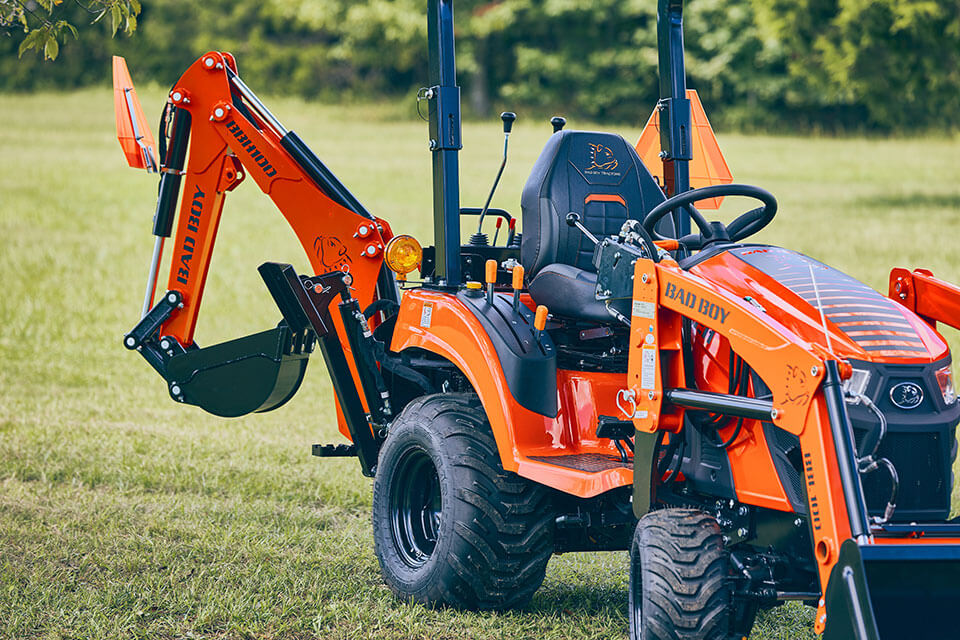

Built Tough to Work Longer
The smallest Bad Boy Tractor in our line-up still packs a powerful punch. The Bad Boy 1022 Sub-Compact Tractor is perfect for the small property owner who still wants a workhorse to get jobs done. Measuring just under 4 feet wide, this sub-compact tractor can squeeze into barn stalls, through gates and into tight spaces where bigger tractors just won't fit. It's driven by a powerful 22-horsepower engine. It has 617 lbs. of loader lift capacity. In terms of pulling power, this Bad Boy features differential lock, automatically equalizing power to both rear wheels. If you need even more boost, use the selectable 4-wheel drive to engage the front wheels and maximize traction. And this tractor is made with Bad Boy steel, including the full metal hood.

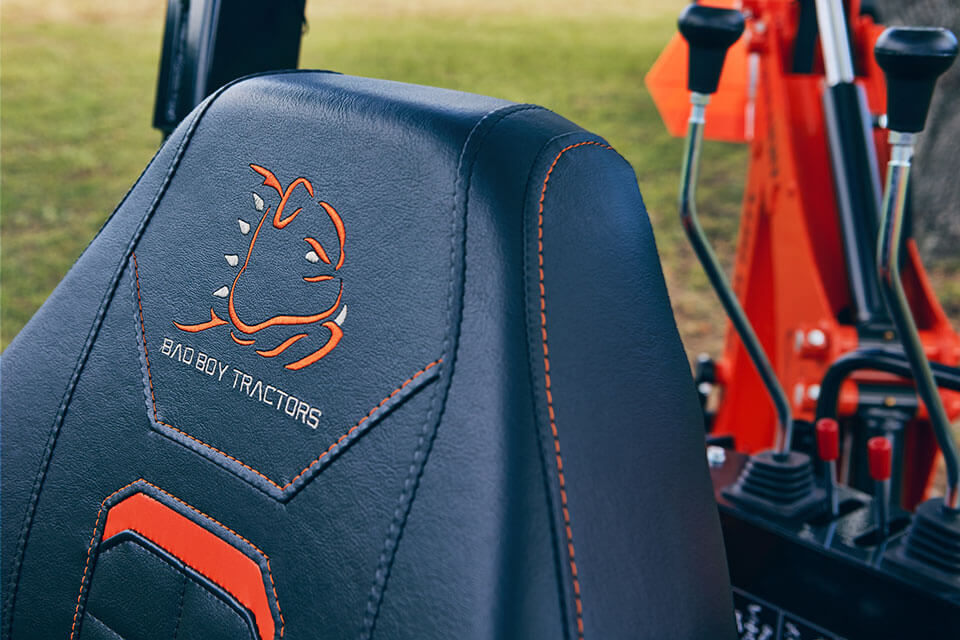

Get Comfortable
The Bad Boy 1022 features the same Hydro Max Transmission as our bigger Bad Boy Tractors, giving you the power to automatically increase engine RPMs evenly with the push of a pedal. This 2-range transmission can be set to low for work and high for transport. The power steering and cruise control make getting around easy and effortless. And it's loaded with features that are right at your fingertips. So if you need a tractor that can do a little bit of everything and do it well, the small Bad Boy 1022 Sub-Compact Tractor always comes up big.

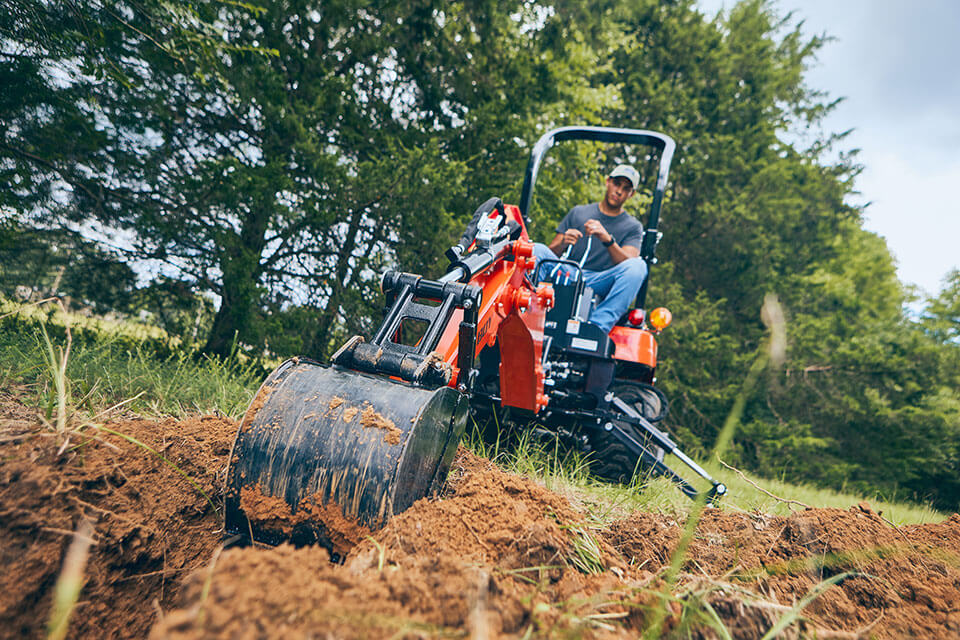

Take On Any Task
The Bad Boy 1022 Sub-Compact Tractor has an entire line-up of tough 3-point hitch and front loader quick attach and latch implements guaranteed to make any job quicker and easier. All of our implements are manufactured with Bad Boy's industry-leading standards. Made from heavy-gauge, welded and fabricated steel, they're more than ready to pull their weight around your property. The Bad Boy line-up includes; Box Blades, Land Graders, Rotary Tillers, Disc Harrows, Forks and Hitches, Front Grapples, Grader Blades, Landscape Rakes, Rotary Brush Cutters. They're built for a lifetime of work around the field and farm.

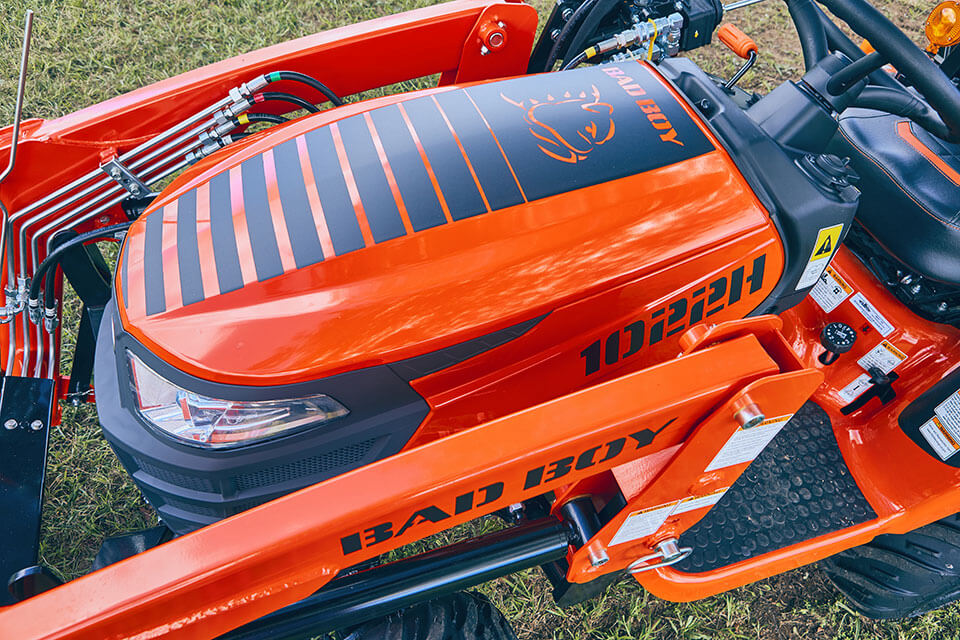

Guaranteed Powertrain Warranty
Even though the 1022 Tractor is smaller, it's still all Bad Boy. You get the quality craftsmanship and durability we're famous for. We're backing up that promise with a 7-year powertrain warranty, guaranteed. So you can work every day with the confidence that this little tractor is covered, and it can handle any job you throw its way. Think of the Bad Boy 1022 Tractor as a powerhouse in a smaller package.
