5055
- Featuring:
- 55 Horsepower
- 2,700 lbs. Loader Lift Capacity At Pins
- Hydro Max or Shuttle Shift Transmission Option
- Optional Climate-Controlled Cab with Leather, Heated Seat
- Power Steering Additional Features
- Easy to Adjust Pin Style Stabilizer
- Cruise Control
- 4WD
5055 Tractor Specs
Download Manual| Dimensions | 5055S | 5055H | 5055CS | 5055CH |
| OVERALL LENGTH, IN, 3P | 127.4 | 127.4 | 127.4 | 127.4 |
| OVERALL WIDTH, IN | 64.9 | 64.9 | 64.9 | 64.9 |
| HEIGHT TO TOP OF ROPS, IN | 98.4 | 98.4 | 97 | 97 |
| WHEELBASE, IN | 71.1 | 71.1 | 71.1 | 71.1 |
| MIN. GROUND CLEARANCE, IN | 15.5 | 15.5 | 15.5 | 15.5 |
| WEIGHT, LB | 3,836 | 3,836 | 4,349 | 4,349 |
| PTO | 5055S | 5055H | 5055CS | 5055CH |
| 540, 540E | 584, 791 | 584, 791 | 584, 791 | 584, 791 |
| Hydrostatic | 5055S | 5055H | 5055CS | 5055CH |
| MAXIMUM TOTAL FLOW, GPM | 16.4 | 15.7 | 16.4 | 15.7 |
| IMPLEMENT PUMP CAP, GPM | 11.4 | 10.7 | 11.4 | 10.7 |
| STEERING PUMP CAP, GPM | 5 | 5 | 5 | 5 |
| 3P CATEGORY | 1 | 1 | 1 | 1 |
| HITCH LIFT CAPACITY, LB | 3306 | 3306 | 3306 | 3306 |
| AT 24 INCHES BEHIND LINK ENDS, LB | 2425 | 2425 | 2425 | 2425 |
| Engine | 5055S | 5055H | 5055CS | 5055CH |
| MODEL | A2300T3-UTR_4 | A2300T3-UTR_4 | A2300T3-UTR_4 | A2300T3-UTR_4 |
| FUEL SYSTEM | WATER-COOLED DIESEL | WATER-COOLED DIESEL | WATER-COOLED DIESEL | WATER-COOLED DIESEL |
| DISPLACEMENT, IN | 139.5 | 139.5 | 139.5 | 139.5 |
| NUMBER OF CYLINDERS | 4 | 4 | 4 | 4 |
| RATED ENGINGE POWER, HP | 55 | 55 | 55 | 55 |
| RATED SPEED, RPM | 2600 | 2600 | 2600 | 2600 |
| MAX PTO POWER, HP | 44 | 44 | 44 | 44 |
| DPF / SCR / DOC | DPF / DOC | DPF / DOC | DPF / DOC | DPF / DOC |
| Transmission | 5055S | 5055H | 5055CS | 5055CH |
| TYPE | SYNCHRO | HST | SYNCHRO | HST |
| NUMBER OF GEARS | 16F / 16R | 4 RANGE | 16F / 16R | 4 RANGE |
5055S Dimensions
- OVERALL LENGTH, IN, 3P
- 127.4
- OVERALL WIDTH, IN
- 64.9
- HEIGHT TO TOP OF ROPS, IN
- 98.4
- WHEELBASE, IN
- 71.1
- MIN. GROUND CLEARANCE, IN
- 15.5
- WEIGHT, LB
- 3,836
5055S PTO
- 540, 540E
- 584, 791
5055S Hydrostatic
- MAXIMUM TOTAL FLOW, GPM
- 16.4
- IMPLEMENT PUMP CAP, GPM
- 11.4
- STEERING PUMP CAP, GPM
- 5
- 3P CATEGORY
- 1
- HITCH LIFT CAPACITY, LB
- 3306
- AT 24 INCHES BEHIND LINK ENDS, LB
- 2425
5055S Engine
- MODEL
- A2300T3-UTR_4
- FUEL SYSTEM
- WATER-COOLED DIESEL
- DISPLACEMENT, IN
- 139.5
- NUMBER OF CYLINDERS
- 4
- RATED ENGINGE POWER, HP
- 55
- RATED SPEED, RPM
- 2600
- MAX PTO POWER, HP
- 44
- DPF / SCR / DOC
- DPF / DOC
5055S Transmission
- TYPE
- SYNCHRO
- NUMBER OF GEARS
- 16F / 16R
5055H Dimensions
- OVERALL LENGTH, IN, 3P
- 127.4
- OVERALL WIDTH, IN
- 64.9
- HEIGHT TO TOP OF ROPS, IN
- 98.4
- WHEELBASE, IN
- 71.1
- MIN. GROUND CLEARANCE, IN
- 15.5
- WEIGHT, LB
- 3,831
5055H PTO
- 540, 540E
- 584, 791
5055H Hydrostatic
- MAXIMUM TOTAL FLOW, GPM
- 15.7
- IMPLEMENT PUMP CAP, GPM
- 10.7
- STEERING PUMP CAP, GPM
- 5
- 3P CATEGORY
- 1
- HITCH LIFT CAPACITY, LB
- 3306
- AT 24 INCHES BEHIND LINK ENDS, LB
- 2425
5055H Engine
- MODEL
- A2300T3-UTR_4
- FUEL SYSTEM
- WATER-COOLED DIESEL
- DISPLACEMENT, IN
- 139.5
- NUMBER OF CYLINDERS
- 4
- RATED ENGINGE POWER, HP
- 55
- RATED SPEED, RPM
- 2600
- MAX PTO POWER, HP
- 44
- DPF / SCR / DOC
- DPF / DOC
5055H Transmission
- TYPE
- HST
- NUMBER OF GEARS
- 4 Range
5055CS Dimensions
- OVERALL LENGTH, IN, 3P
- 127.4
- OVERALL WIDTH, IN
- 64.9
- HEIGHT TO TOP OF ROPS, IN
- 97
- WHEELBASE, IN
- 71.1
- MIN. GROUND CLEARANCE, IN
- 15.5
- WEIGHT, LB
- 4,349
5055CS PTO
- 540, 540E
- 584, 791
5055CS Hydrostatic
- MAXIMUM TOTAL FLOW, GPM
- 16.4
- IMPLEMENT PUMP CAP, GPM
- 11.4
- STEERING PUMP CAP, GPM
- 5
- 3P CATEGORY
- 1
- HITCH LIFT CAPACITY, LB
- 3306
- AT 24 INCHES BEHIND LINK ENDS, LB
- 2425
5055CS Engine
- MODEL
- A2300T3-UTR_4
- FUEL SYSTEM
- WATER-COOLED DIESEL
- DISPLACEMENT, IN
- 139.5
- NUMBER OF CYLINDERS
- 4
- RATED ENGINGE POWER, HP
- 55
- RATED SPEED, RPM
- 2600
- MAX PTO POWER, HP
- 44
- DPF / SCR / DOC
- DPF / DOC
5055CS Transmission
- TYPE
- SYNCHRO
- NUMBER OF GEARS
- 16F / 16R
5055CH Dimensions
- OVERALL LENGTH, IN, 3P
- 127.4
- OVERALL WIDTH, IN
- 64.9
- HEIGHT TO TOP OF ROPS, IN
- 97
- WHEELBASE, IN
- 71.1
- MIN. GROUND CLEARANCE, IN
- 15.5
- WEIGHT, LB
- 4,349
5055CH PTO
- 540, 540E
- 584, 791
5055CH Hydrostatic
- MAXIMUM TOTAL FLOW, GPM
- 15.7
- IMPLEMENT PUMP CAP, GPM
- 10.7
- STEERING PUMP CAP, GPM
- 5
- 3P CATEGORY
- 1
- HITCH LIFT CAPACITY, LB
- 3306
- AT 24 INCHES BEHIND LINK ENDS, LB
- 2425
5055CH Engine
- MODEL
- A2300T3UTR_4
- FUEL SYSTEM
- WATER-COOLED DIESEL
- DISPLACEMENT, IN
- 139.5
- NUMBER OF CYLINDERS
- 4
- RATED ENGINGE POWER, HP
- 55
- RATED SPEED, RPM
- 2600
- MAX PTO POWER, HP
- 44
- DPF / SCR / DOC
- DPF / DOC
5055CH Transmission
- TYPE
- HST
- NUMBER OF GEARS
- 4 Range

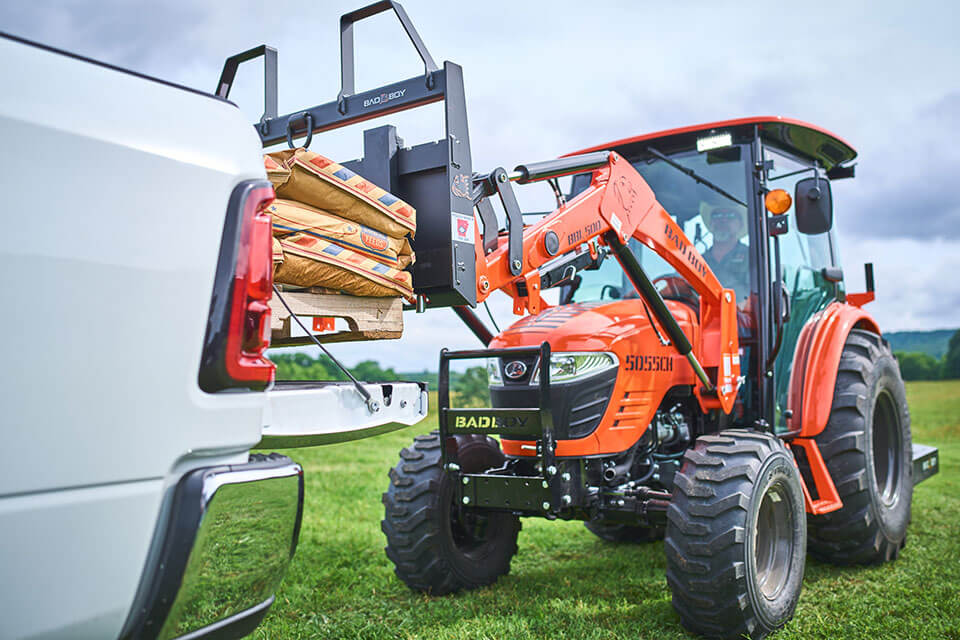

Even More Power
This tractor features the most horsepower in our lineup. That gives you up to 2,700 lbs. loader lift capacity to get more done.

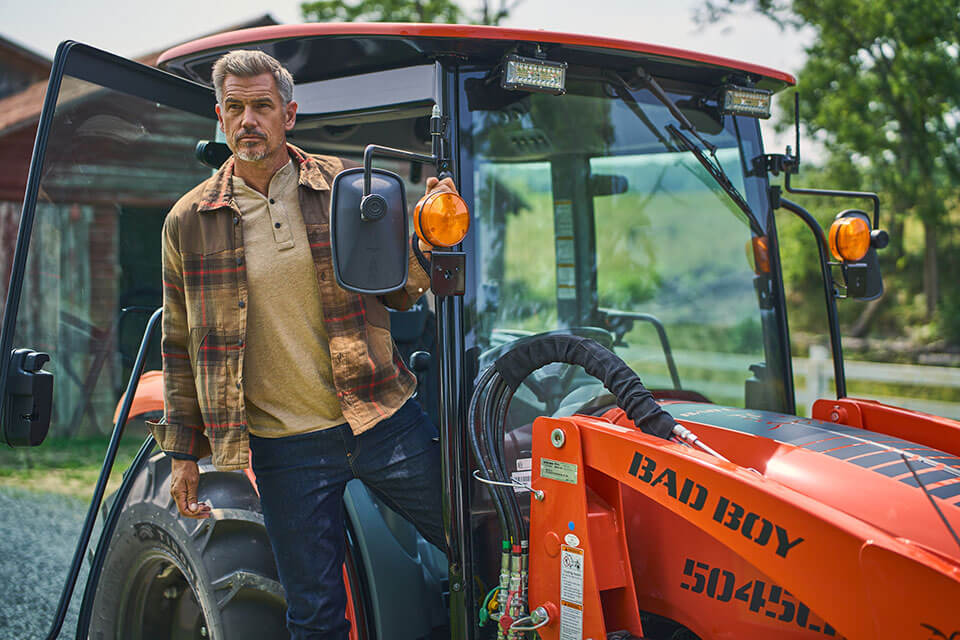

Pick Your Set-Up
The 5055 is available in with a climate-controlled factory cab or an open station. Choose the one that’s right for you, and work with an attitude your way.

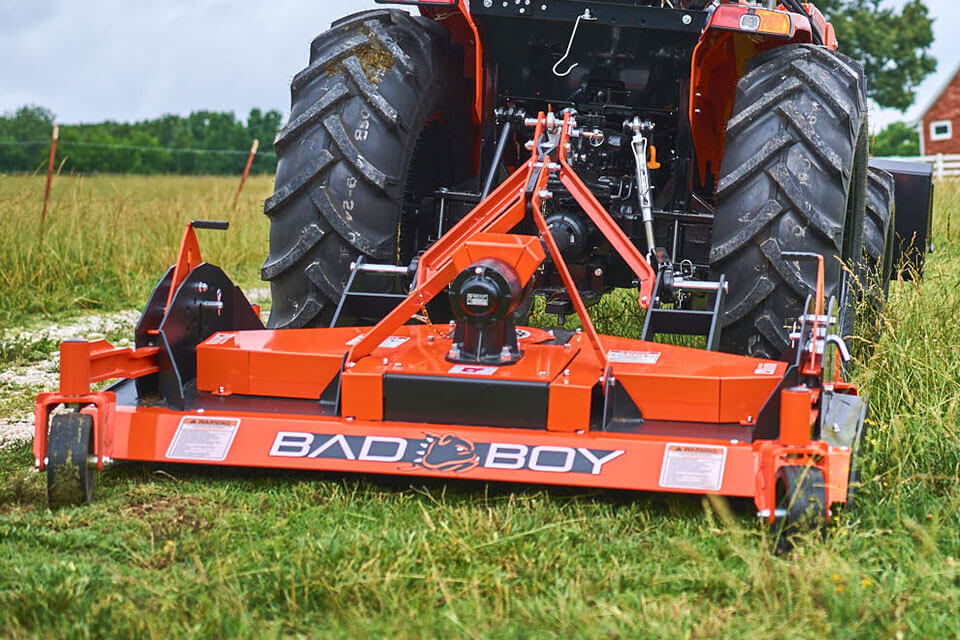

Versatile Hitch
Our 3-point hitch is built right with heavy-gauge, welded and fabricated steel. You can put it to good use with our wide range of tractor implements.

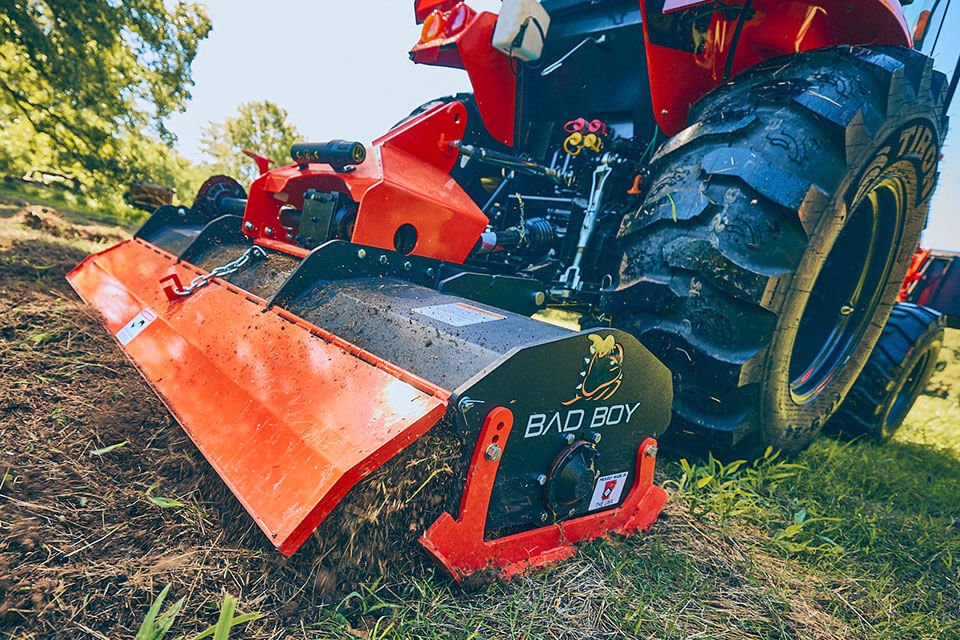

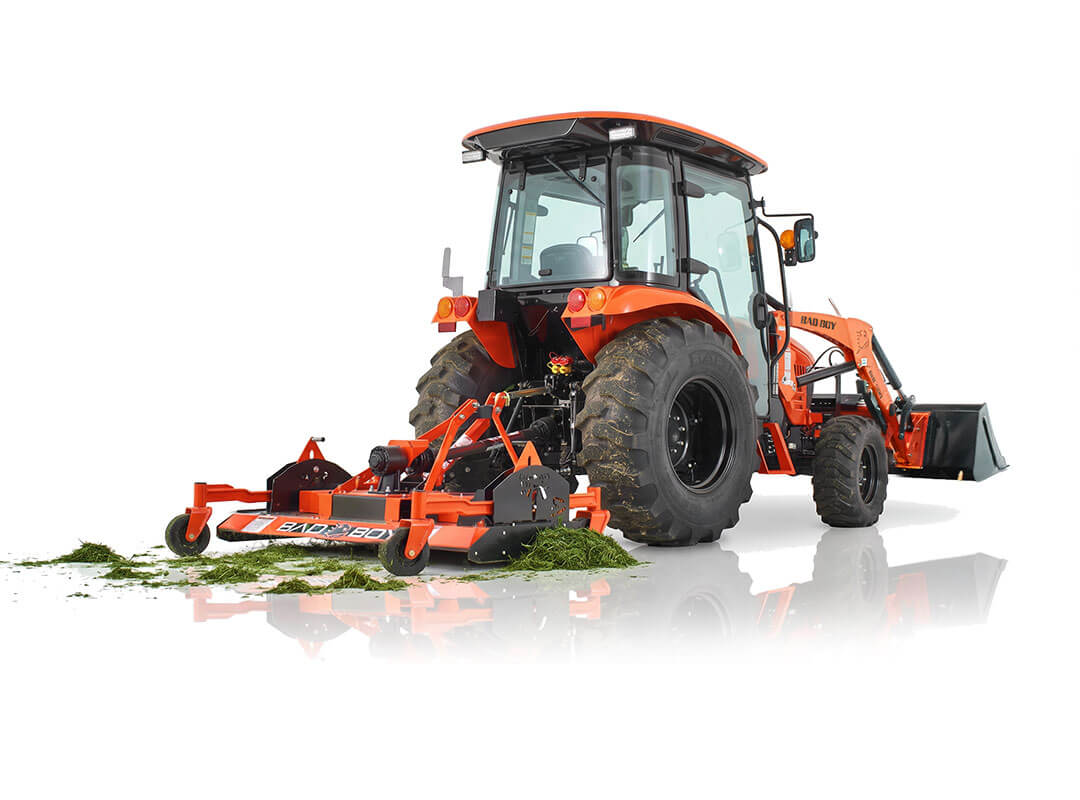

Implements And Cutters
Get the job done with our lineup of implements and cutters. Every Bad Boy Tractor features a tough 3-point hitch and front loader quick attach built for a lifetime of work around the field and farm.
Learn More

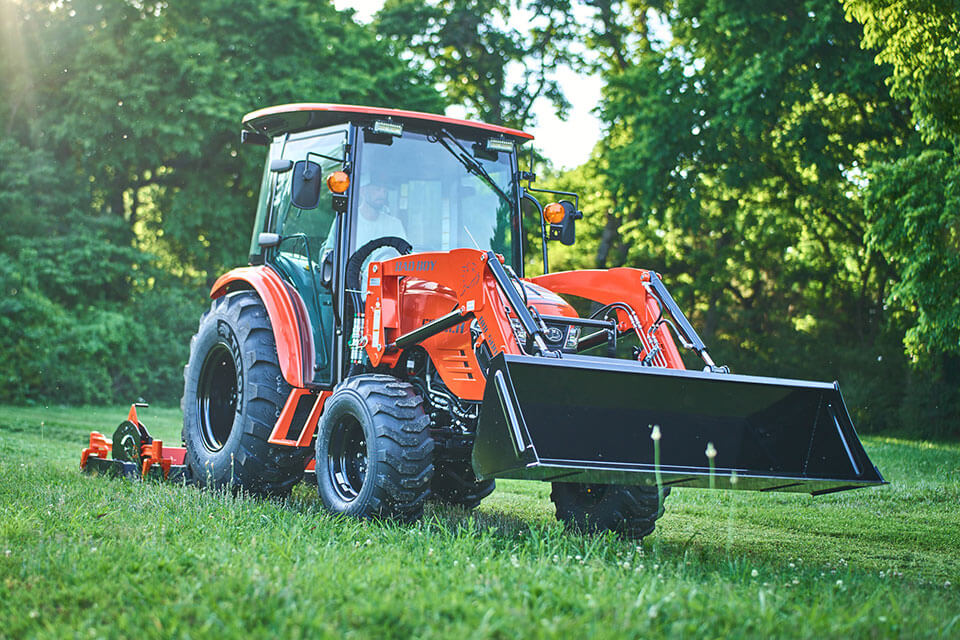

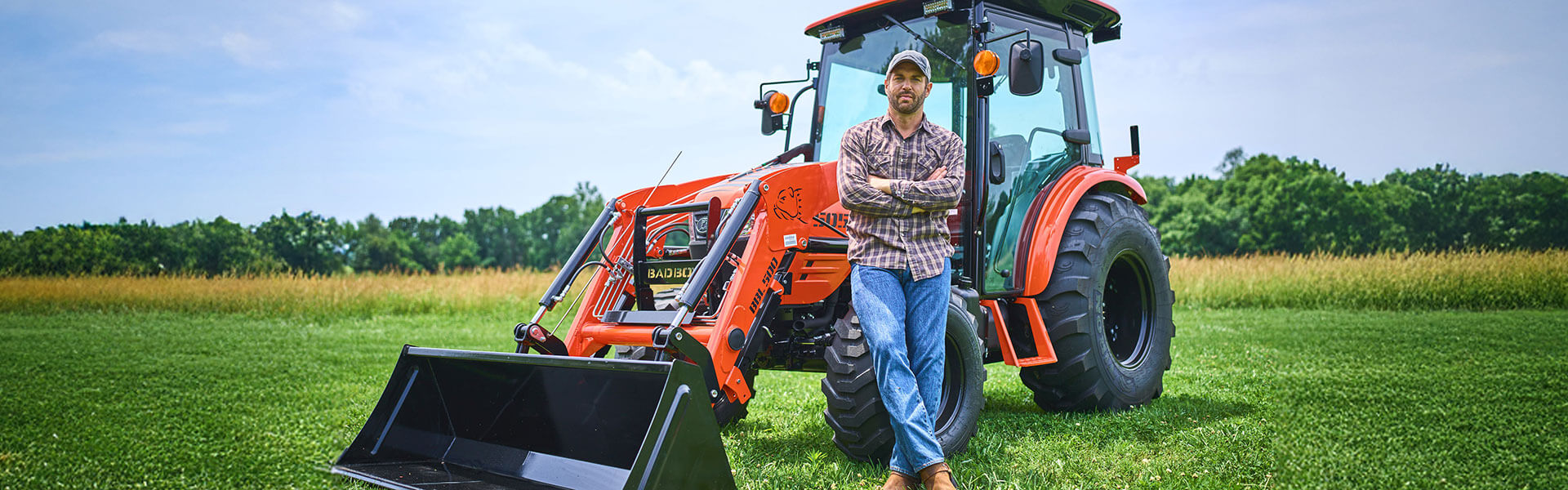

55 Horsepower & 4-Wheel Drive
The Bad Boy 5055 Series Tractor is the big dog, the largest tractor in our Bad Boy line-up. Powered by a 55-horsepower engine with a loader lift capacity of 2700 lbs., this tractor is built to handle the toughest jobs. If pulling power is a priority, this Bad Boy features differential lock, automatically equalizing power to both rear wheels for an added boost. Still want more? Use our selectable 4-wheel drive to engage the front wheels and maximize traction and pulling power. If you want top-of-the-line performance, strength and lifting power, the 5055 is the Bad Boy for you.

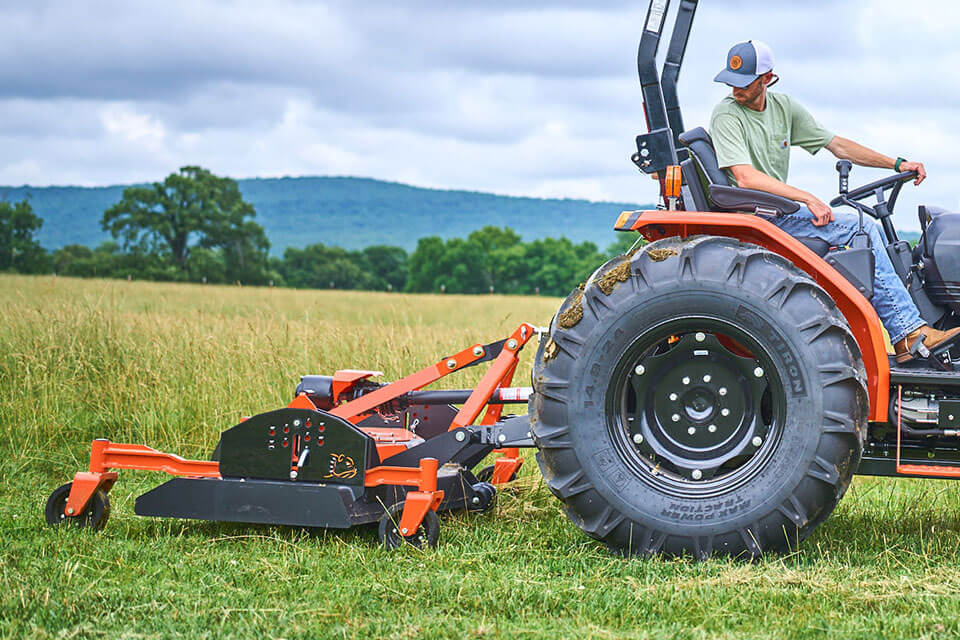

Implements That Make Work Easier
The Bad Boy 5055 Tractor’s tough three-point hitch and front loader quick attach and latch implements are built to our own industry-leading standards. Made from heavy-gauge, welded and fabricated steel, they’re more than ready to pull their weight around your property. The Bad Boy implement line-up includes: Box Blades, Land Graders, Rotary Tillers, Disc Harrows, Forks and Hitches, Front Grapples, Grader Blades, Landscape Rakes and Rotary Brush Cutters. They’re built for a lifetime of work around the field and farm and make getting the job done quicker and easier than ever before, especially with 55 horsepower under the hood.

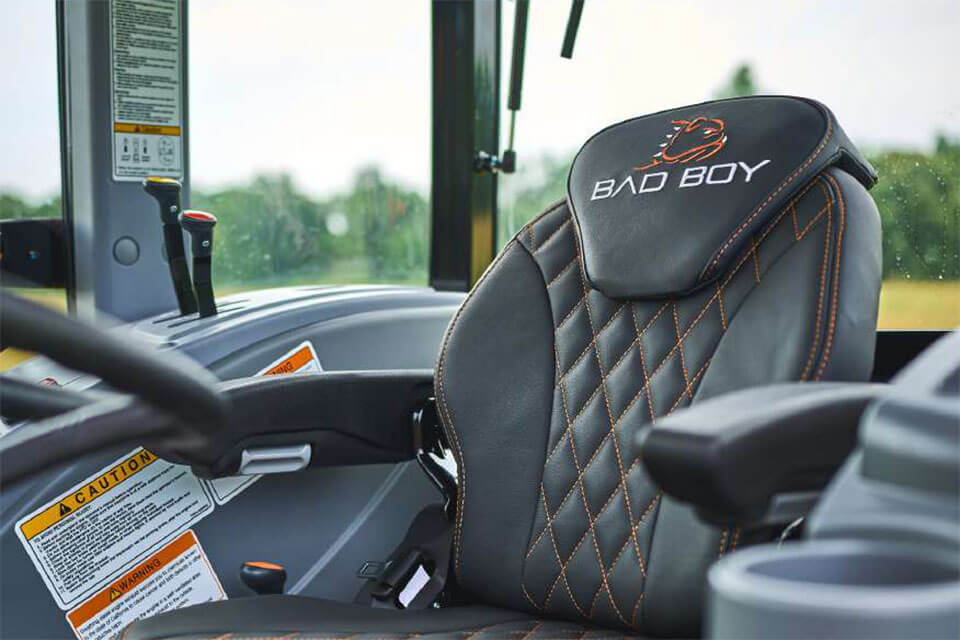

Take A Seat On Your Throne
You’ll feel like royalty as soon as you climb onto Bad Boy’s heated, leather seat. It’s perfectly cushioned and supportive, so you can work with an attitude all day long. If you’re worried about the weather, surround your throne with an optional, climate-controlled cab, and protect yourself from the elements. You’ll also feel comfortable knowing you’re sitting atop a chariot of heavy-duty, Bad Boy steel. From the hood to the fenders to the cast iron axles, the 5055 is built with the same quality and dependability you’ve come to expect from Bad Boy. It even comes with a 6-year powertrain warranty.

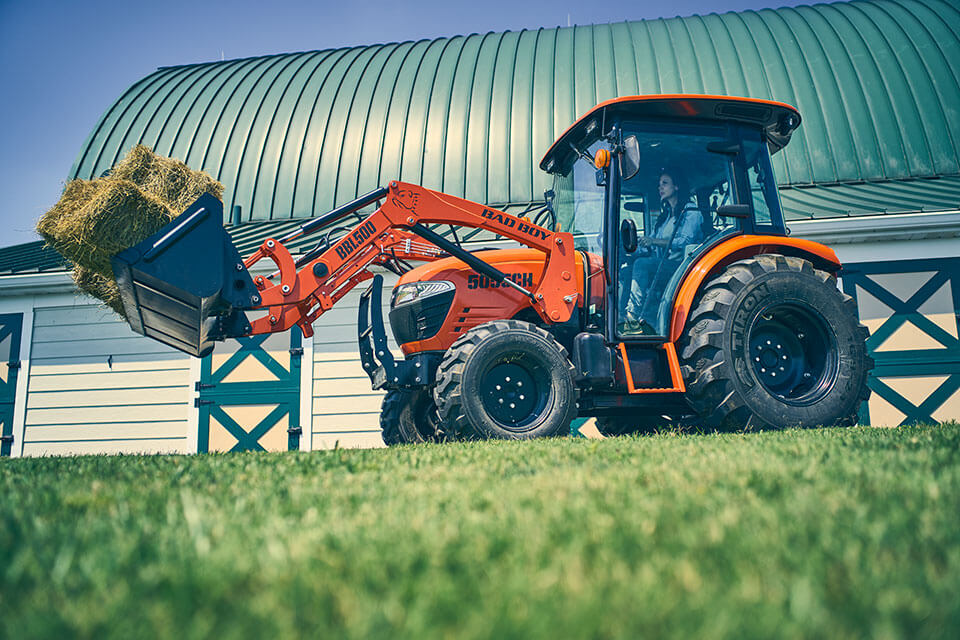

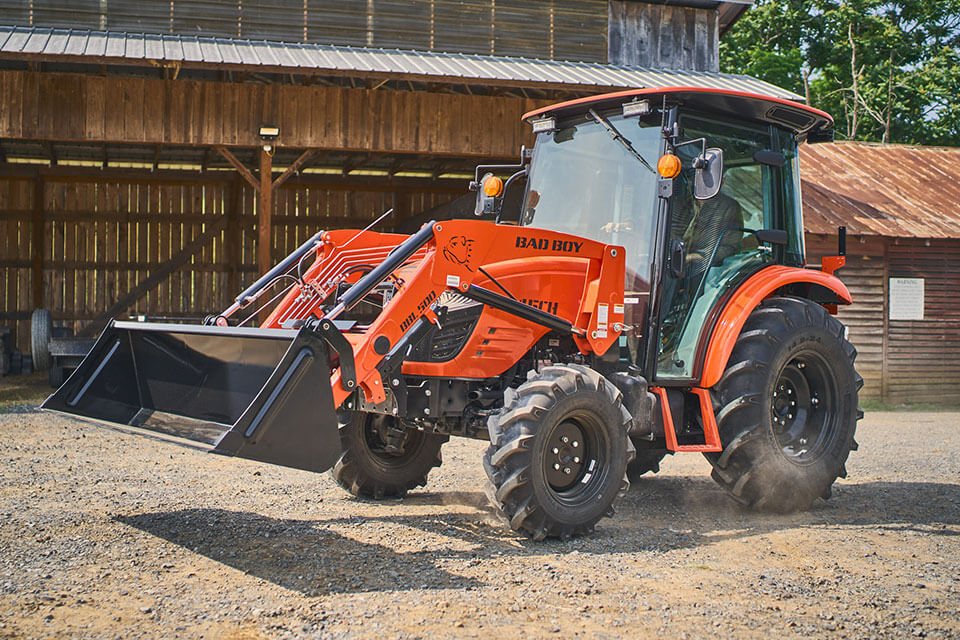

Drive Your Way
The Bad Boy 5055 Tractor gives you the choice between two excellent transmissions. How you decide to ride is up to you. Go with our Hydro Max Transmission, which automatically increases engine RPMs evenly with the push of a pedal. Or opt for the Shuttle Shift Transmission, an ideal choice for quick, directional changes and maneuverability. Both options come with power steering and cruise control, so you can enjoy maximum performance with minimal effort.
