- Featuring:
- Vanguard 40 HP EFI
- Forward Visiblity To The Bucket Edge
- Low Ground Compaction Versus Skid Steers
- Wide Cab with Premium Suspension Seat Standard
- Optional Full Enclosed Cab With Heat and Air Additional Features
- 19 GPM Piston-Style Auxiliary Hydraulics
- Universal Quick Attach System for Multiple Implements
- Articulated Steering for Smooth Turns and Less Turf Damage
- Easy Rear Access to Engine, Pumps, and Battery
Payments As Low As
$164.53
Per Month*
Terrain small articulating loader (sal) specs
Download ManualTerrain Engine Options
- Vanguard
- 993cc, 40hp Twin Cylinder Air-cooled EFI/ETC
Terrain Dimensions
- Length (without attachment)
- 89.4"
- Width
- 57.7"
- Height (with/without Beacon)
- 72.4"/75.4"
- Weight
- 3,850 lbs.
Terrain Features
- Rated Operating Capacity
- 1,718 lbs.
- Tipping Load
- 3,437 lbs.
- Breakout Force
- 3,484 lbs.
- Lifting Capacity at Ground Level
- 2,600 lbs.
- Lifting Capacity to 50"
- 2,000 lbs.
- Lifting Height
- 96"
- Hydraulic System
- Auxiliary Piston-style Pump
- Hydraulic Flow
- 19 GPM
- System Relief at Quick Couplers
- 2,900 psi
- Tires
- 26x12.00-12 Turf Tires
- Fuel
- 9.3 Gallons, Gasoline
- Ground Speed (Forward)
- Up To 8.8 mph
Terrain Standard Model Features
- Infinite Variable Flow Control
- Standard
- Universal Quick Attach
- Standard
- Panoramic Rear View Mirror
- Standard
- Automatic Parking Brake
- Standard
- Road Lights and LED Worklights
- Standard
- Multi-function Capable joystick
- Standard
- Magnetic Pump Clutches for Easy Starting
- Standard
- Premium Bad Boy Suspension Seat
- Standard
- Front Remote Hydraulic Coupler
- Standard
- 12V Front Electric Plug
- Standard
- 60" Material Bucket
- Standard
Terrain Premium Model Features
- Hydraulic Quick Attach Lock
- Premium
- Rear Remote Hydraulic Coupler
- Premium
- Electric Differential Lock
- Premium
- Fully Enclosed Cab with Heat and Air
- Premium
Terrain Safety Features
- Operator Interlock Control System
- Standard
- Lap Bar and Seat Presence Switch
- Standard
- Individual Drive Presence Switches
- Standard
- Loader Arm Safety Stop
- Standard
- Backup Alarm and Rotating Beacon
- Standard
- Fully Retractable Seat Belt
- Standard
- ROPS/FOPS Certified
- Standard

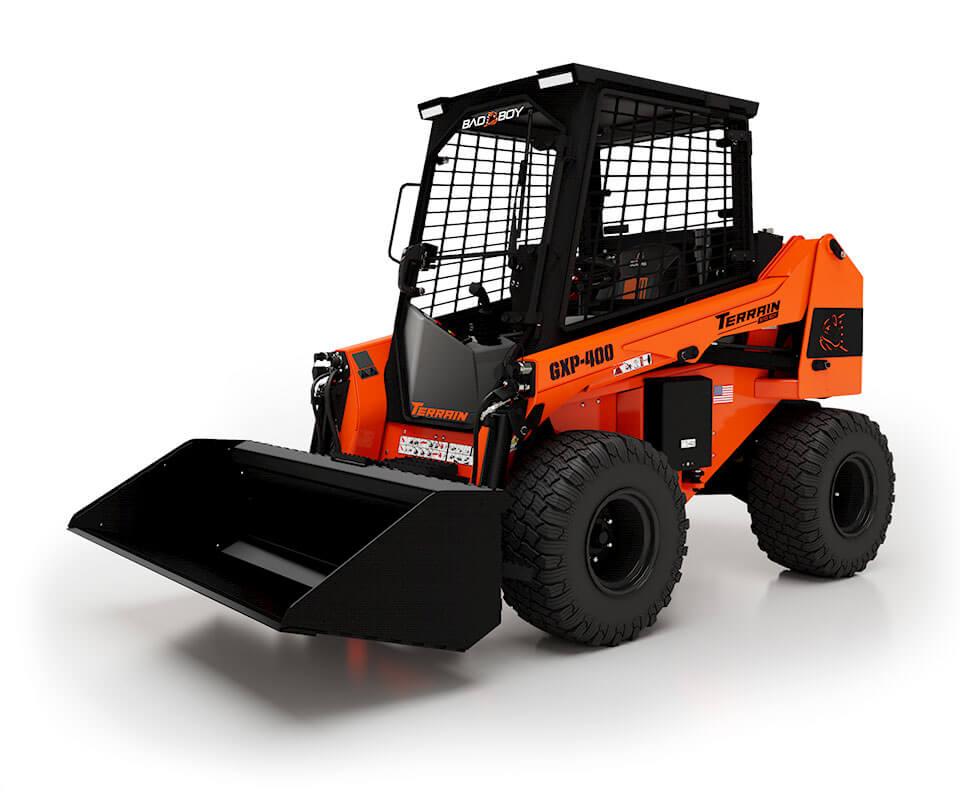

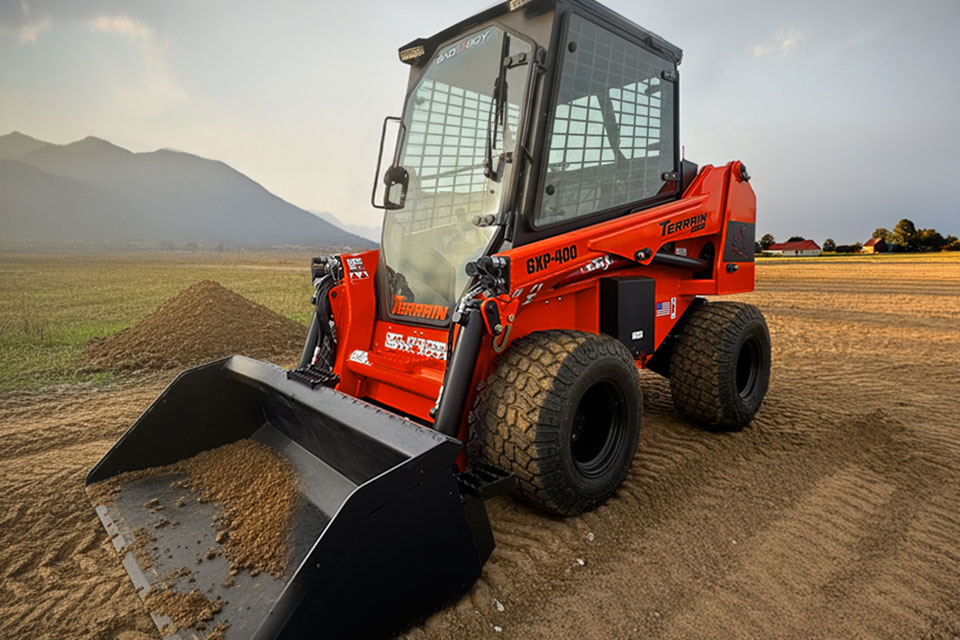

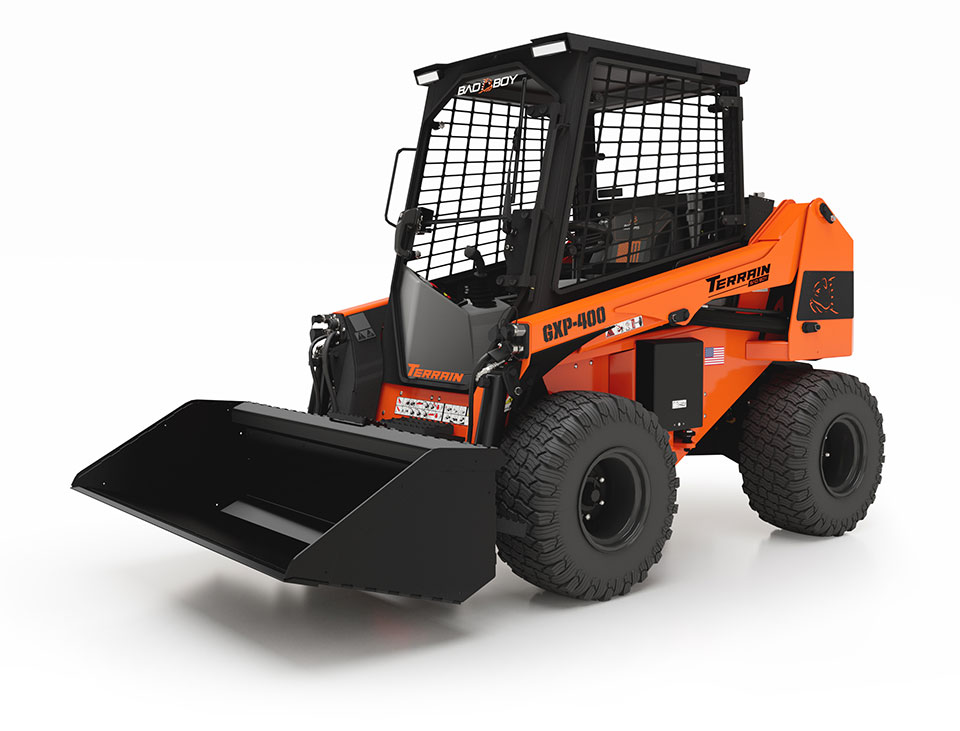

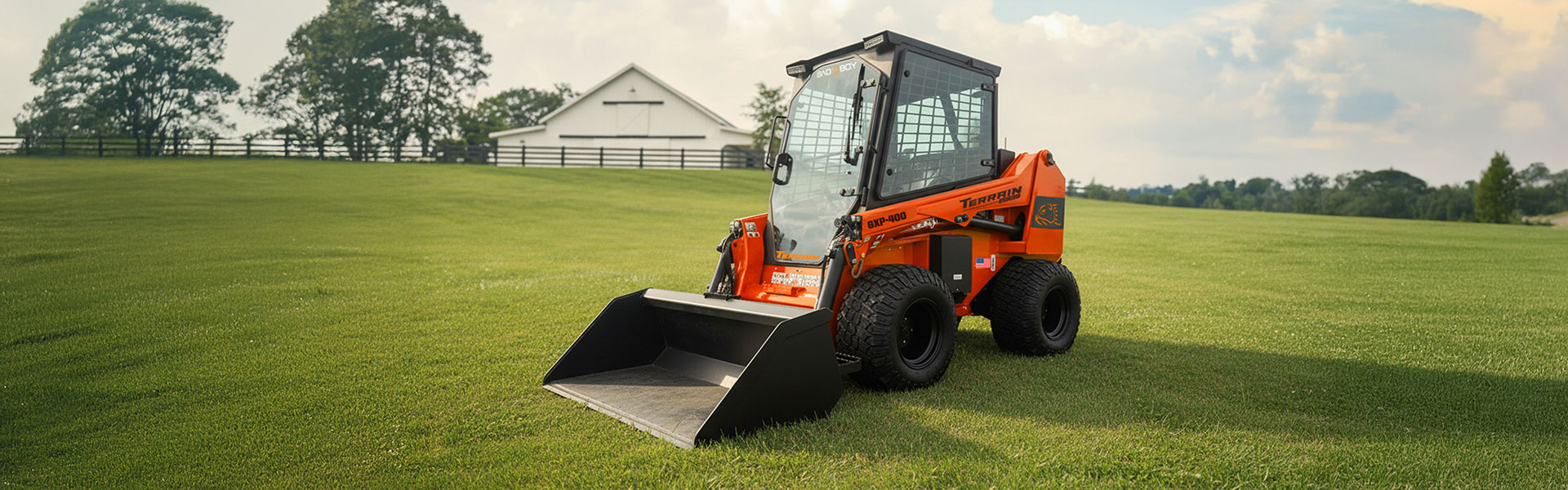

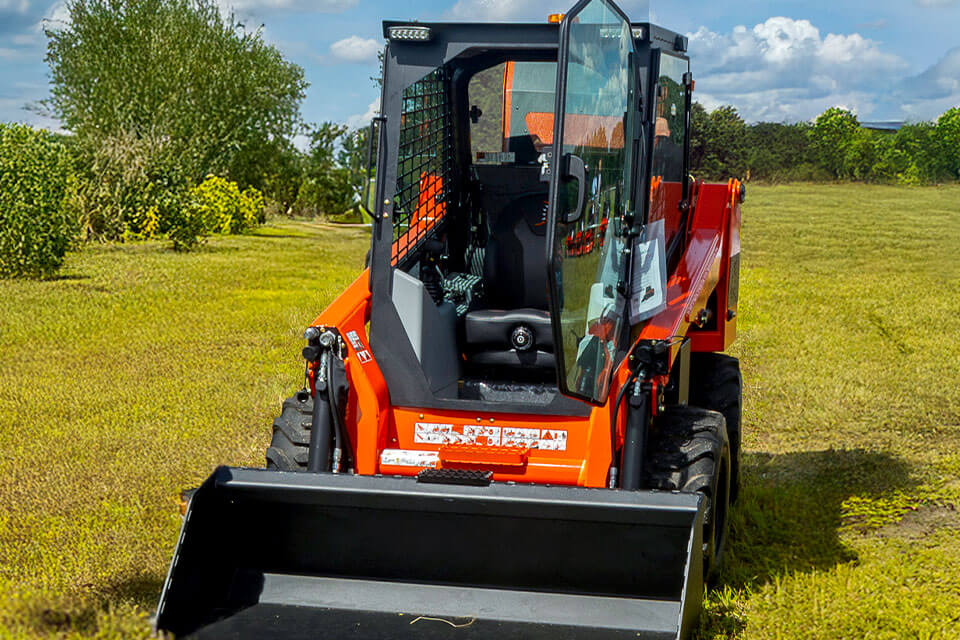

The Next Generation SAL
Do more with the Terrain, the next evolution in small articulating loaders. With unmatched visibility, a smoother ride, and minimal turf disturbance, it’s engineered to outperform skid steers and compact tractors alike.

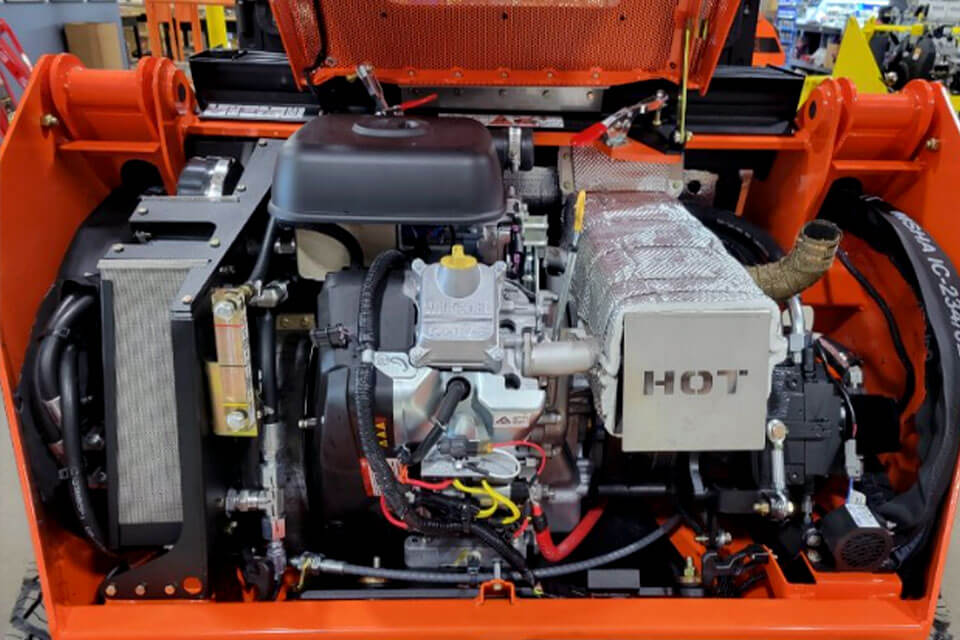

Easy Access, Inside and Out
Maintenance made simple. The Terrain’s smart rear-bay design puts the engine, pumps, and components right where you need them. Quick, open access keeps service time low and uptime high.

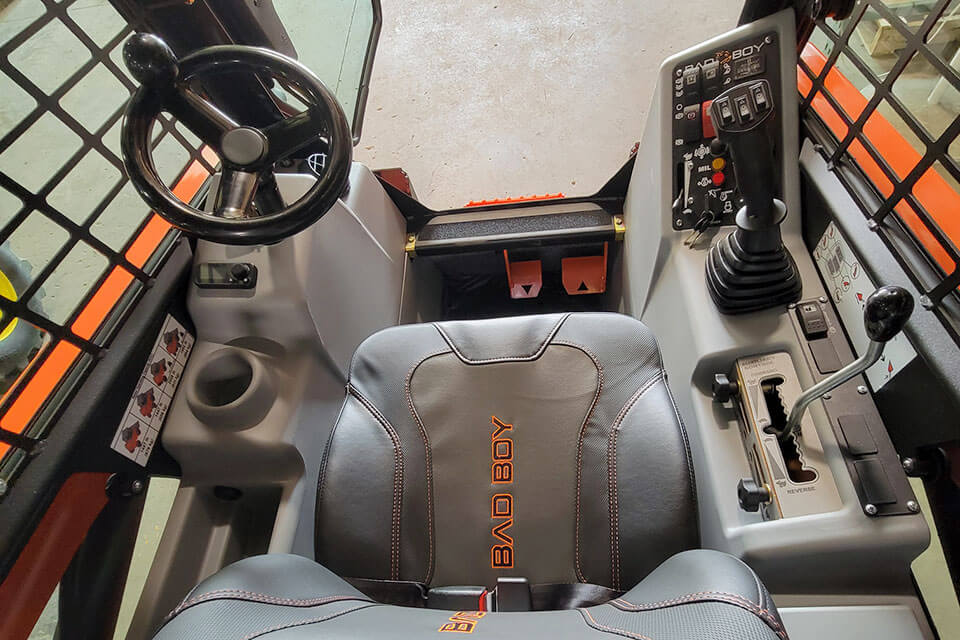

Comfort and Control Your Way
From the premium suspension seat to the intuitive joystick and pedal setup, every detail of the Terrain is built for the operator. Pick the optional enclosed cab with heat and A/C for year-round comfort and performance in any condition.
Versatility That Works As Hard As You Do

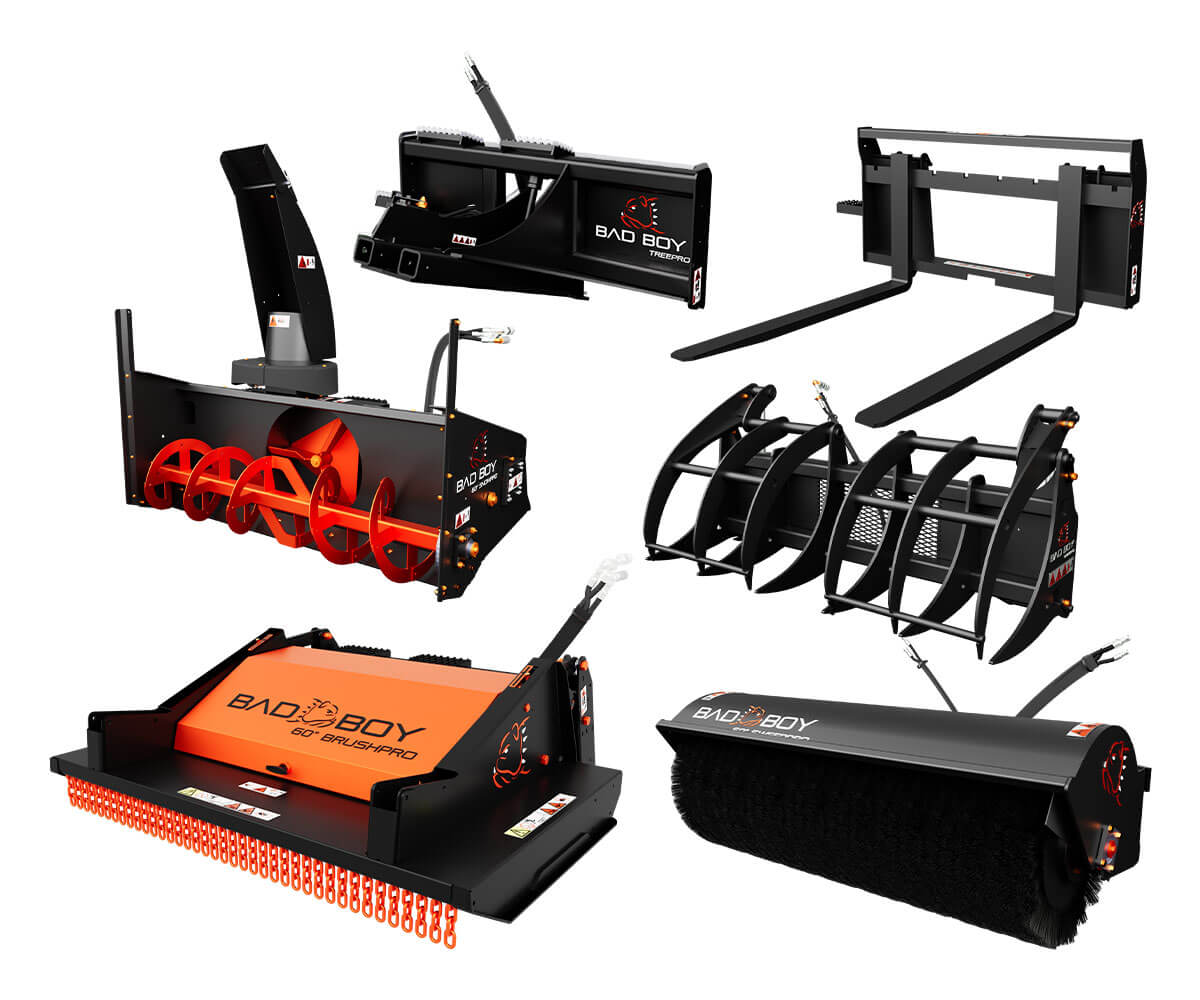

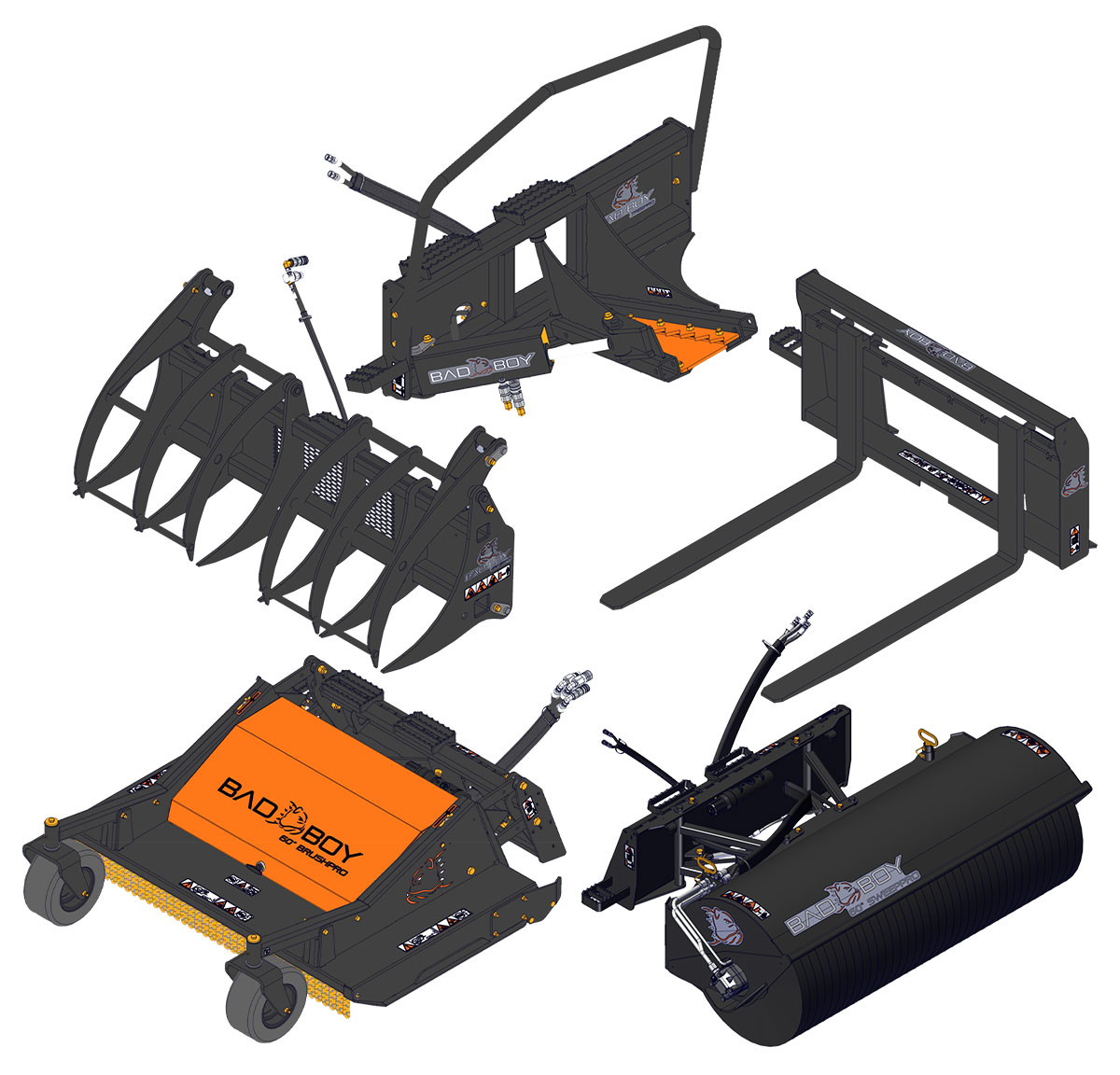

The Terrain is built to handle more than just one job. It comes standard with a 60" material bucket, ready to dig, haul, and load from day one. A full lineup of attachments including grapples, cutters, brooms, mowers, snow blowers, and tree pullers lets you tackle everything from landscaping to cleanup and snow removal with the same dependable machine.
