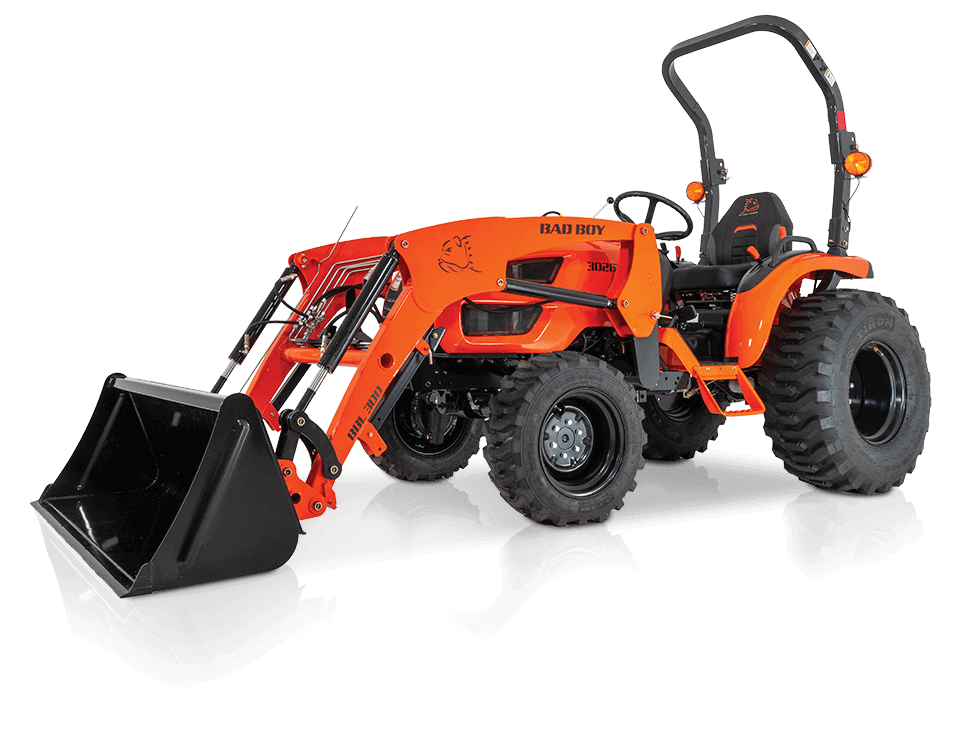

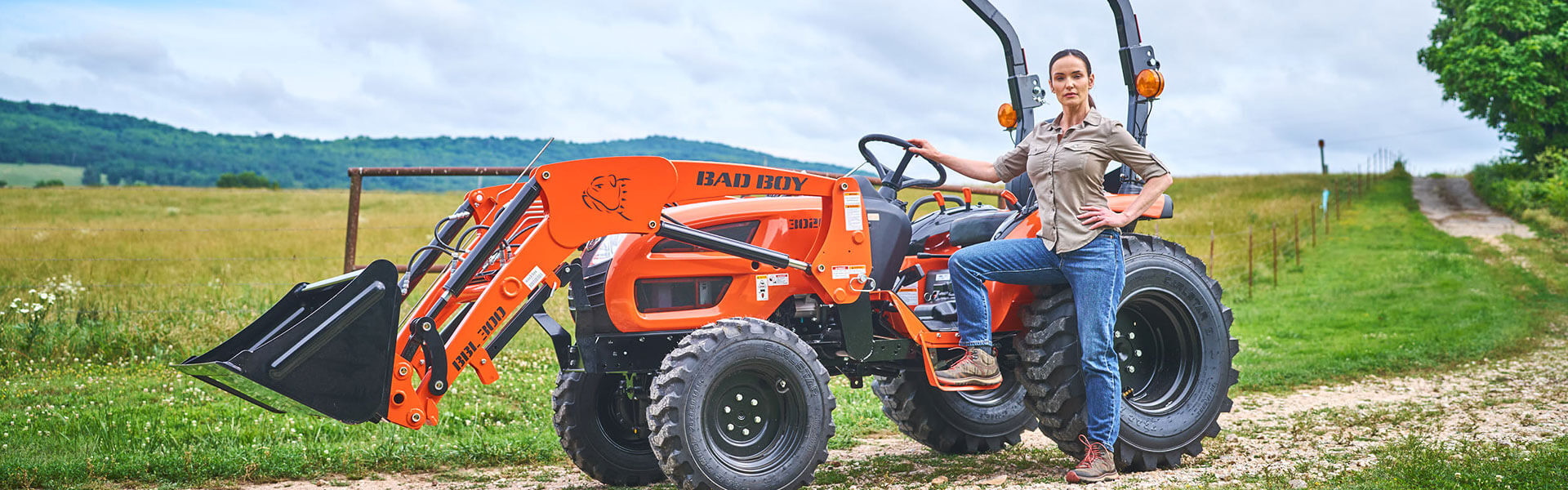

3026
- Featuring:
- 25 Horsepower
- 1,314 lbs. Loader Lift Capacity At Pins
- Hydro Max Transmission
- Dual HST Pedals
- Cast Iron Axles Additional Features
- Reverse Mount Engine
- 3 Range Transmission
- Power Steering
- Selectable 4WD
- Differential Lock
- 6 Year Powertrain Warranty
3026 Tractor Specs
Download Manual3026 Engine

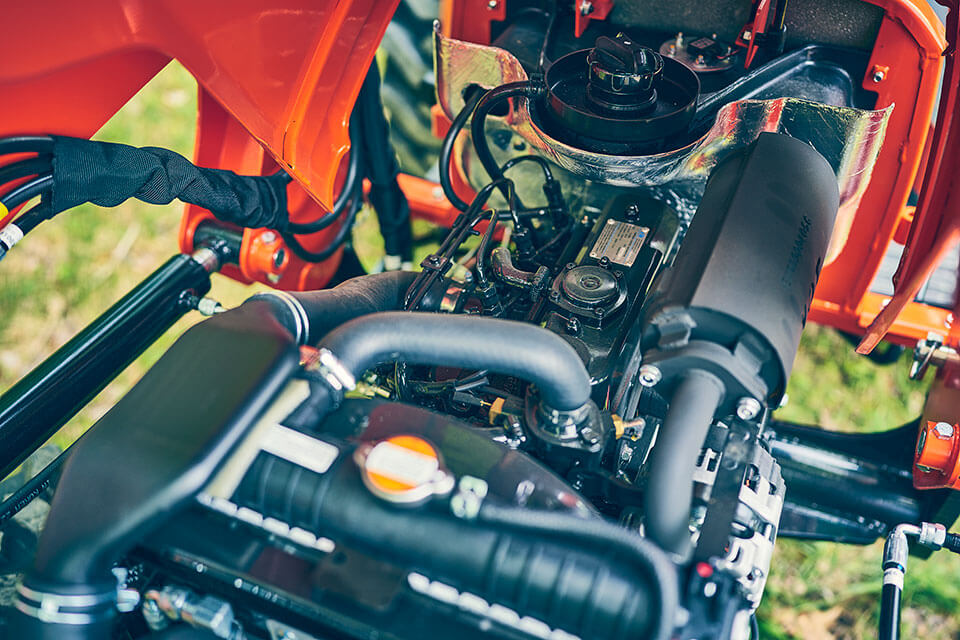

- Engine
- 3 Cylinder, Water-Cooled, Diesel
- Engine HP @ RPM
- 24
- Displacement (in.)
- 71.7
- Number Of Cylinders
- 3
- Fuel Tank (gal.)
- 6.0
3026 Drivetrain
- Transmission
- HST
- Number Of Speeds
- 3 Range
- Clutch
- Dry Single Plate
- Brakes
- Wet, Multi-Disc
3026 Hydraulics
- Type
- Power Assisted Hydro-Static
- Total Hydraulic Flow (Power Steering + Implement)
- 7.4 (3.1+4.3) / 28.1 (11.7+16.4)
- 3-Point Hitch
- Cat 1
- Rear Remote Valve
- Optional (Up To 1)
- 3-Point Hitch Lift Capacity @ 24" Behind Lift Point @ Ball Ends (lbs.)
- 650
3026 Dimensions
- Overall Length
- 110"
- Overall Width
- 53.8"
- Overall Height
- 91.4"
- Wheelbase
- 65.7"
- Minimum Ground Clearance
- 16.4"
- Weight
- 2,106 lbs.
3026 PTO
- Type
- Live
- Rear (Mid) PTO Speed
- 540/960
- PTO HP
- 18
3026 Electrical
- Battery
- 12 V, 540 CCA
- Alternator
- 12 V, 50 A
3026 Wheels & Tires
- IND (Front)
- 25X8.50-14
- IND (Rear)
- 14X17.5

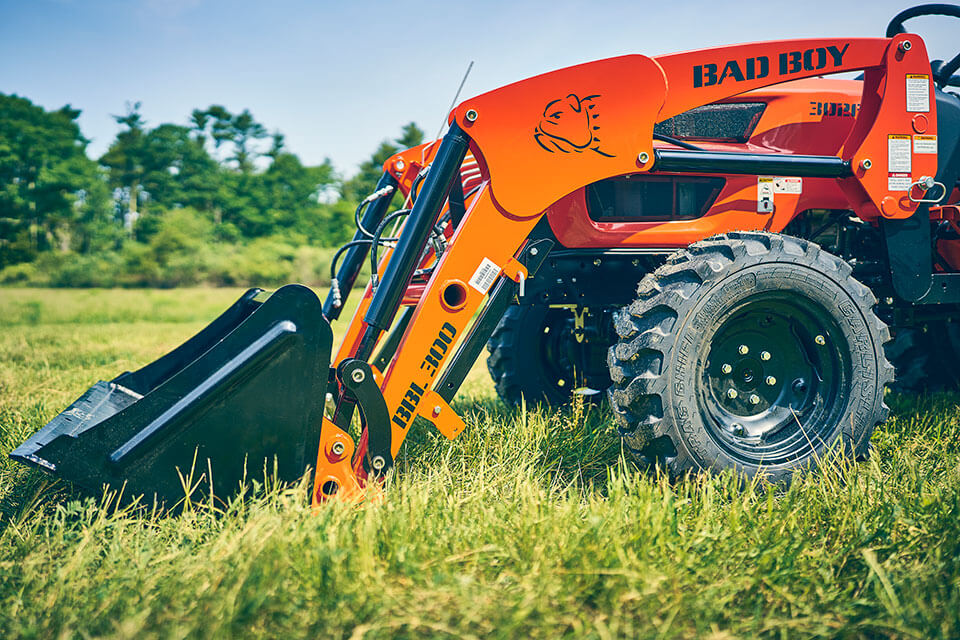

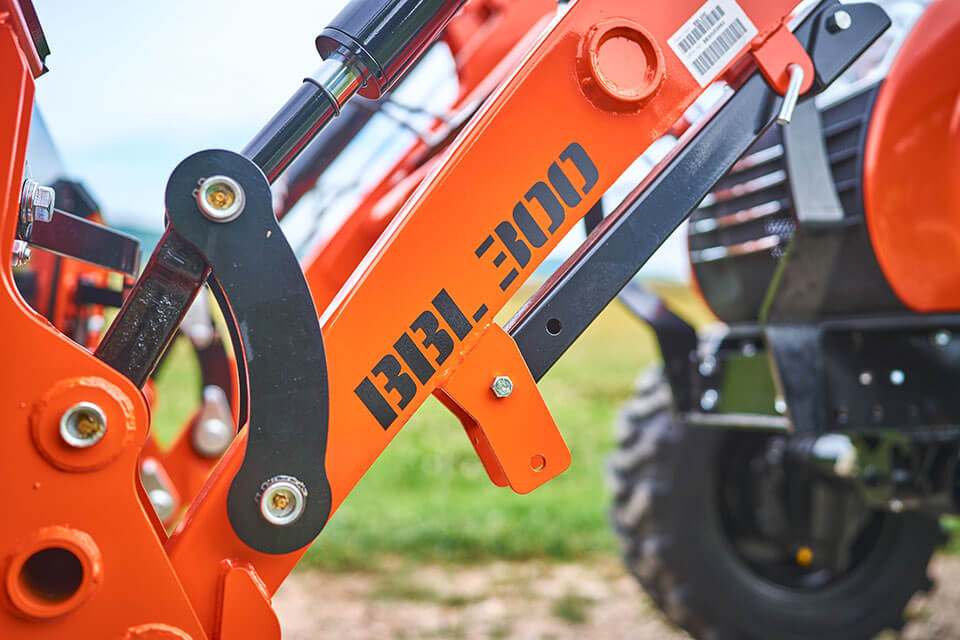

3026 Loader - Model BBL300
- Standard Bucket Size (in.)
- 54
- Maximum Lift Height (in.)
- 86
- Dig Depth (in.)
- 4.2
- Lift Capacity To Full Height At Pivot Pin (lbs.)
- 1,533
- Breakout Force (lbs.)
- 1,960
- Shipping Weight (lbs.)
- 654
3026 Backhoe - Model BBH200
- Standard Bucket Size (in.)
- 12
- Type
- Subframe-Mounted, Quick Attach
- Maximum Dig Depth (in.)
- 76
- Dig Force Bucket (lbs.)
- 2,050
- Shipping Weight (lbs.)
- 827

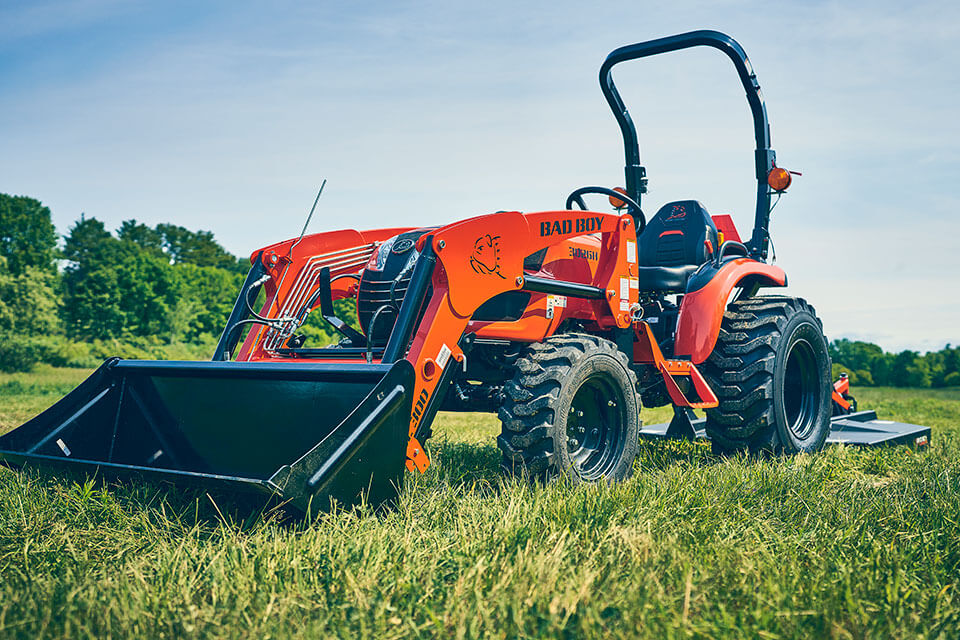

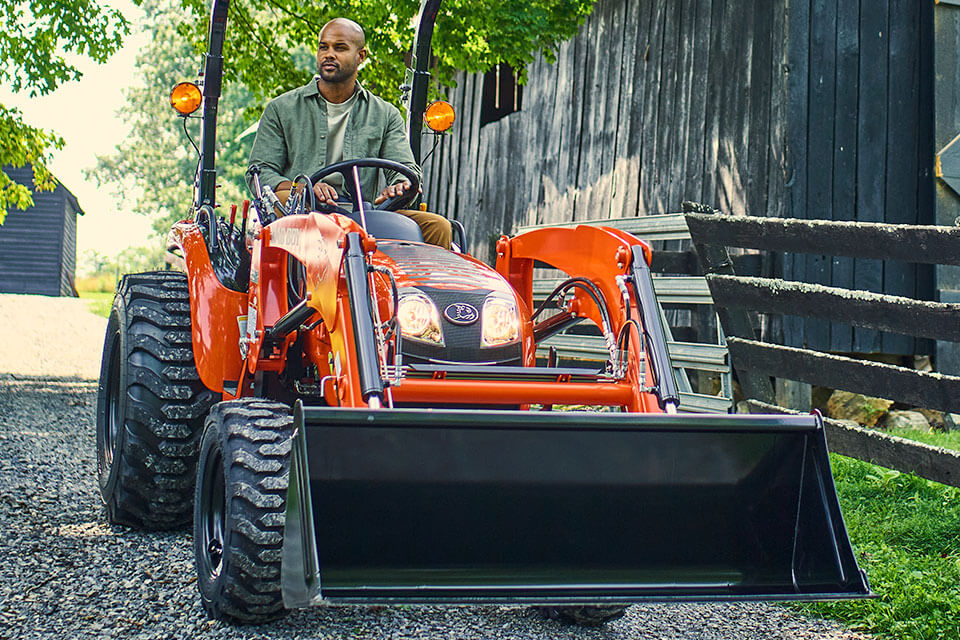

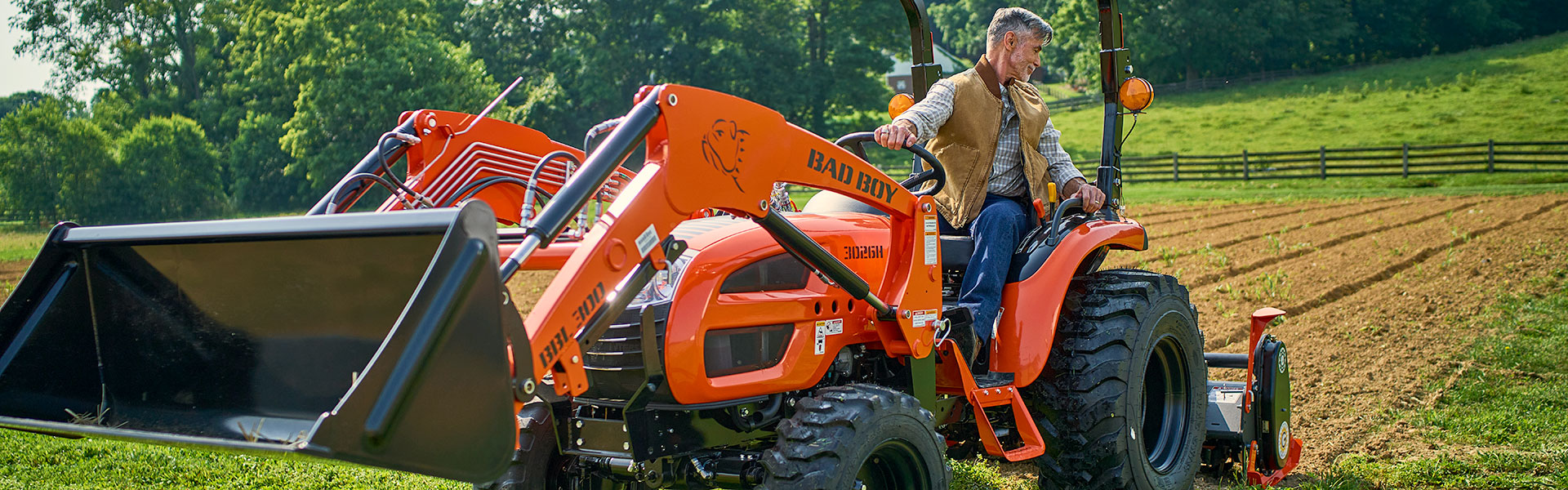

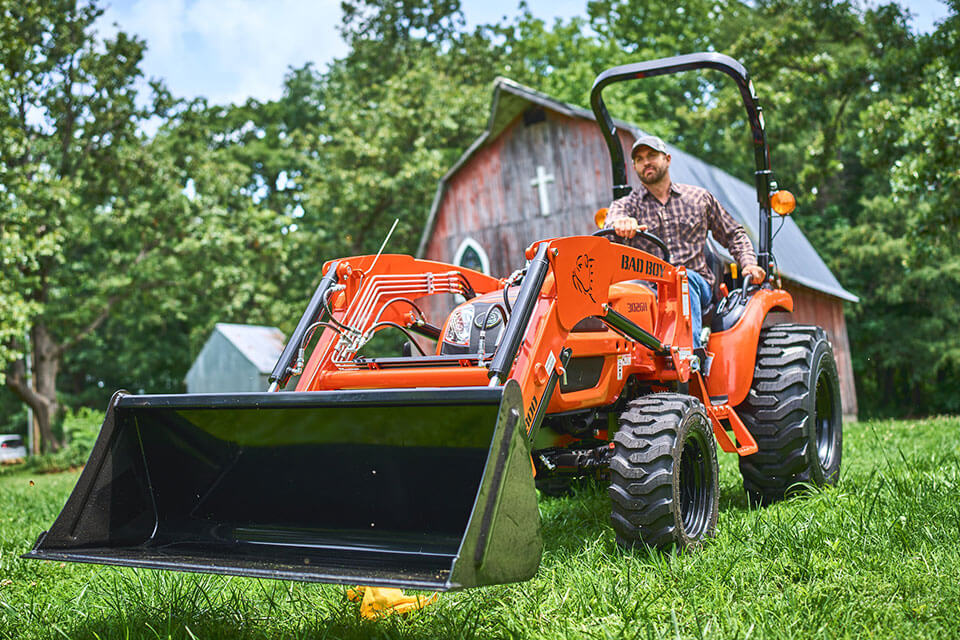

Performance Meets Strength
The 3026 carries unbeatable Sub-Compact and Compact performance for your farm, business or property. The longer frame size, larger tires and higher ground clearance can handle just about any workload you throw at it.

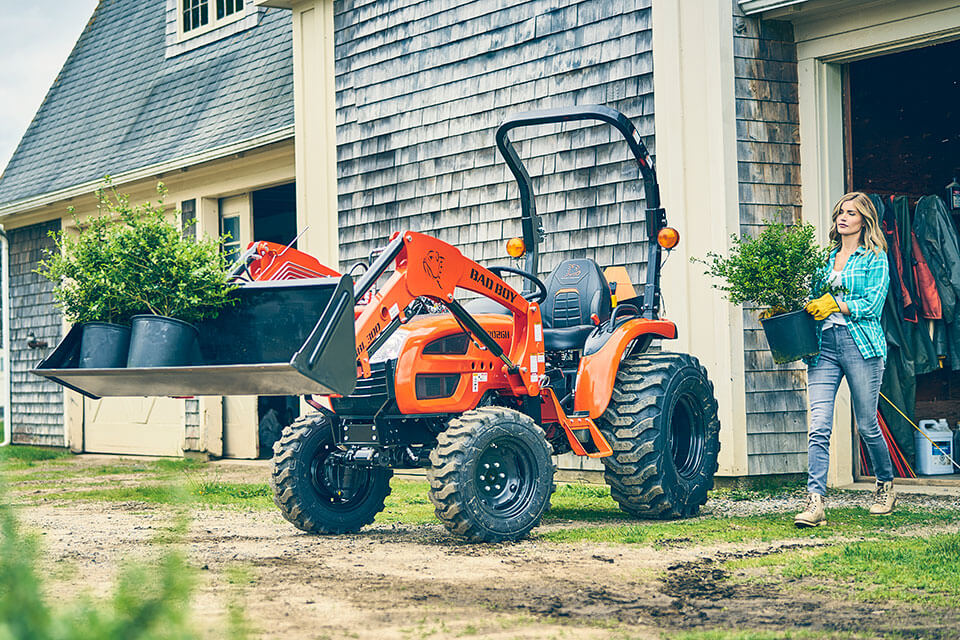

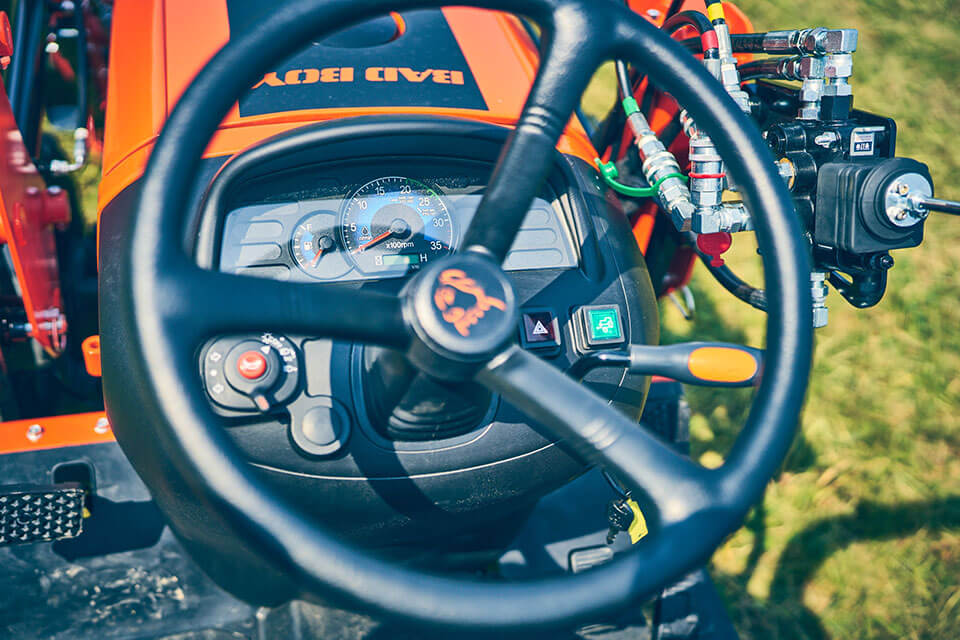

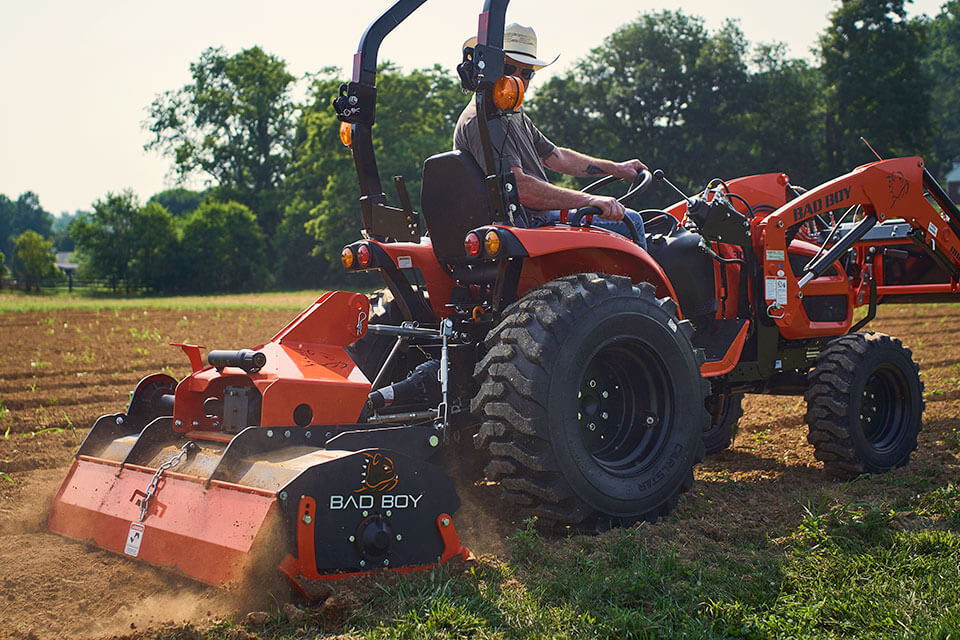

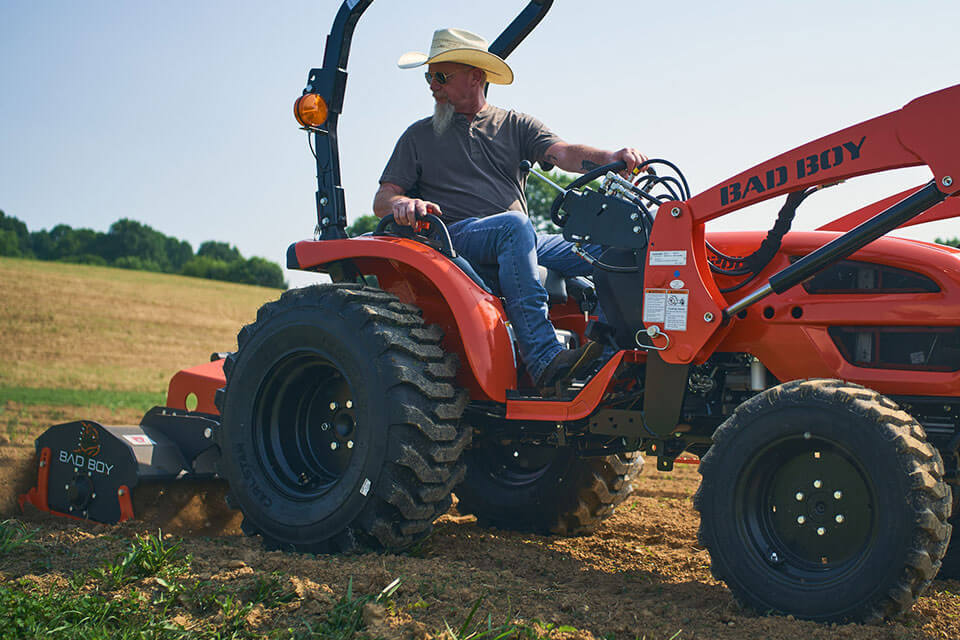

Hard Work Made Easy
The power is in your hands with the easy-to-read digital control display. Operate anything from the PTO to the front loader, right at your fingertips. Power steering makes the job even easier with effortless direction control.

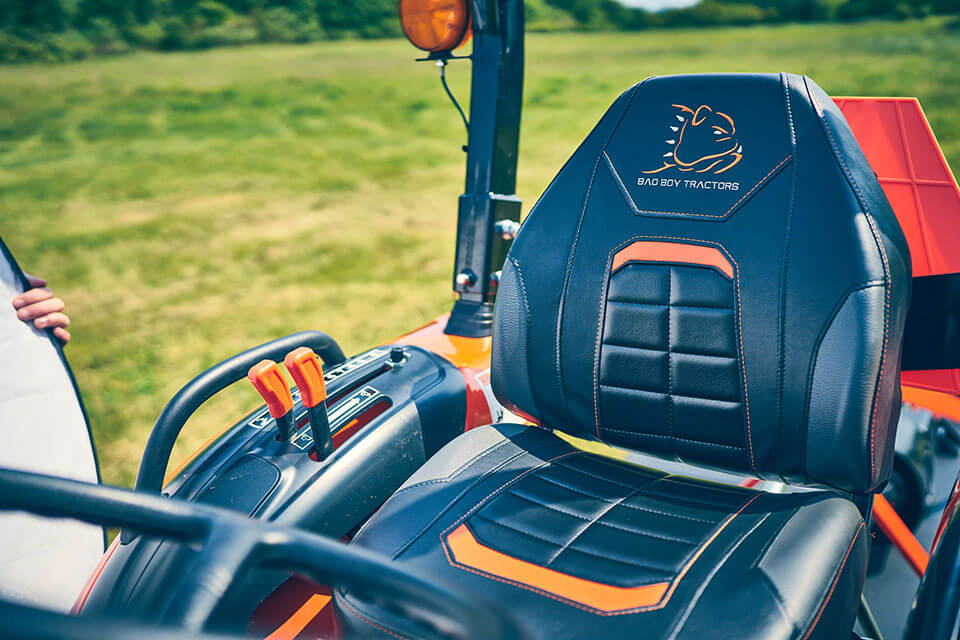

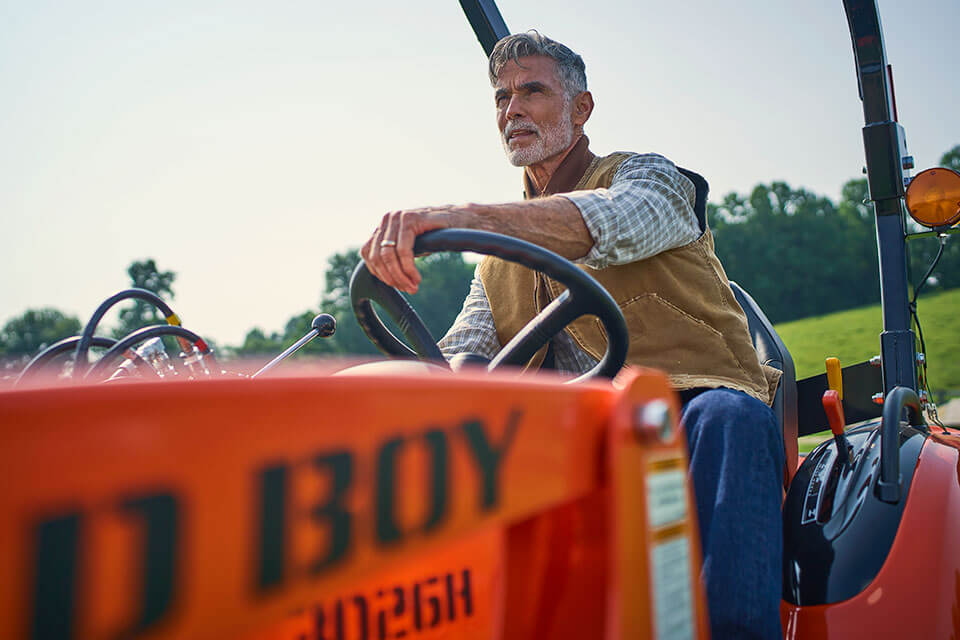

You're in the Driver's Seat
Every Bad Boy features legendary comfort and quality. The premium seat reduces fatigue so you can keep pushing forward. The adjustable seat flips up and back for ideal rear backhoe operation.

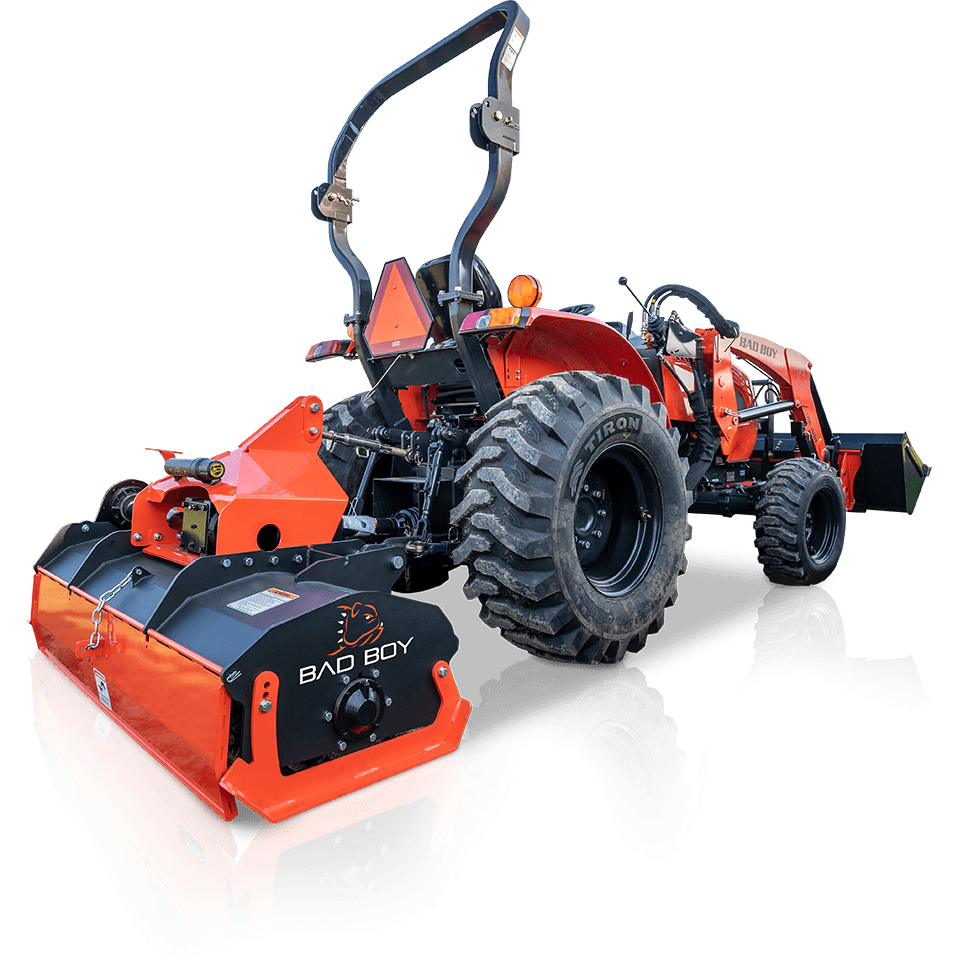

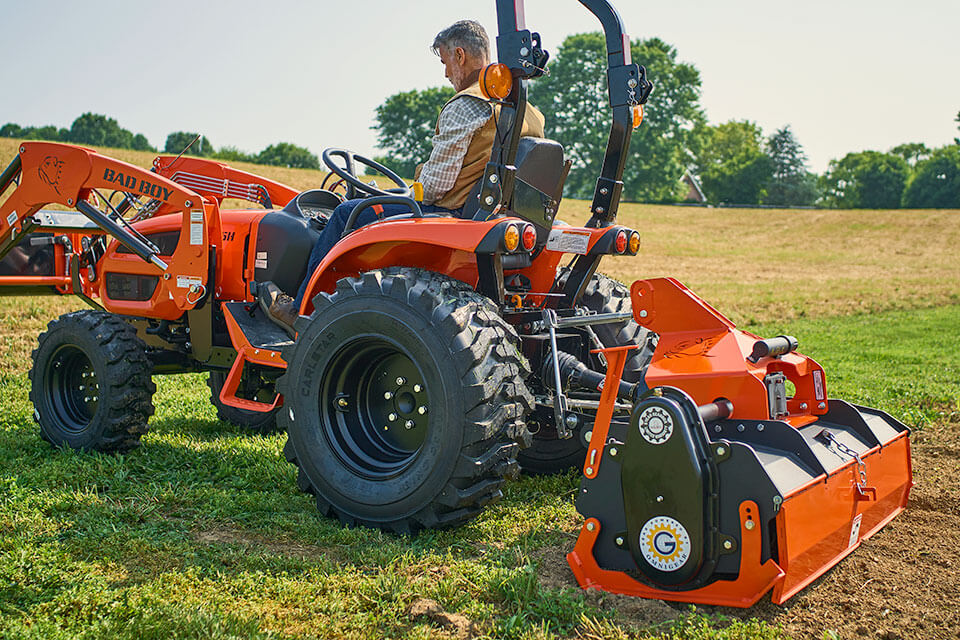

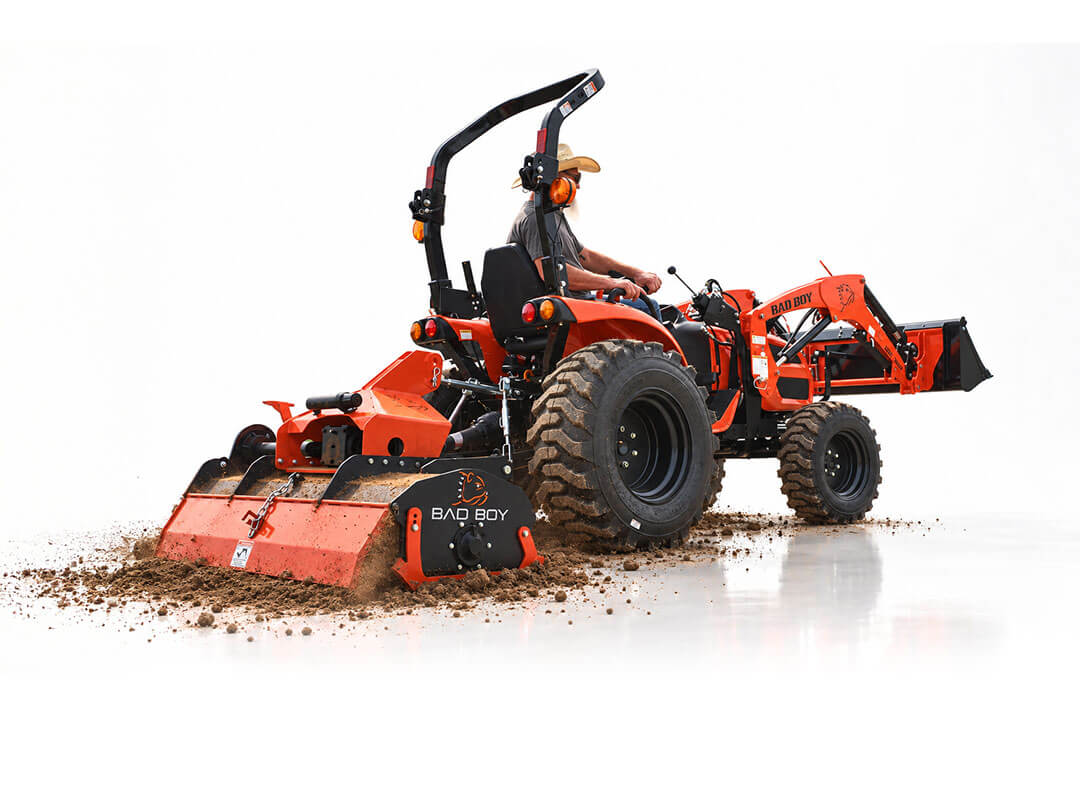

Implements And Cutters
Get the job done with our lineup of implements and cutters. Every Bad Boy Tractor features a tough 3-point hitch and front loader quick attach built for a lifetime of work around the field and farm.
