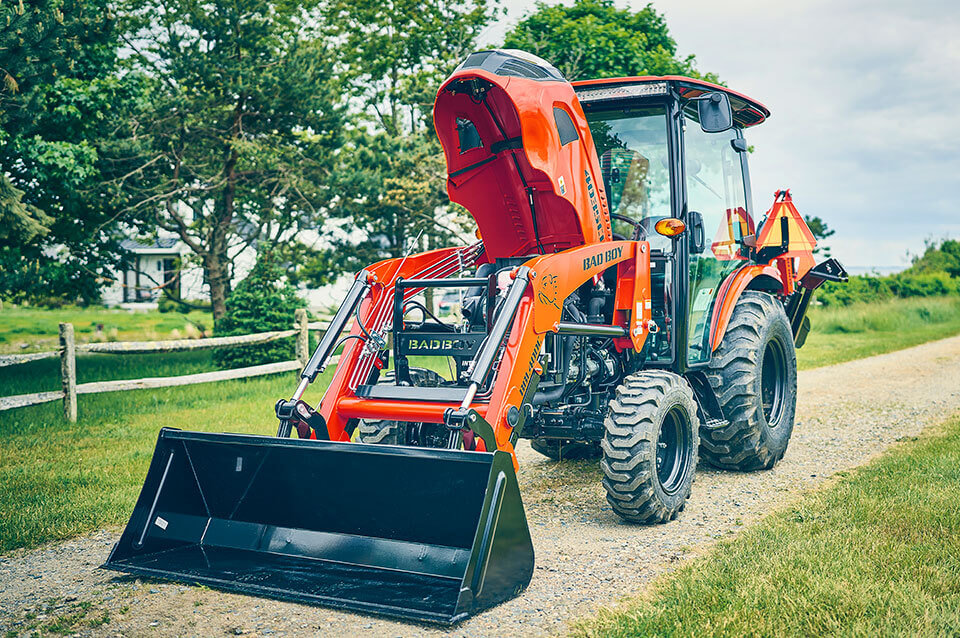

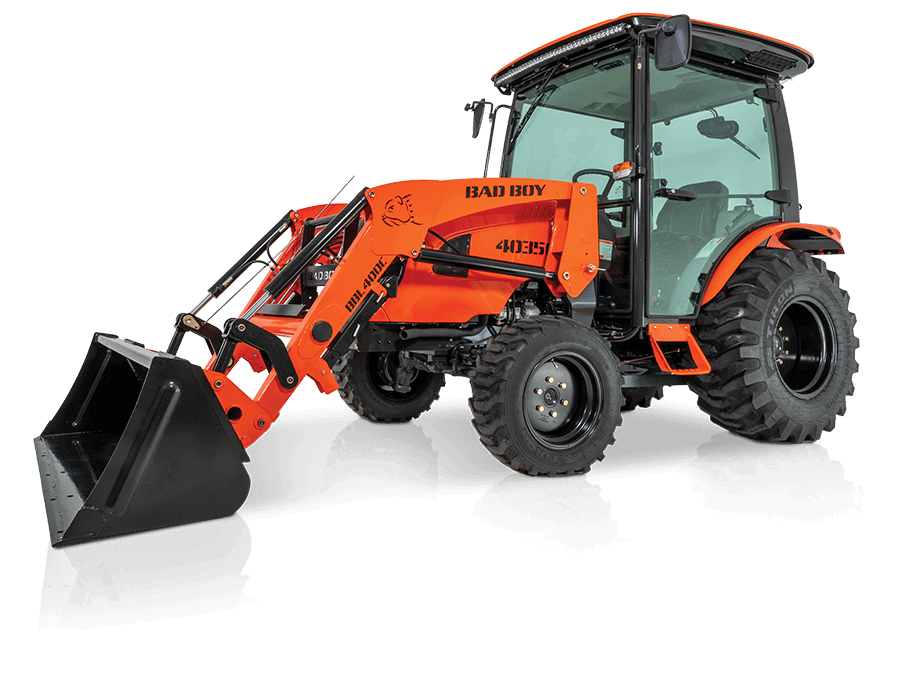

4035
- Featuring:
- 35 Horse Power
- 2,200 lbs. Loader Lift Capacity At Pins

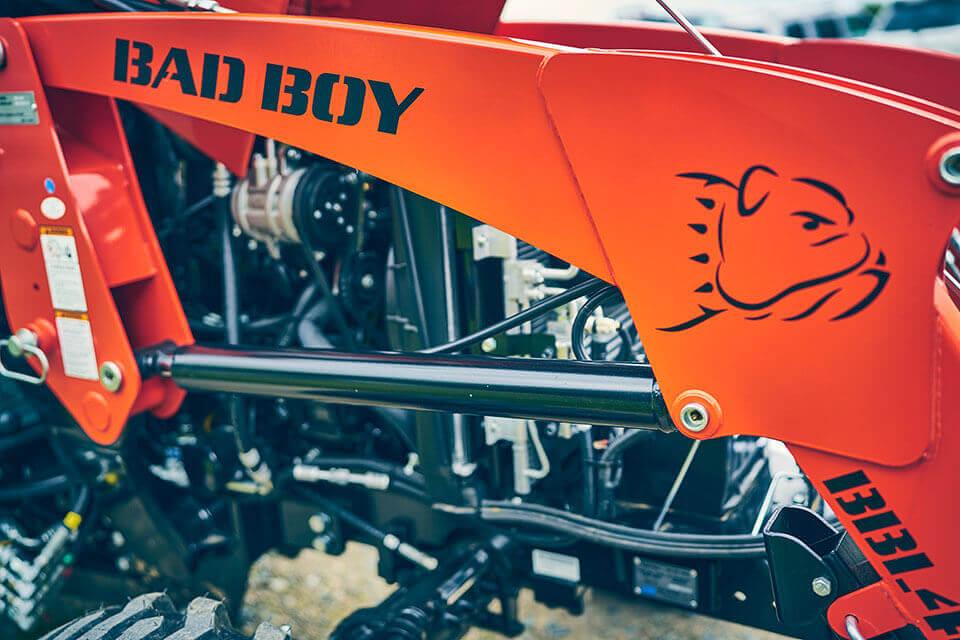

- Metal Hood and Fenders
- Cast Iron Axles
- Factory Cab with Heat and Air Available Additional Features
- Easy to adjust pin style stablizers
- Cruise Control
- Hydro Max Transmission
- Dual HST Pedals
- 3 Range Transmission
- Independent PTO
- Power Steering
- Selectable 4wd
- Differential Lock
- 6 Year Powertrain Warranty
4035 Tractor Specs
Download Manual4035 Engine
- Engine
- 3 Cylinder, Water-Cooled, Diesel
- Engine HP @ RPM
- 35
- Displacement (in.)
- 104.5
- Number Of Cylinders
- 3
- Fuel Tank (gal.)
- 7.1
4035 Drivetrain
- Transmission
- HST
- Number Of Speeds
- 3 Range
- Clutch
- No
- Brakes
- Wet, Multi-Disc
4035 Hydraulics
- Type
- Hydro-Static Power Steering
- Total Hydraulic Flow (Power Steering + Implement)
- 12.6 (4.4+8.2)
- 3-Point Hitch
- Cat 1
- Rear Remote Valve
- Optional (Up To 2)
- 3-Point Hitch Lift Capacity @ 24" Behind Lift Point @ Ball Ends (lbs.)
- 1,100
4035 Dimensions
- Overall Length
- 134.88"
- Overall Width
- 4035H - 56.7" | 4035CH - 55.6"
- Overall Height
- 104.06"
- Wheelbase
- 65.7"
- Minimum Ground Clearance
- 13.1"
- Weight
- 4035H - 3,164 lbs. | 4035CH - 3,551 lbs.
4035 PTO
- Type
- Independent
- Rear (Mid) PTO Speed
- 540
- PTO HP
- 29.5
4035 Electrical
- Battery
- 12 V, 540 CCA
- Alternator
- 12 V, 50 A
4035 Wheels & Tires
- IND (Front)
- 28X8.50-15
- IND (Rear)
- 43X16.00-20

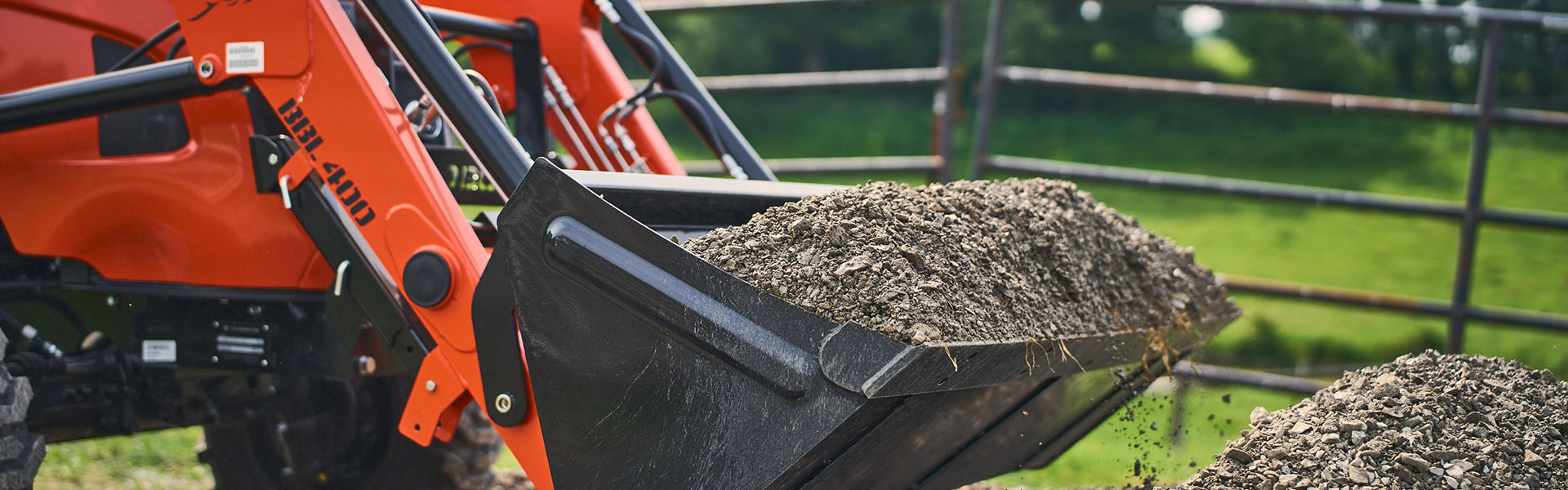

4035 Loader - Model BBL400
- Standard Bucket Size (in.)
- 62
- Maximum Lift Height (in.)
- 104
- Dig Depth (in.)
- 1.8
- Lift Capacity To Full Height At Pivot Pin (lbs.)
- 2,200
- Breakout Force (lbs.)
- 3,660
- Shipping Weight (lbs.)
- 1,007

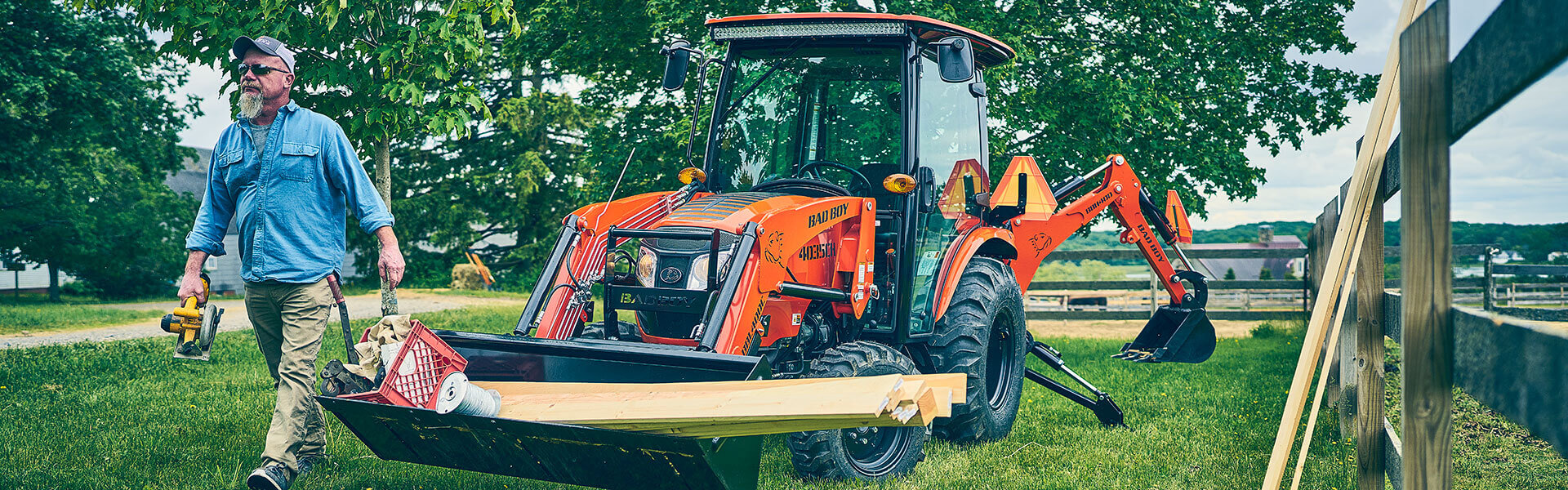

4035 Backhoe - Model BBH400
- Standard Bucket Size (in.)
- 16
- Type
- Subframe-Mounted, Quick Attach
- Maximum Dig Depth (in.)
- 92.2
- Dig Force Bucket (lbs.)
- 4,380
- Shipping Weight (lbs.)
- 1,270

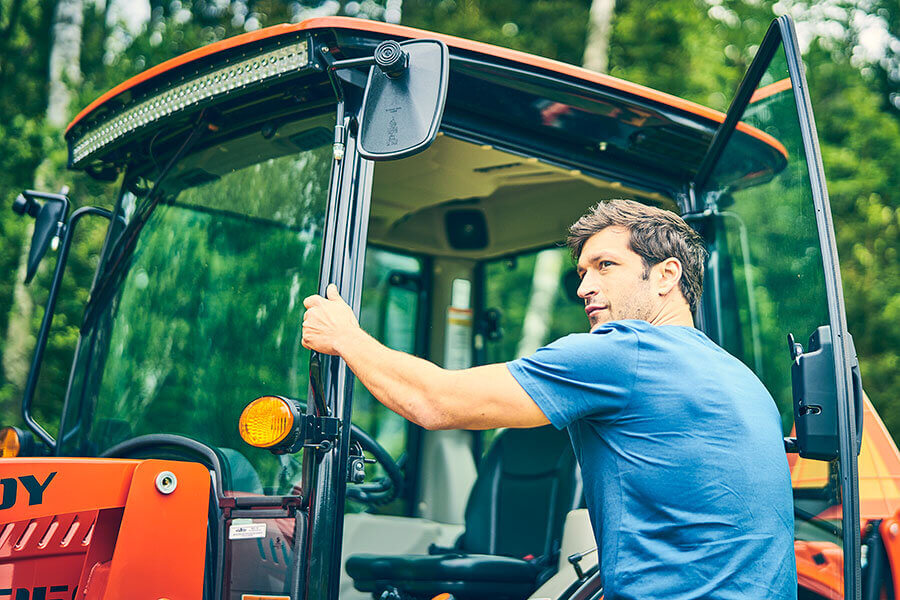

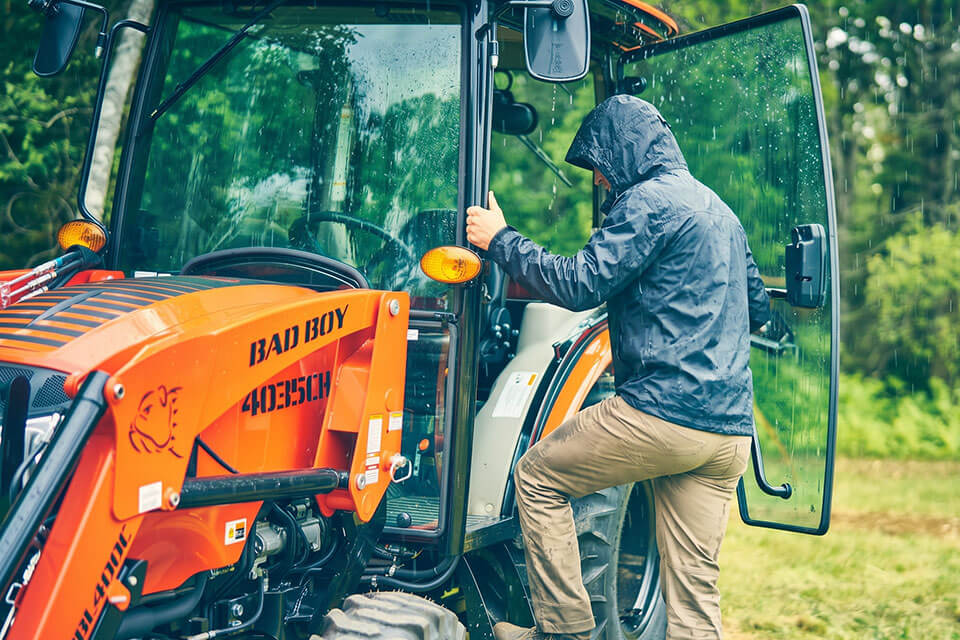

Work in Any Weather
The 4035 Series is available with or without a fully climate-controlled, all-weather cab. So bring on the rain, snow or blistering heat because nothing can stop you from working with an attitude.

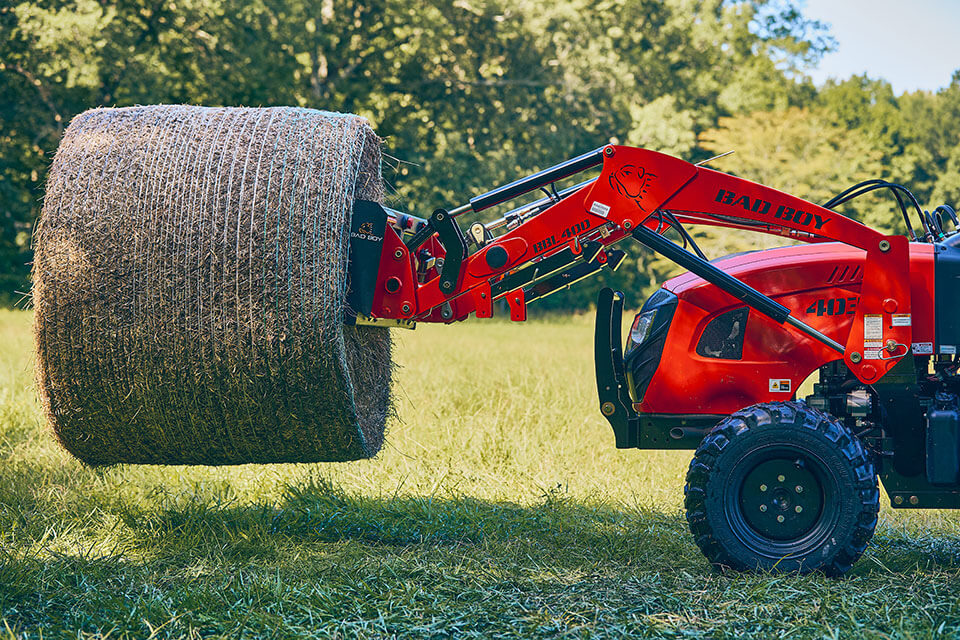

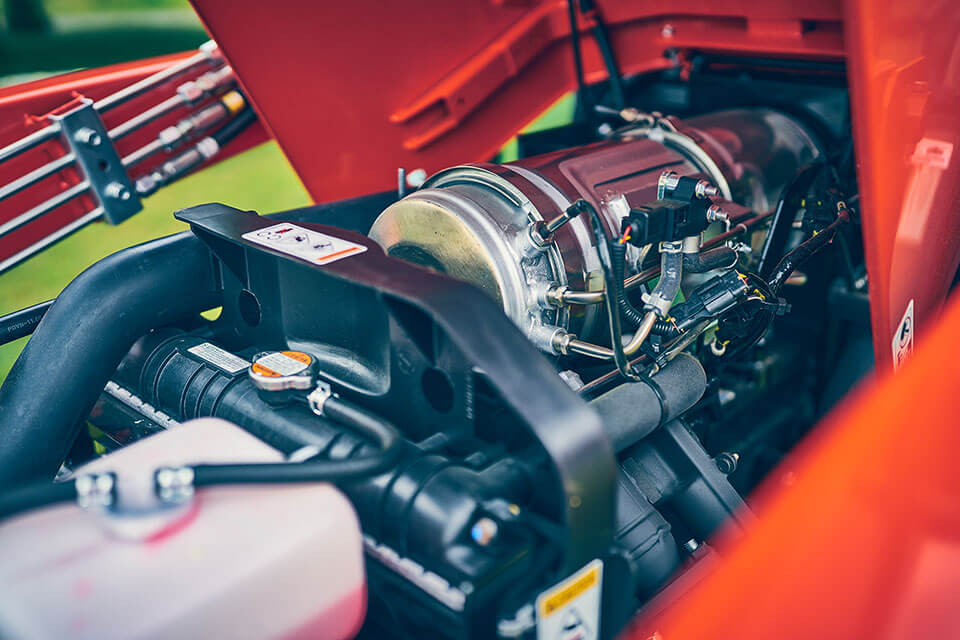

Get More from Compact

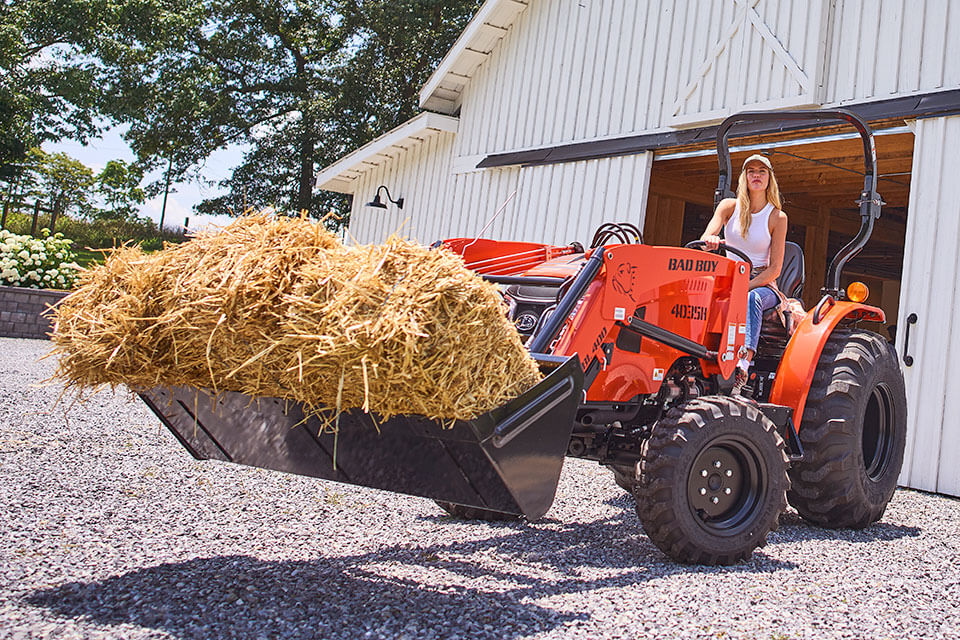

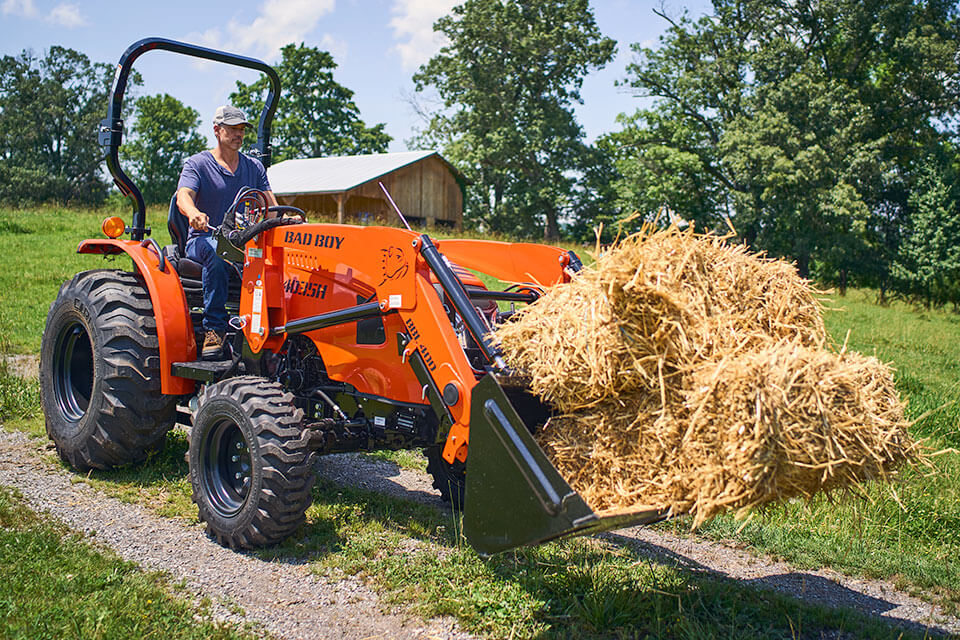

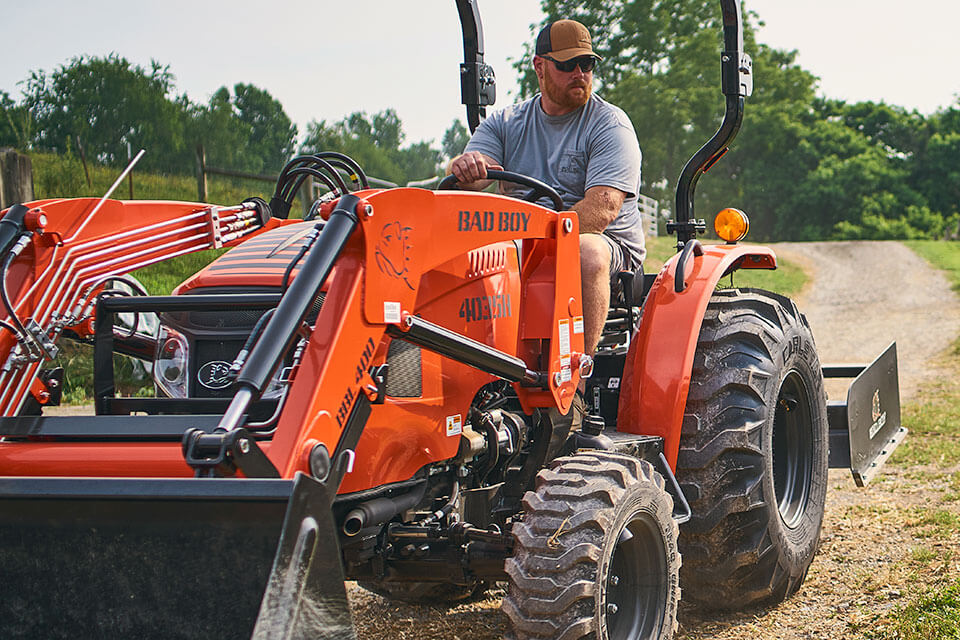

The 4035 Series is the largest tractor in the Bad Boy Tractor stable with 35hp. The eco-friendly "A" Series diesel engine sips fuel while providing maximum performance in speed, power and lifting up to 2,200 lbs.

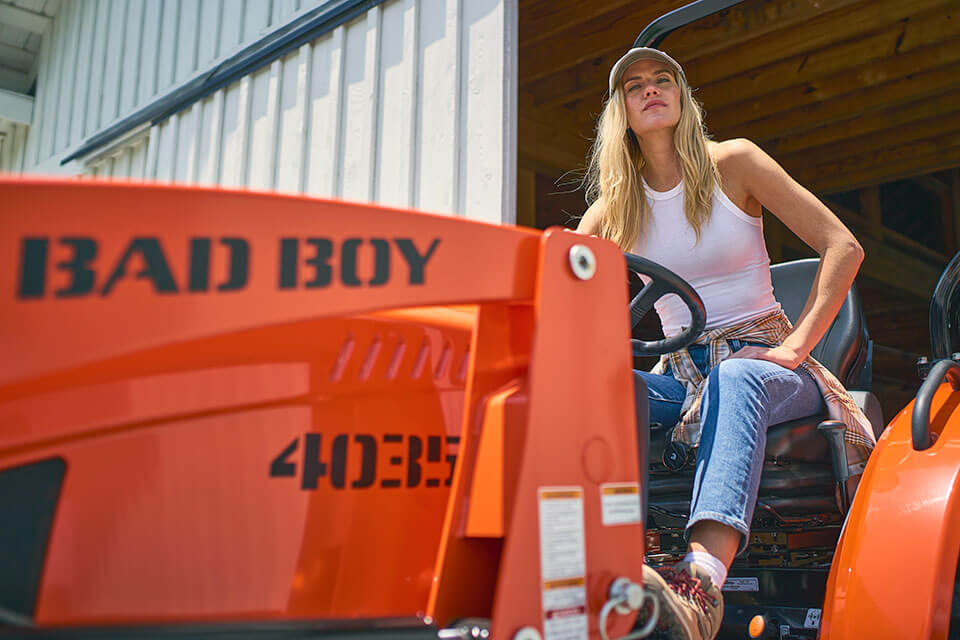

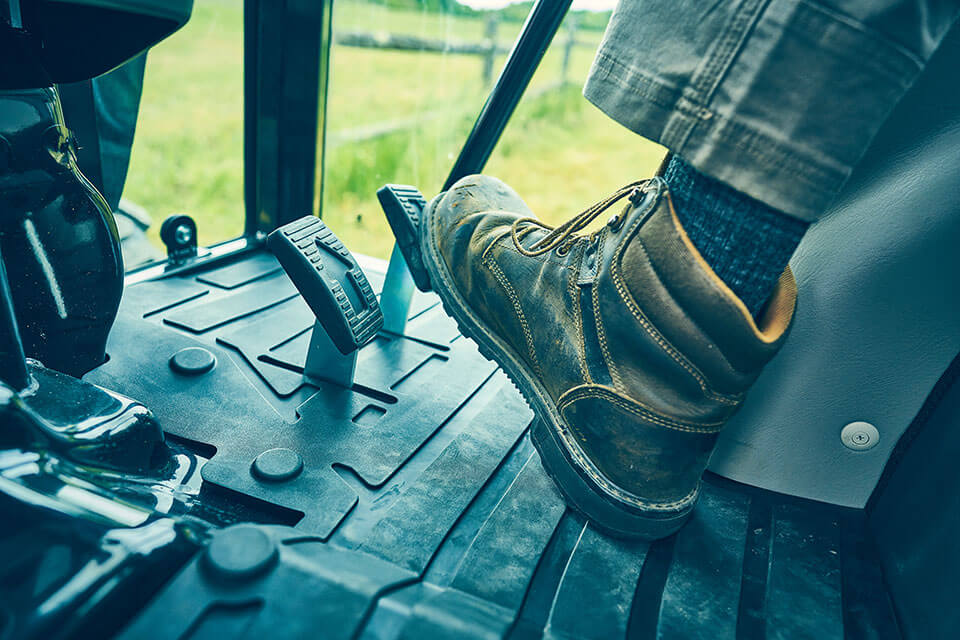

Hydro Max Transmission
Say goodbye to pre-set engine throttle positions. The 4035 Series engine RPM automatically increases or decreases as you move the foot pedals. Hydro Max is quiet, smooth, easy and eco-smart.

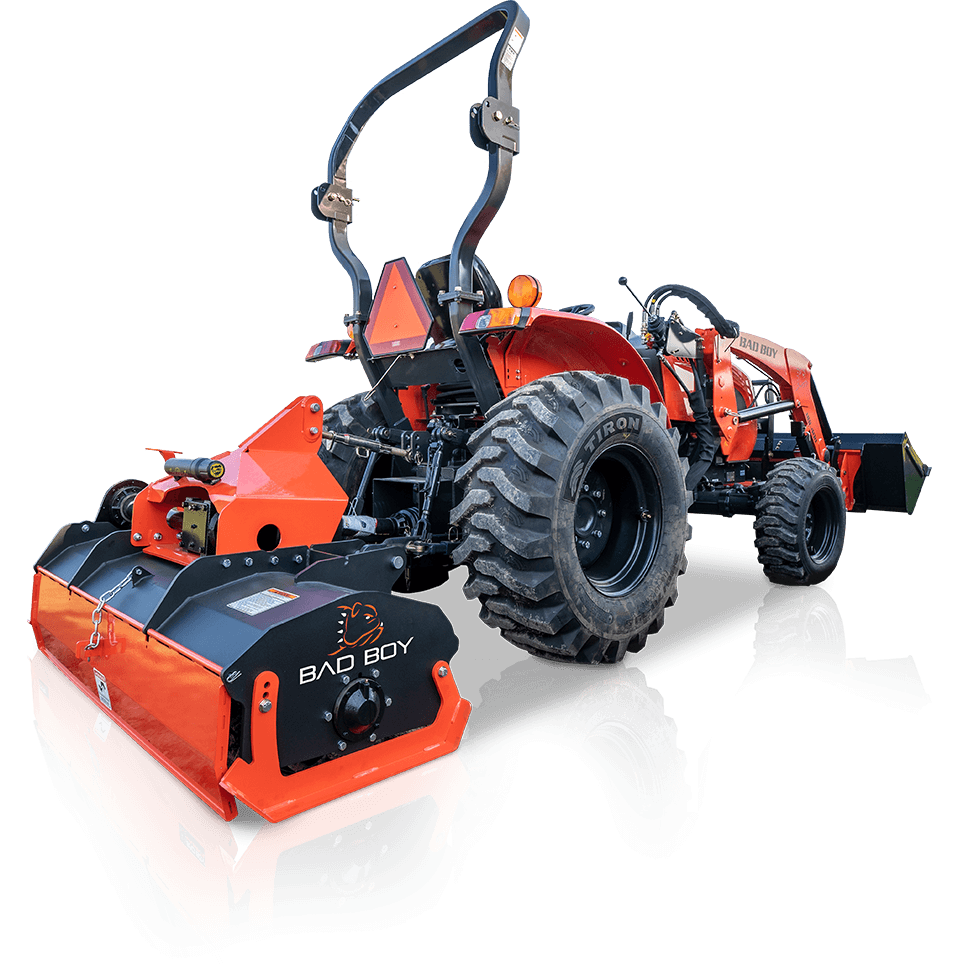

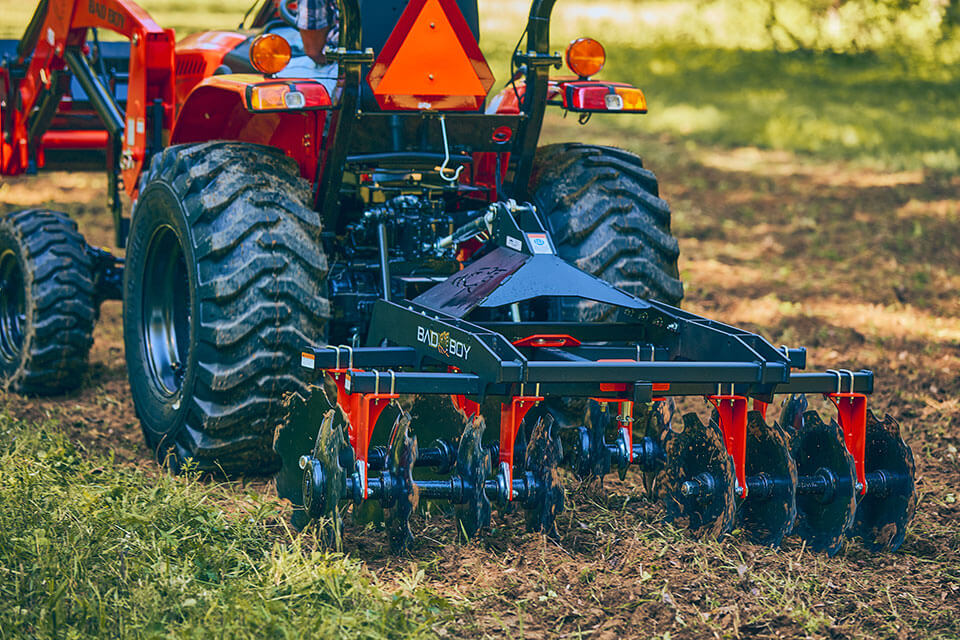

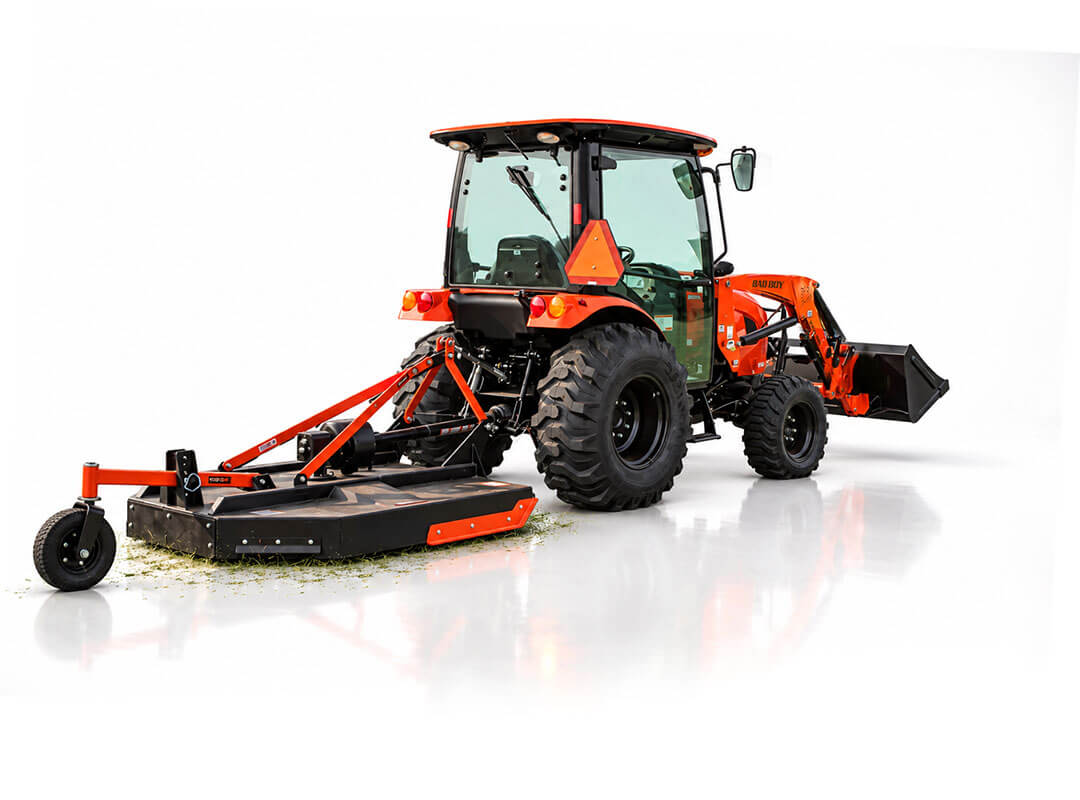

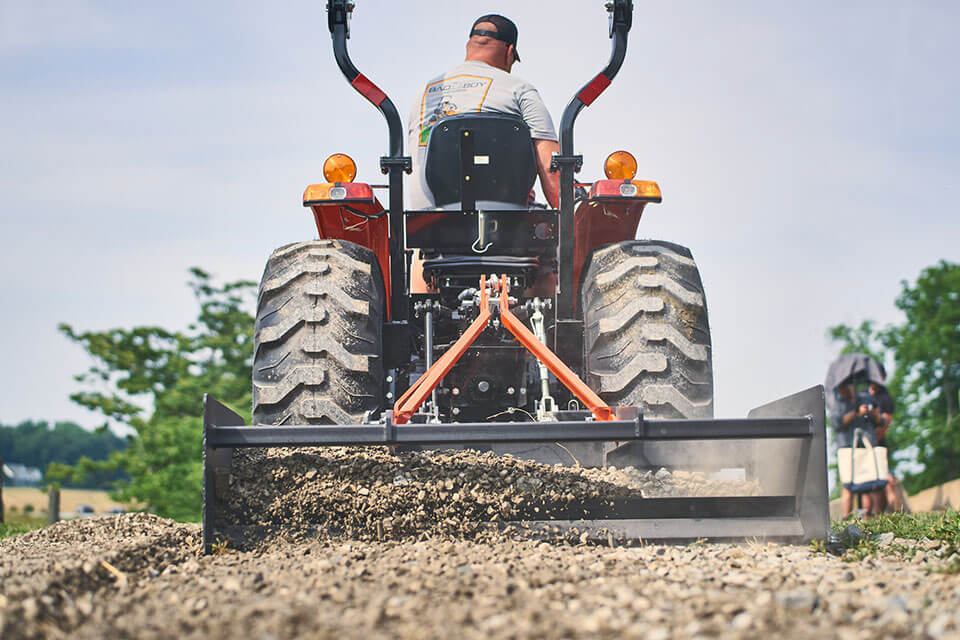

Implements And Cutters
Get the job done with our lineup of implements and cutters. Every Bad Boy Tractor features a tough 3-point hitch and front loader quick attach built for a lifetime of work around the field and farm.
