- Featuring:
- Engine Options: Kawasaki & Vanguard
- Available Deck Sizes: 54", 61" & 72"
- 3/16˝or 7-Gauge All Steel, Formed and Welded Deck with Reinforced Edges
- Optional Dually Reaper® setup or Michelin® X® Tweel® Turf Tires

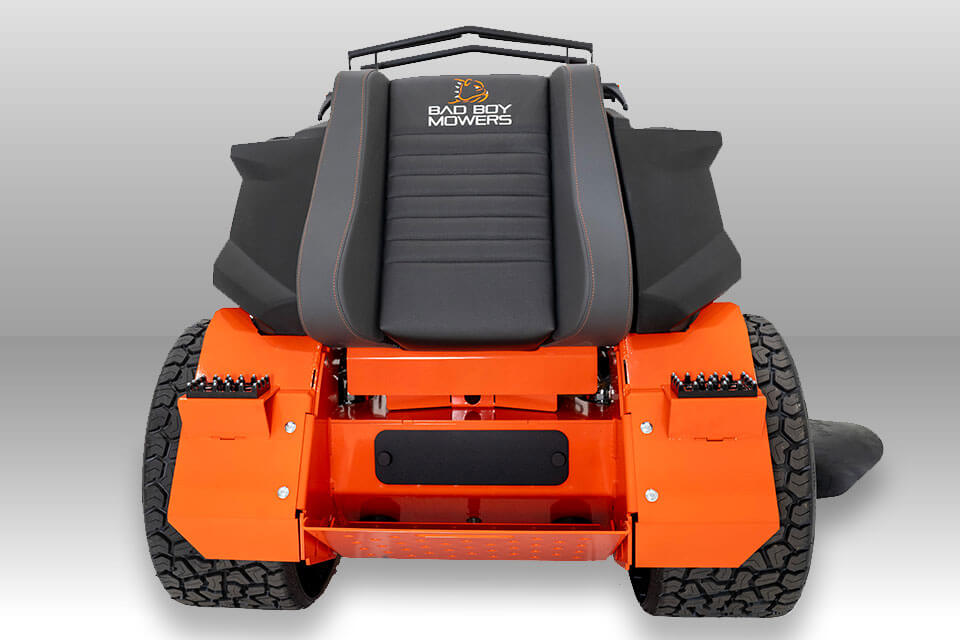

- Upgraded Operator Pad and Fender Support Steps Additional Features
- Upgraded Zero Gravity Battery
- Upgraded R-Series Style Brake
- Curved I-Beam Front Rail
- Quick Access Panel for ease of Maintenance & Serviceability

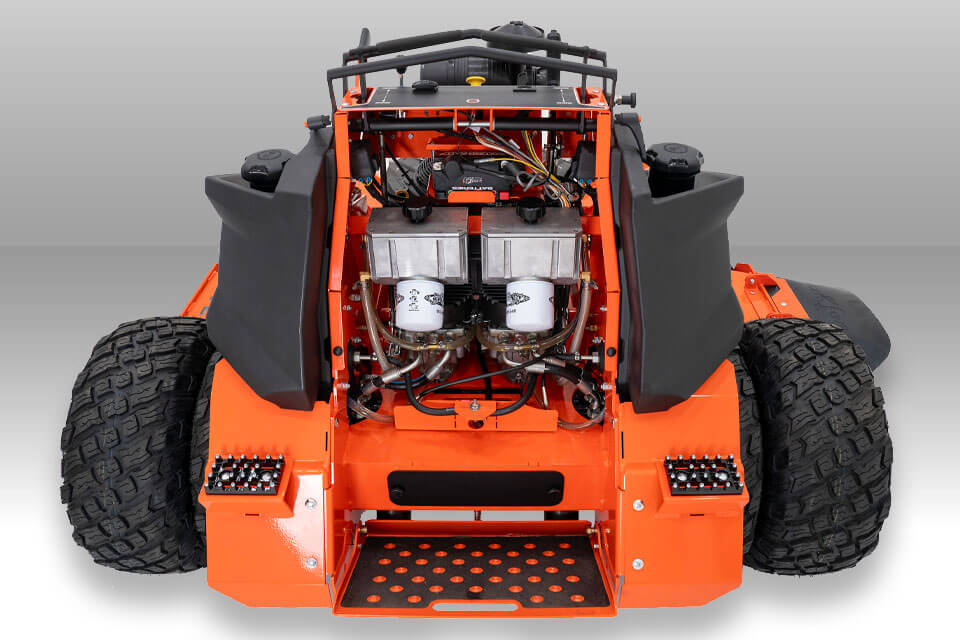

- Dual Hydro-Gear Independent Pumps and Wheels Motors
- 3/8˝ Steel Front Forks and 3 1/2˝ Trail for Smooth Directional Change
- Improved Variable Deck Lift Adjustment
- Removable Quick Access Panel for Maintaining Battery, Control Arm and Hydro-Tanks
- Adjustable Rubber Suspension Riding Platform
- PEER, Maintenance-Free Spindles
- Three-Position Speed Control
- Electric PTO
- No-Flat Front Tires
- Striping Kit
Payments As Low As
$235.66
Per Month*
Revolt X Stand-On Lawn Mower Specs
Download ManualRevolt X Stand-On Engine Options
- Kawasaki
- 54" - 822cc, 31hp Air-Cooled FX781V EVO EFI
- Kawasaki
- 61"/72" - 999cc, 38.5hp Air-Cooled V-Twin FX1000V EFI
- Vanguard
- 61"/72" - 993cc, 40hp Air-Cooled V-Twin EFI
Revolt X Stand-On Dimensions
- Cutting Widths
- 54"/61"/72"
- Weight
- 54" - 1,199 lbs. | 61" - 1,250 lbs. | 72" - 1,318 lbs.
- Height / Length
- 54" - 45.5"/70" | 61" - 45.5"/71.75" | 72" - 45.5"/72.5"
- Chute Up / Chute Down Width
- 54" - 56.5"/68.5" | 61" - 63.1875"/75.25" | 72" - 73.75"/85.875"
Revolt X Stand-On Features
- Transmission
- Dual Hydro-Gear® 16cc Pump; Dual Hydro-Gear® 18ci Wheel Motors
- Deck Thickness
- 3/16" or 7-Gauge Thick Solid Steel
- Cutting Height
- 2" - 5" with Deck Height Control System
- Lift & Height Adjustment
- Manual Lift
- Rear Tires / Front Tires
- 24x12-12 Reaper® Turf Tires or 24x12-12 Michelin® X® Tweel® Turf Tires / 13x6.5-6 Smooth Run Flat
- Fuel
- 13 Gallons, Unleaded Gasoline
- Ground Speed (Forward)
- Up To 13 mph

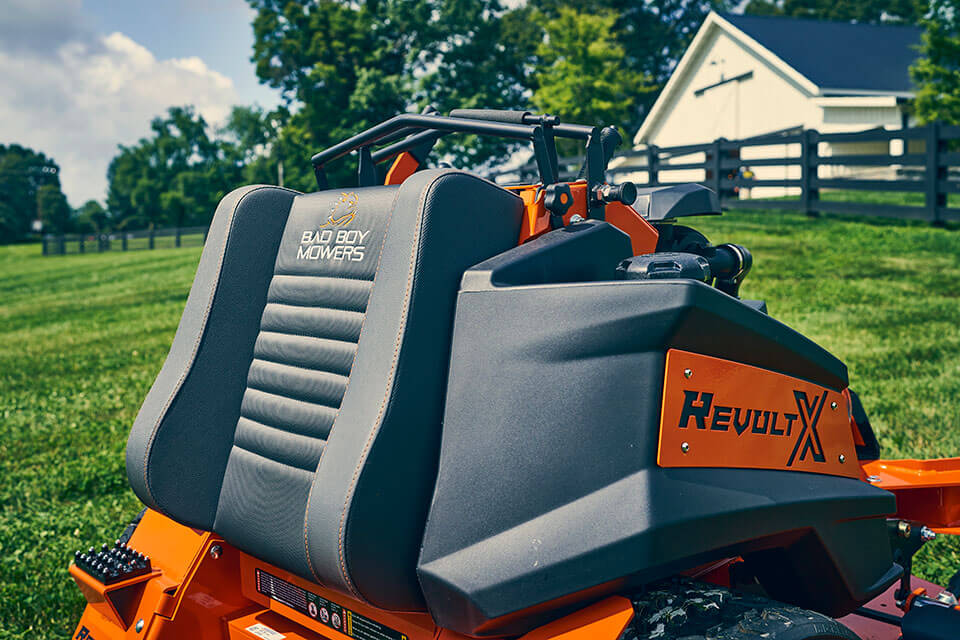

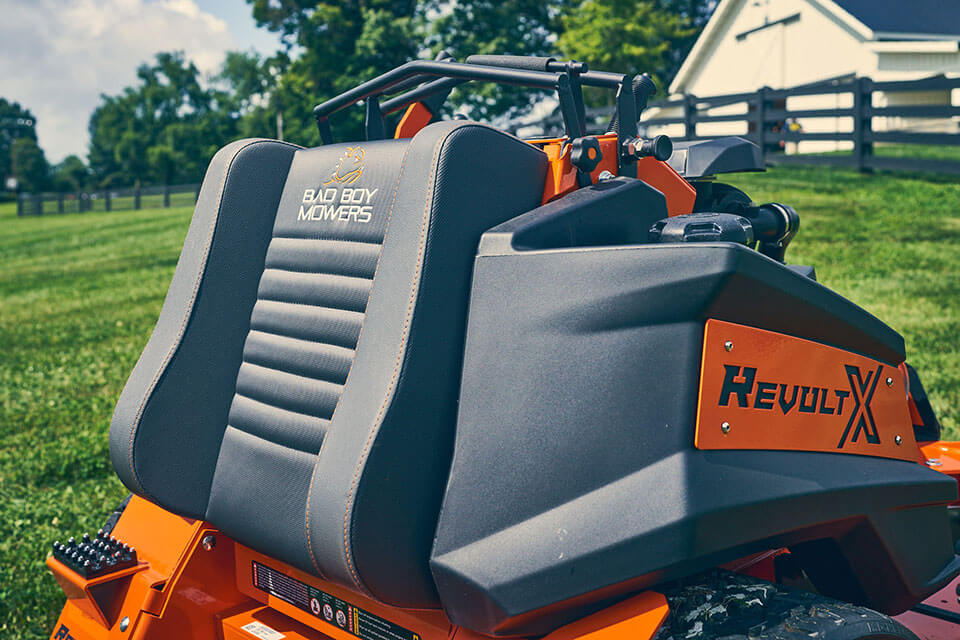

Ride With Ease

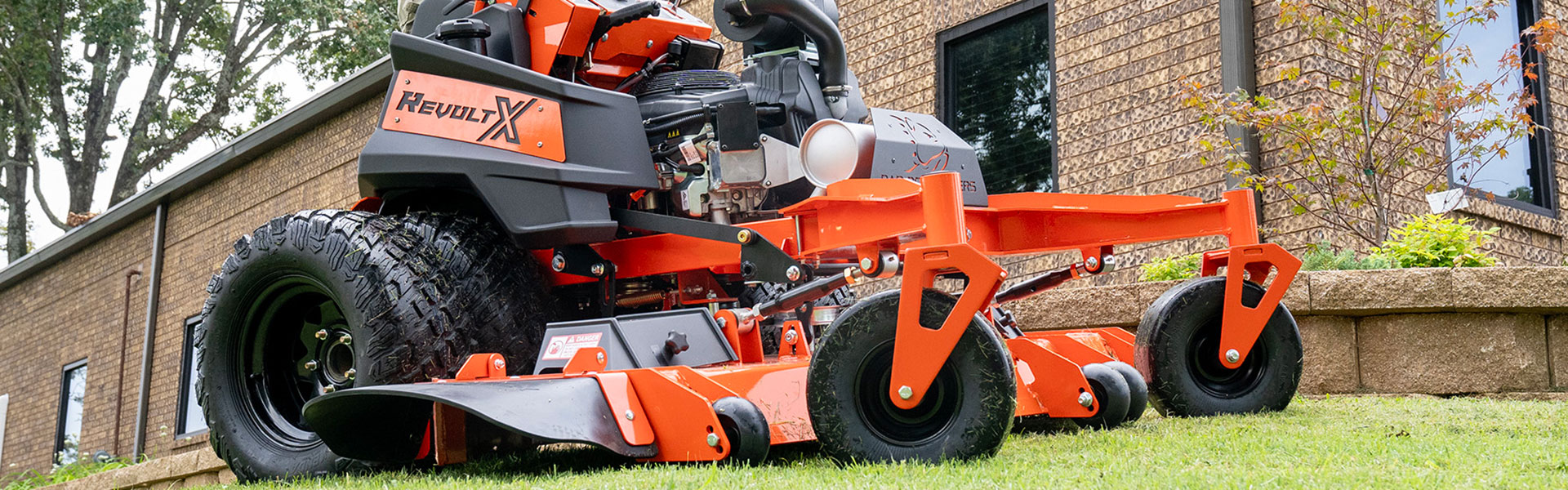

The Revolt X's shorter frame and curved I-Beam front fork give you a lower center of gravity for maximum maneuverability and visibility. With its upgraded operator pad and fender mounted support steps no other stand-on mower can compete with this unbelievably smooth ride.

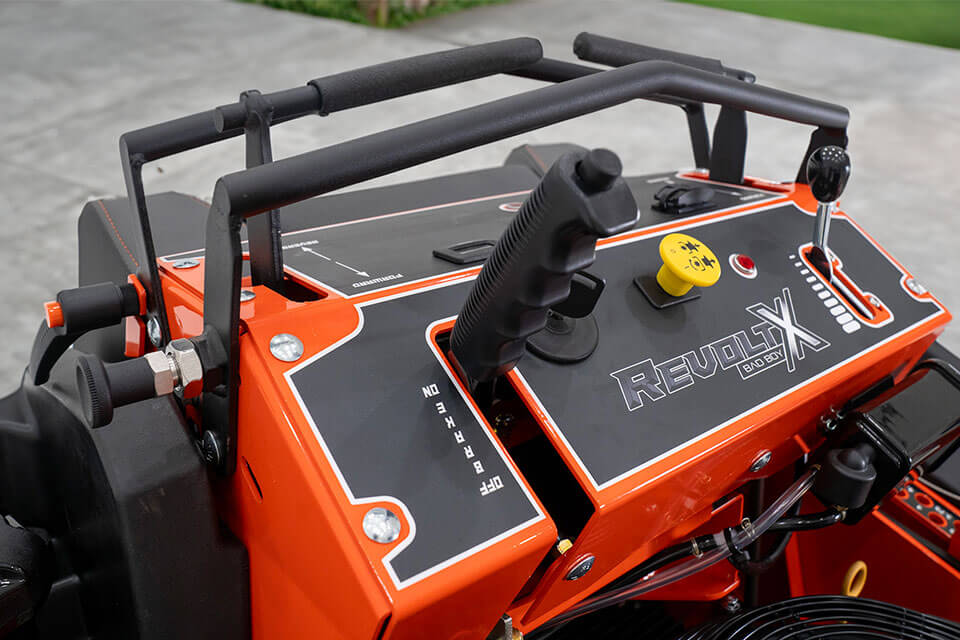

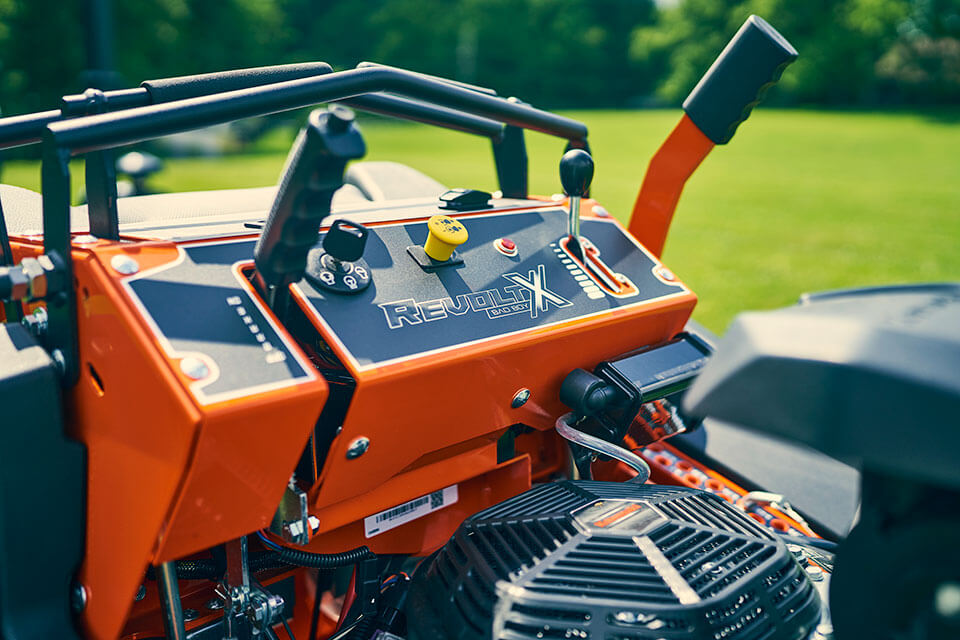

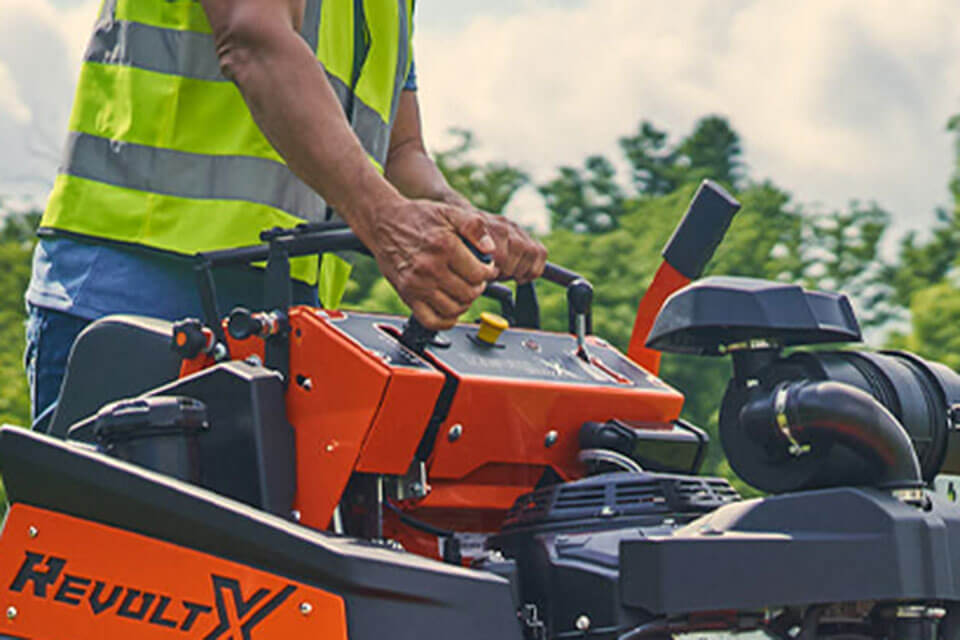

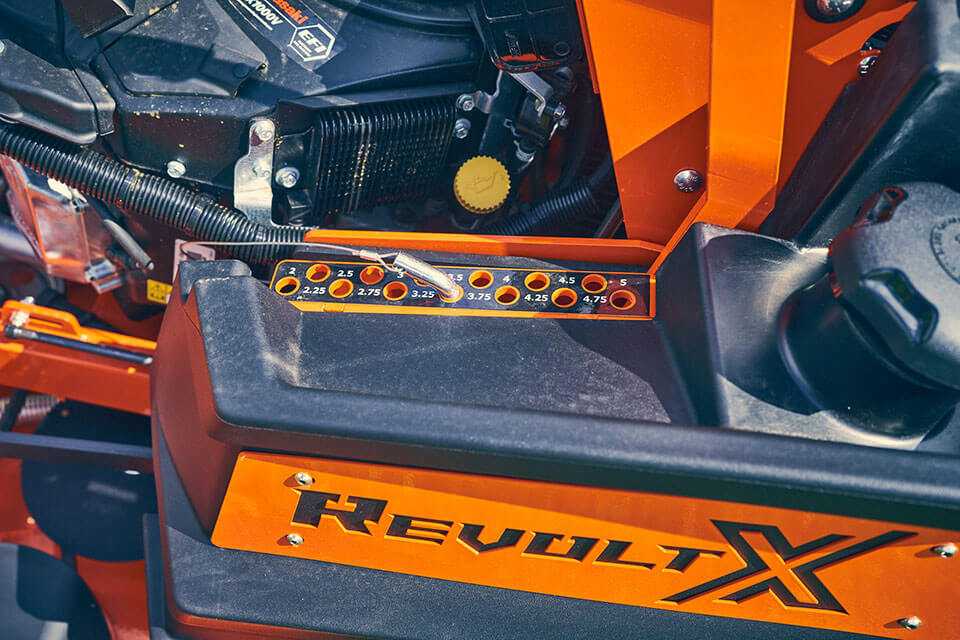

Control is in Your Hands
The one-touch hand operated height of cut control makes on-the-fly adjustments easy. You can quickly switch between the position speeds for smoother operation in the tightest of spaces, and stop on a dime thanks to the upgraded R-Series style brake.

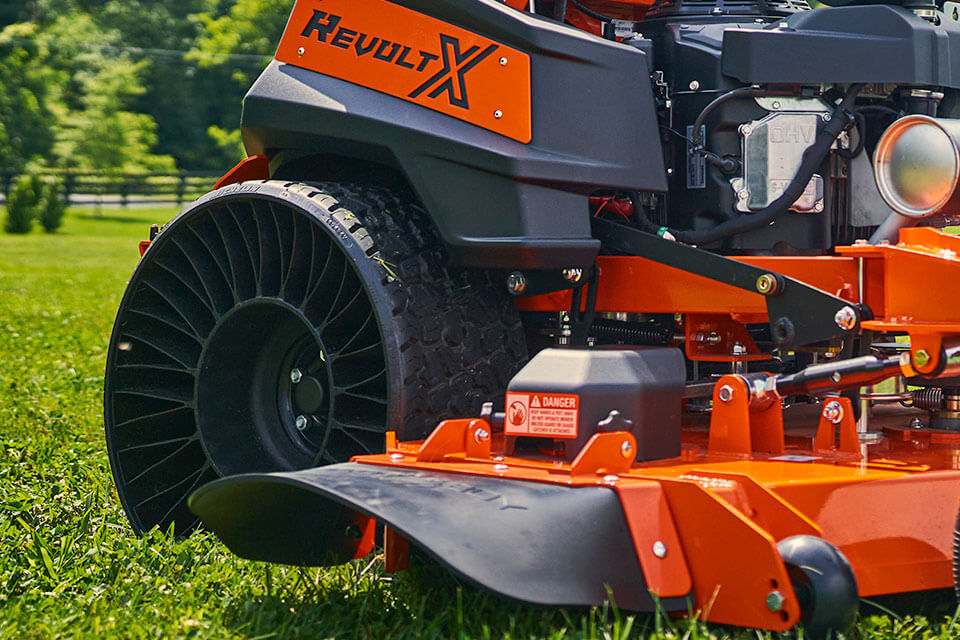

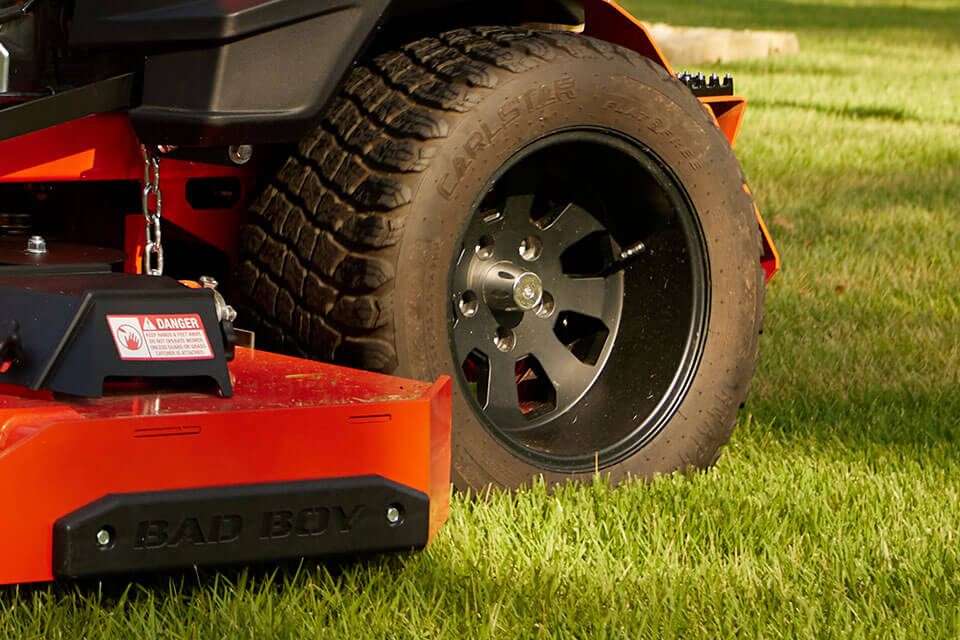

Don't Fear the Reaper®

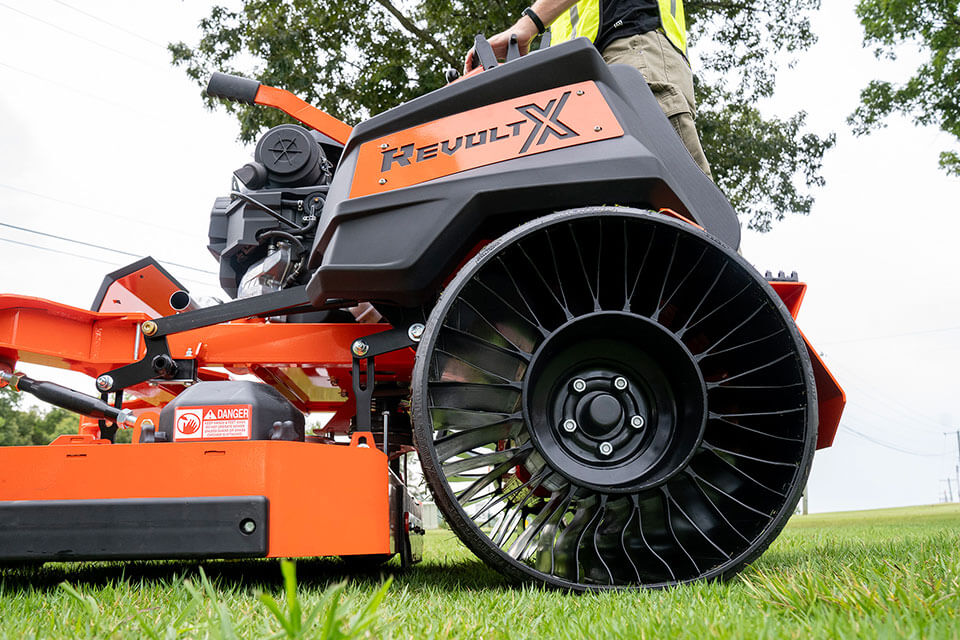

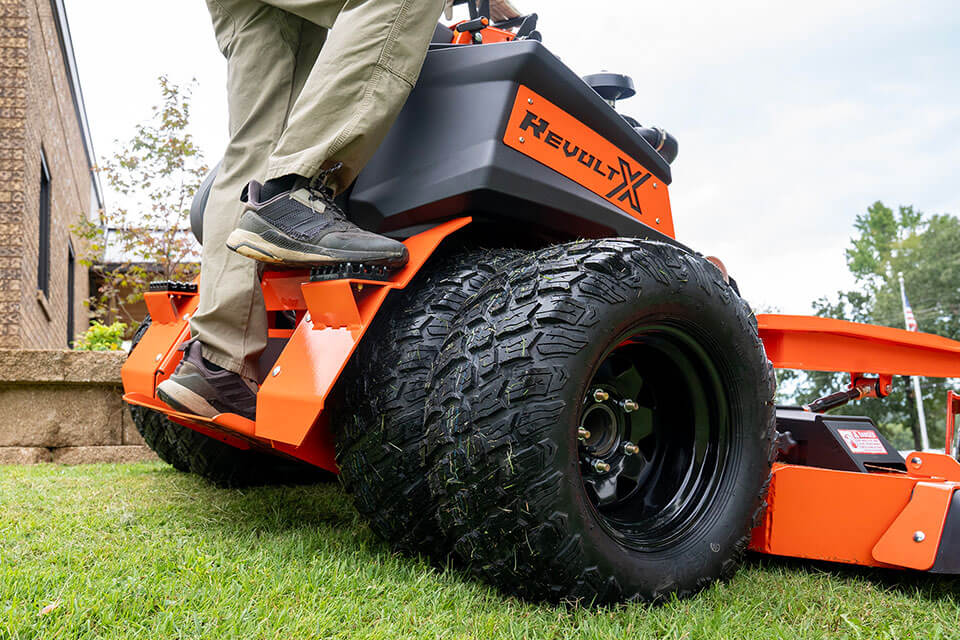

The 23˝ Reaper® tread pattern 7 rear tire provides better hillside traction and stability. Optional Dually Reaper® Turf Tire setup or Michelin® X® Tweel® Turf Tires give you the edge you need to get the job done no matter the terrain.

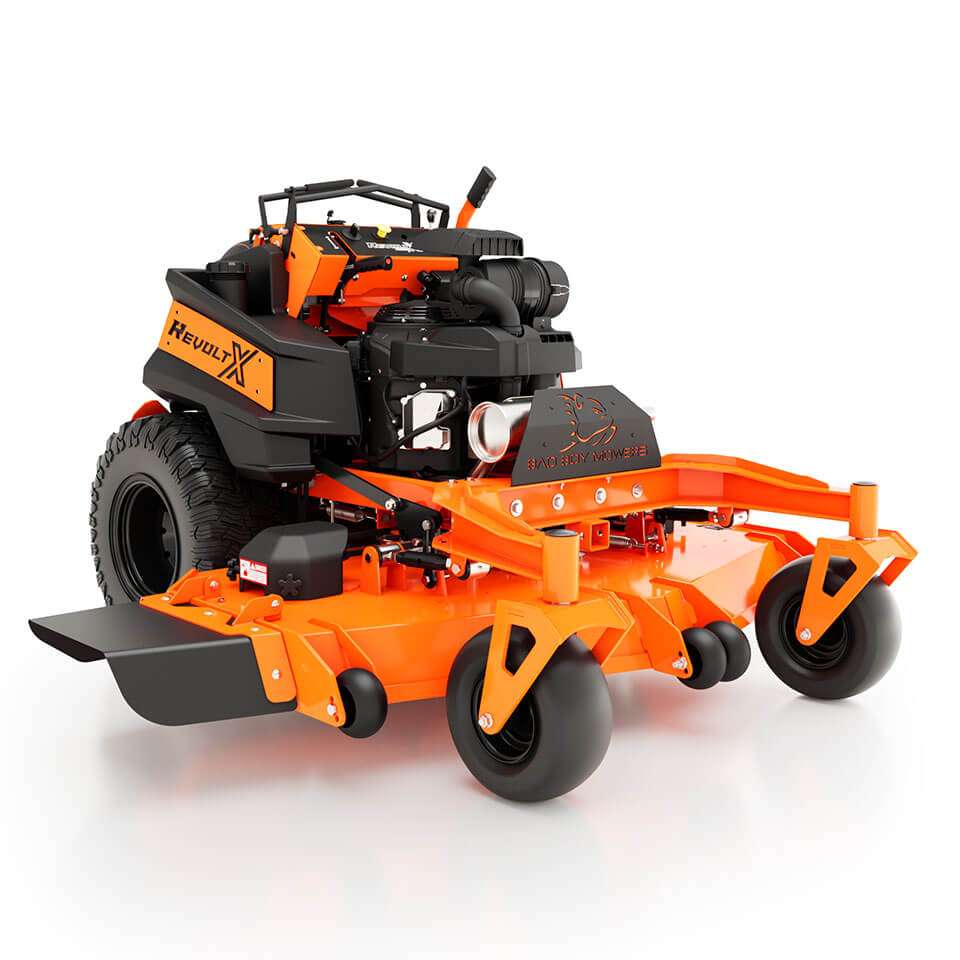

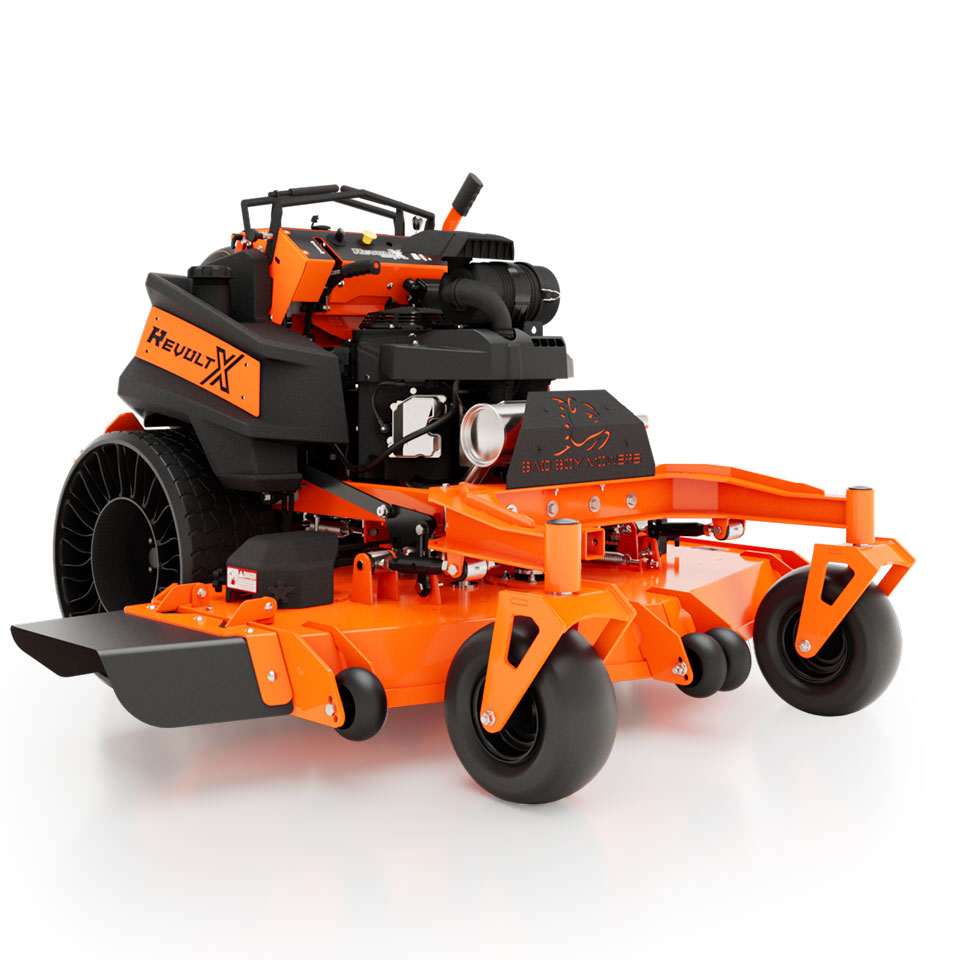

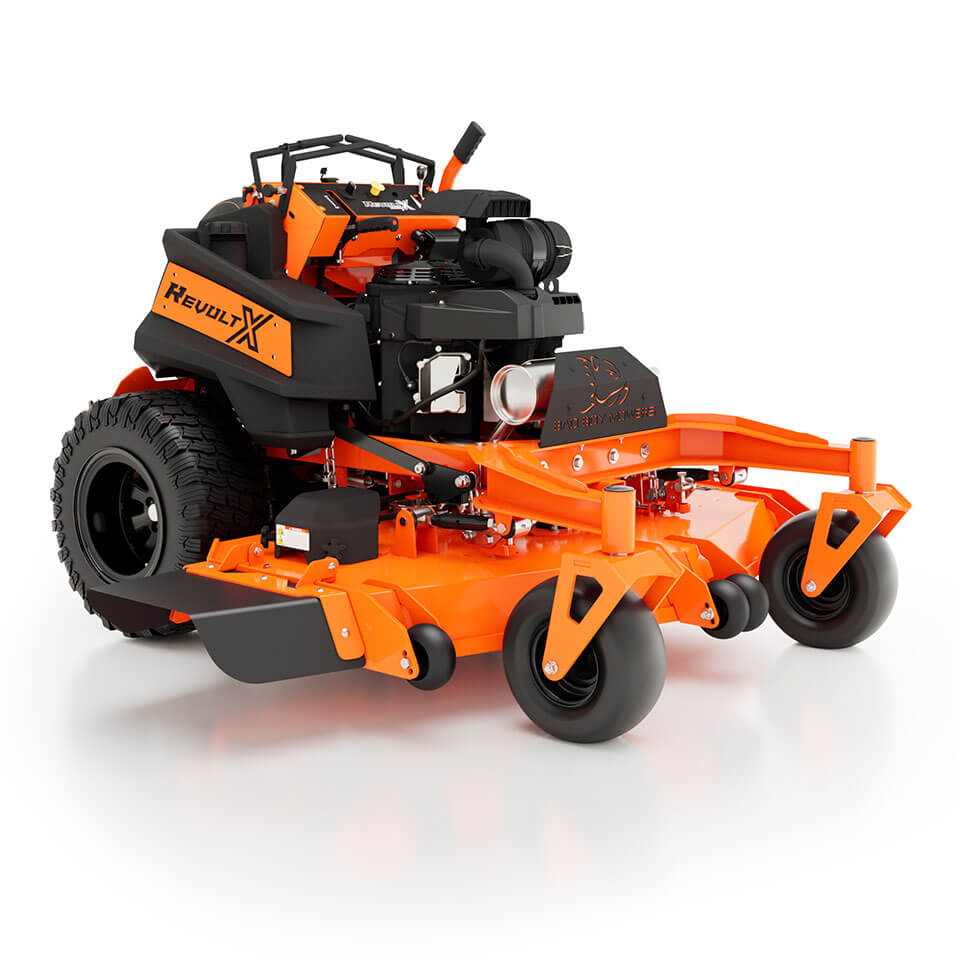

Build Your Bad Boy
Configure your own Revolt Stand-On with custom options and accessories.
